Astoria Plus4YouTS - Page 25

25
Technical manual
ENGLISH
Model V M L XL
Connection
type
3/8" 3/8" 3/8" 3/8"
Water supply pressure
min.-max (bar)
2-8 2-8 2-8 2-8
Water temperature
min.-max. (°C)
4-30 4-30 4-30 4-30
Ambient temperature
min.-max. (°C)
4-40 4-40 4-40 4-40
Total height (A)
without bracket (mm)
420 475 500 500
Total height (B)
with the bracket (mm)
445 500 530 530
Connection (C)
height (mm)
370 425 450 450
Distance from the oor
(D) (mm)
65 65 65 65
Filter head width
(E) (mm)
125 125 125 125
Filter cartridge
diameter (F) (mm)
115 130 145 145
Weight (kg)
(empty/with water)
2.1/3.2 2.4/4.2 3.4/5.9 3.8/6.0

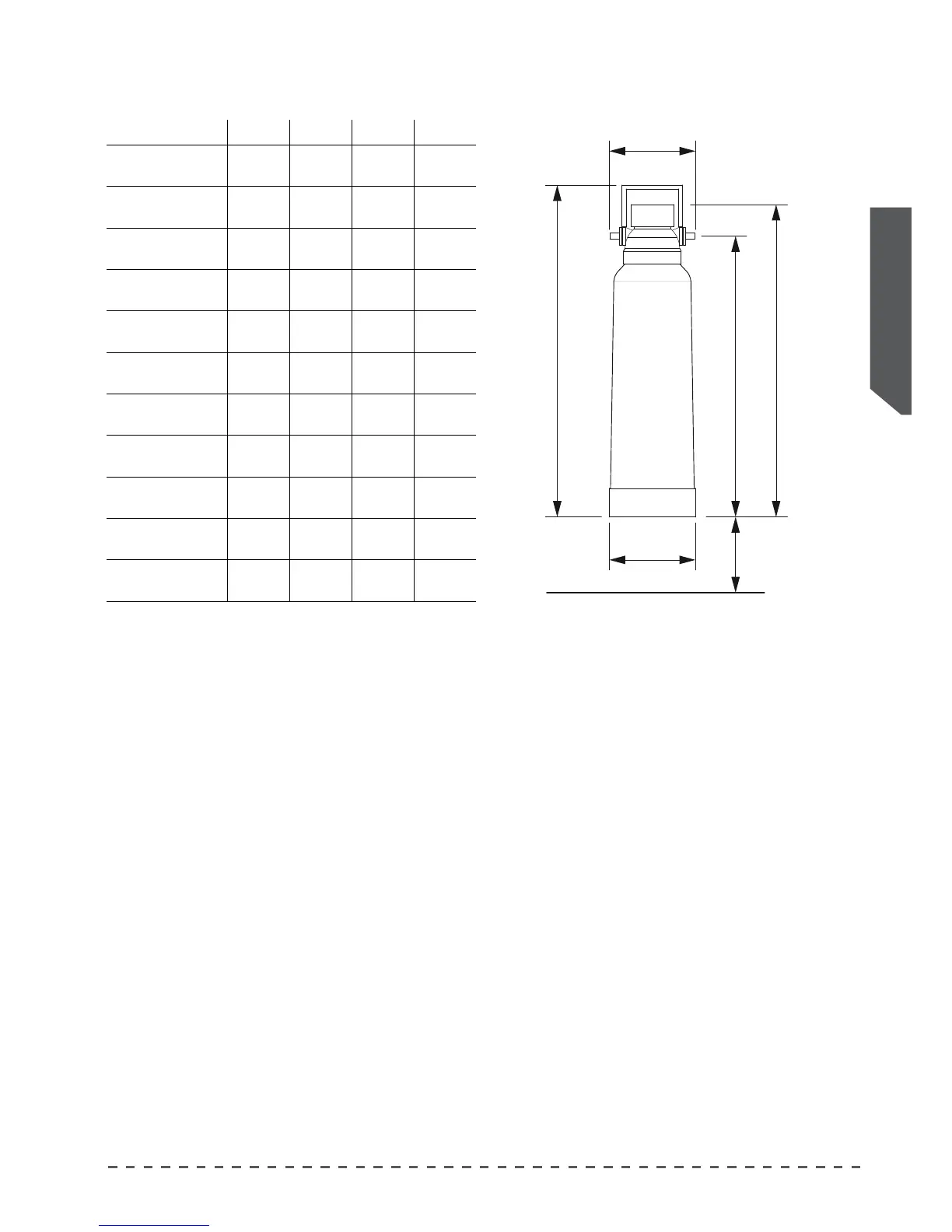

4.14.4 Specications
E
F
B
C
D
A
