52
GigaX3112 Series Layer 3 Managed Switch

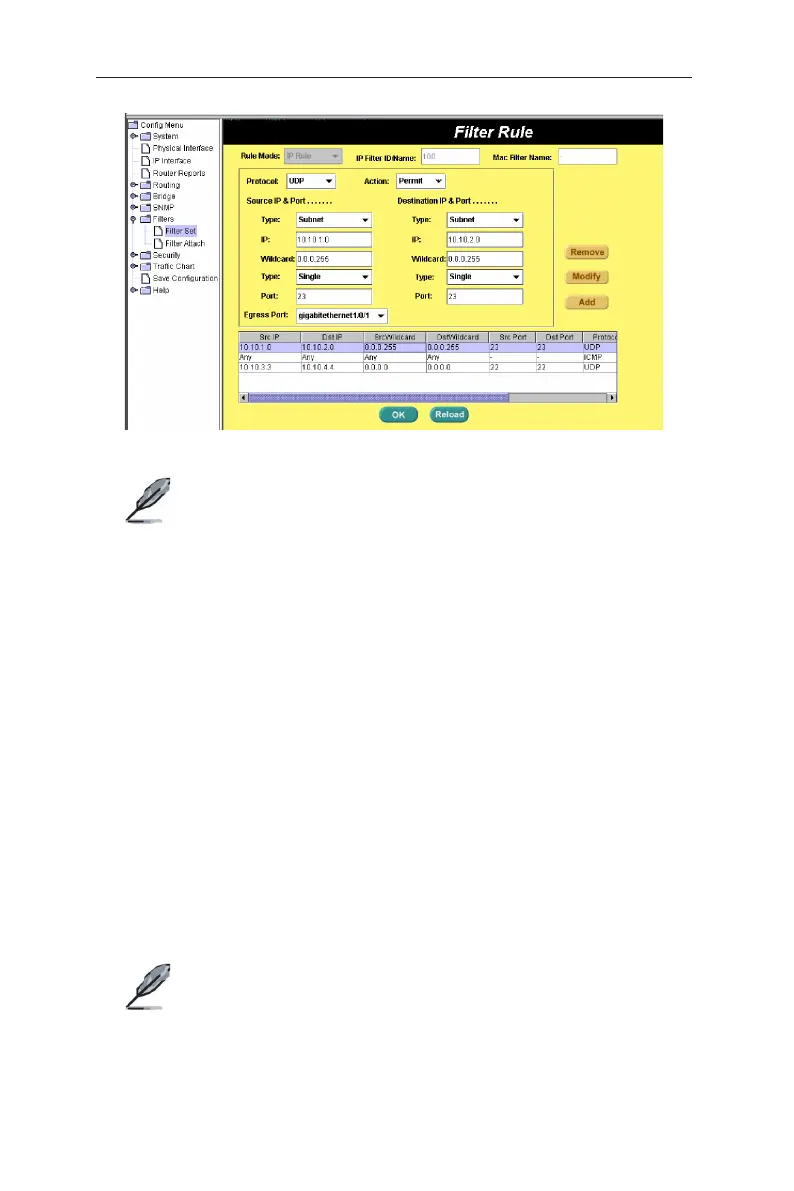

Figure 58. Filter rule in IP mode
Two examples tell us about the how of IP provisioning:
1. Assign a dedicated IP
Type = subnet IP = 10.10.1.2 Wildcard = 0.0.0.0
2. Assign a subnet (a group of IP)
Type = subnet IP = 10.10.1.0 Wildcard = 0.0.0.255
4.8.2 Filter attach
A filter set is idle if you did not attach it to any ingress port. Use the Filter Attach
page to attach a filter set to ingress ports.
Click
OK
to save the configuration. To make the configuration effective, go to
the “Save Configuration” page, then click
Save
, or click on
Reload
to refresh the
page.
To attach a filter set to ports:
Attach to all ports: the filter set applies to all the ports of the system.
Attach to certain ports: you can specify the ingress ports to be applied.
Detach from all ports: remove all the filters from the attached ports.
You may not detach certain ports after issuing an “Attach All”
command. If you wish to detach ports, use the “Detach All”
command.
