GigaX3112 Series Layer 3 Managed Switch

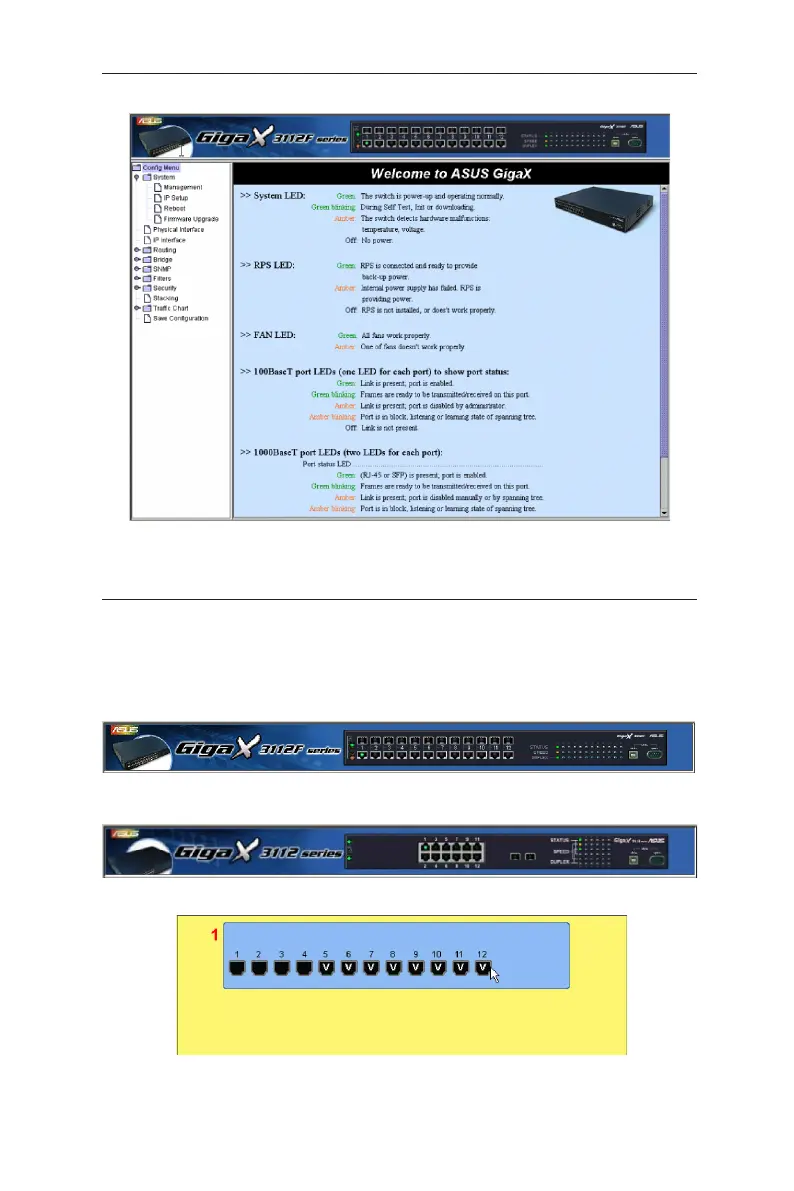

Figure 9. Home page (GigaX 3112F)
4.2 Functional layout
Typical web page consists of three separate frames. The top frame has a switch
logo and front panel as shown in Figures 10 and 11. This frame remains on the
top of the browser window all the times and updates the LED status periodically.
See Table 4 for the LED definitions. See Table 5 for the color status description.
Figure 10. Top frame (GigaX 3112F)
Figure 11. Top frame (GigaX 3112)
Figure 12. Port Selection Panel (GigaX 3112F)
