Ch. 12. Cantilever Holder Guide Sec. 12.2. Disassembly
2.

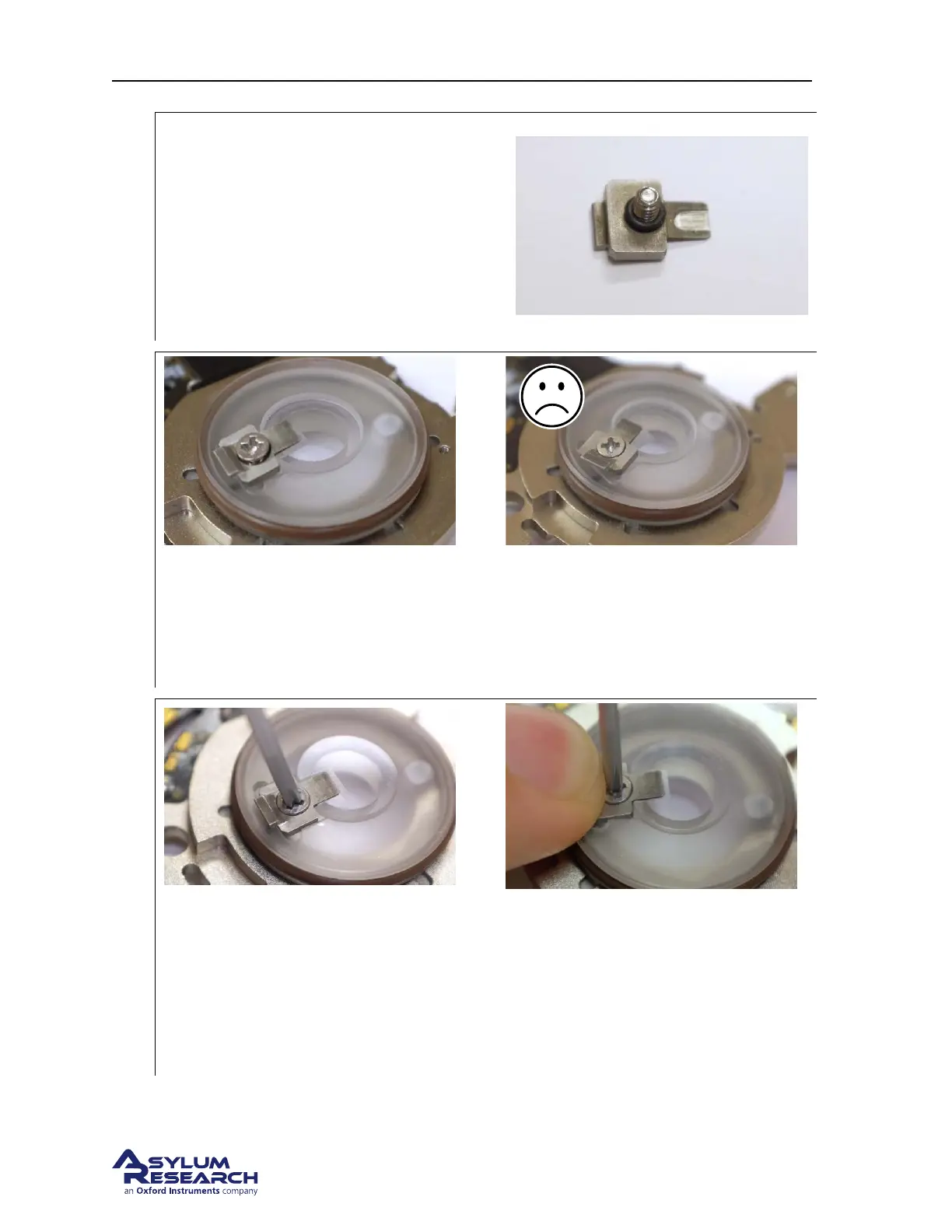

Prepare the clip:
• Put the screw, clip, and O-ring together
as shown.
• Screw only a few turns into the
threaded hole in the glass of the
cantilever holder.
• DO NOT TIGHTEN YET!
3.
Check clip rotation:
• Rotate the clil so it does not overhang any of the glass cutout’s edges.
• Press down on the clip so it settles down into the cutout area of the glass.
4.
Tighten the screw:
• Using a small phillips screwdriver, tighten the screw until you feel some resistance.
This will be the O-ring compressing.
• If the clip still has a tendency to turn around during tightening of the screw, consider
holding the clip pressed down (right photo) so it seats properly in the cutout feature.
DRAFT
Page 144
