Ch. 1. System Overview
1. System Overview
CHAPTER REV. 1659, DATED 10/07/2013, 22:54. USER GUIDE REV. 1714, DATED 10/25/2013, 20:36.
Chapter Contents
1.1 Basic Cypher SPM Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.2 Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.3 The Igor Pro Software Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.1. Basic Cypher SPM Hardware
Before starting the tutorial, the user should be familiar with the names and functionality of each of the
components of the Cypher. Don’t worry if you don’t understand everything in this section; the main goal
is just to get familiar with the basic purpose of each component of Cypher.
Figure 1.1 on page 3 shows
a typical set-up for the Cypher SPM. The top-level components are the computer, the ARC2 controller,
and the microscope itself.

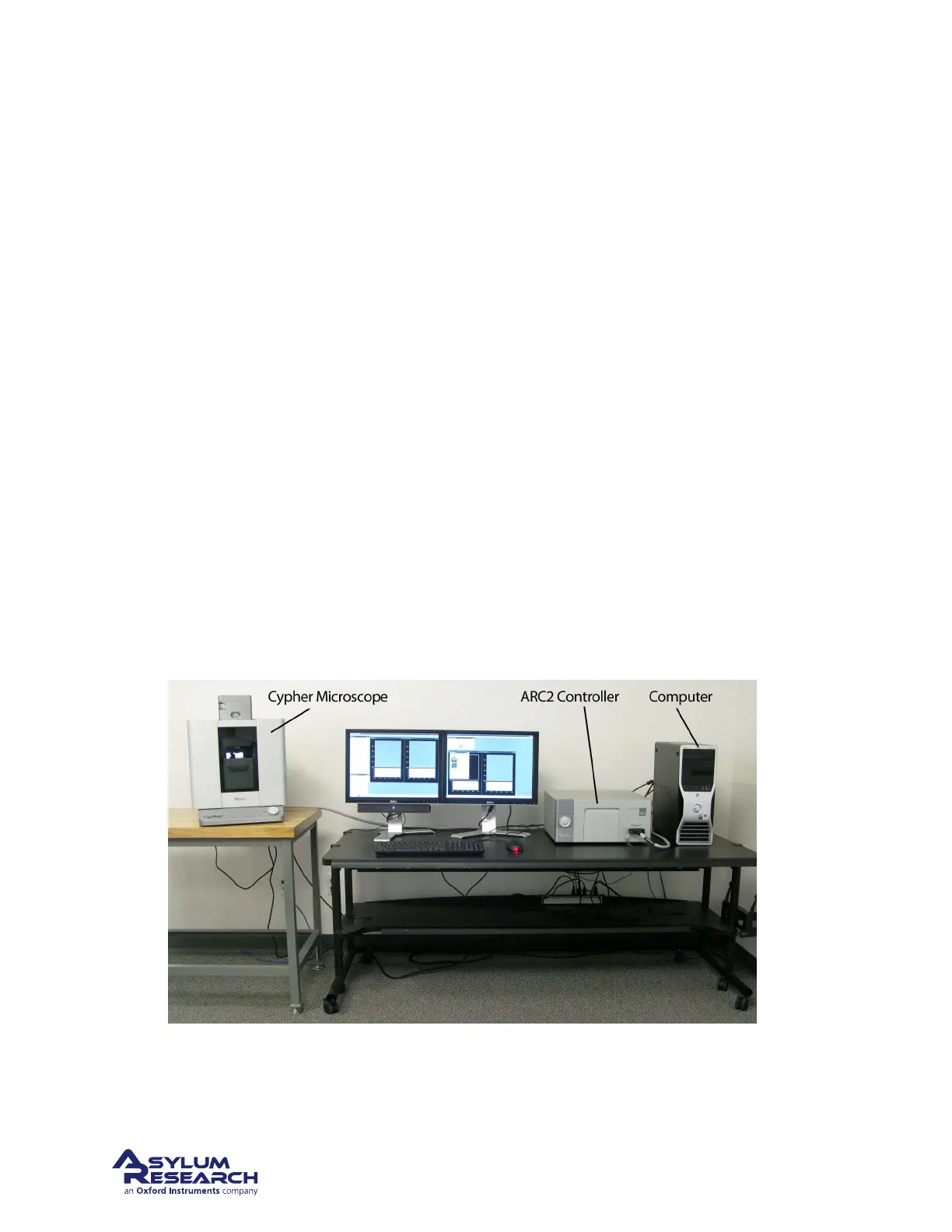

Figure 1.1.: Ideally the Cypher SPM is set up as shown, with the controller and computer on one table
and the microscope on its own table. The air temperature controller (ATC) is not shown here. Please see
Chapter 19 on page 203 for more information.
