Ch. 18. Laser Sources
18. Light Tubes (Laser Sources)
CHAPTER REV. 1672, DATED 10/16/2013, 23:04. USER GUIDE REV. 1714, DATED 10/25/2013, 20:36.
Chapter Contents
18.1 Types of Light Tubes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
18.2 Tutorial: Light Tube Exchange . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
18.3 ’Spot On’ calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
18.3.1 Readjusting the ’Spot On’ calibration. . . . . . . . . . . . . . . . . . . . . . . . 195
18.4 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
18.4.1 Accidentally Disconnected Light Tube Cable . . . . . . . . . . . . . . . . . . . 198
18.4.1.1 Removing the Enclosure Top cover . . . . . . . . . . . . . . . . . . 198
18.4.1.2 Plugging the Light Tube Cable Back in . . . . . . . . . . . . . . . . 201
18.4.1.3 Installing the Enclosure Cover . . . . . . . . . . . . . . . . . . . . . 201
The following instructions describe exchanging light tube assembly in the Cypher AFM. The light tube
can be exchanged without disassembly through the front of the instrument with a little familiarity of the
process. For the reason of clarity the instructions describe exchanging the light tube by disassembling
the enclosure followed by the process done through the front of the instrument.

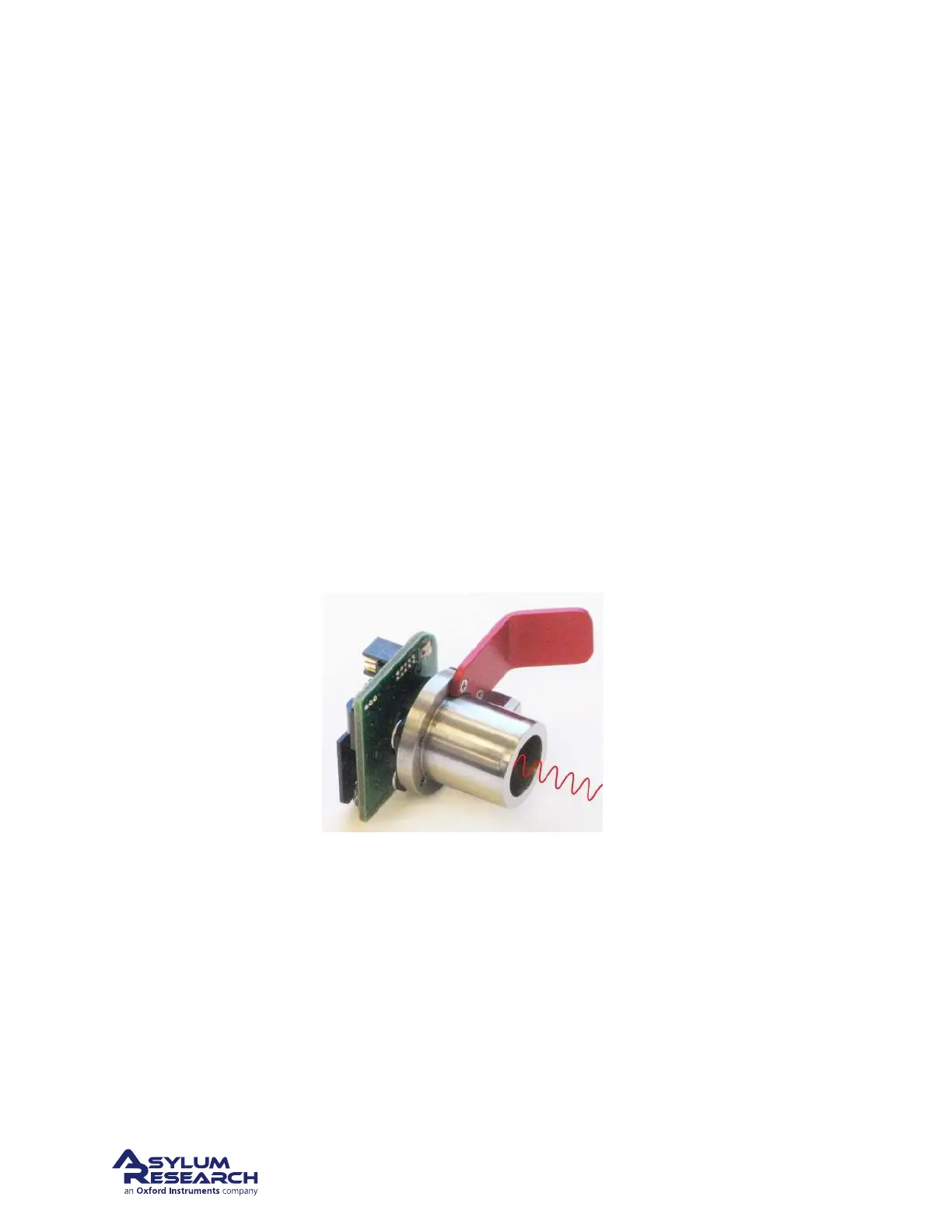

18.1. Types of Light Tubes and How to Identify Them
The Cypher can be equipped with interchangeable light sources. Some of the nomenclature:
Laser Diodes: Best all around choice for AFM imaging. Lower noise for imaging techniques, but
with some interference effects which can lead to background oscillations when performing force curve
measurements.
BETA
Page 190
