Ch. 19. Air Temperature Controller Sec. 19.8. Using the Remote Temperature Sensor

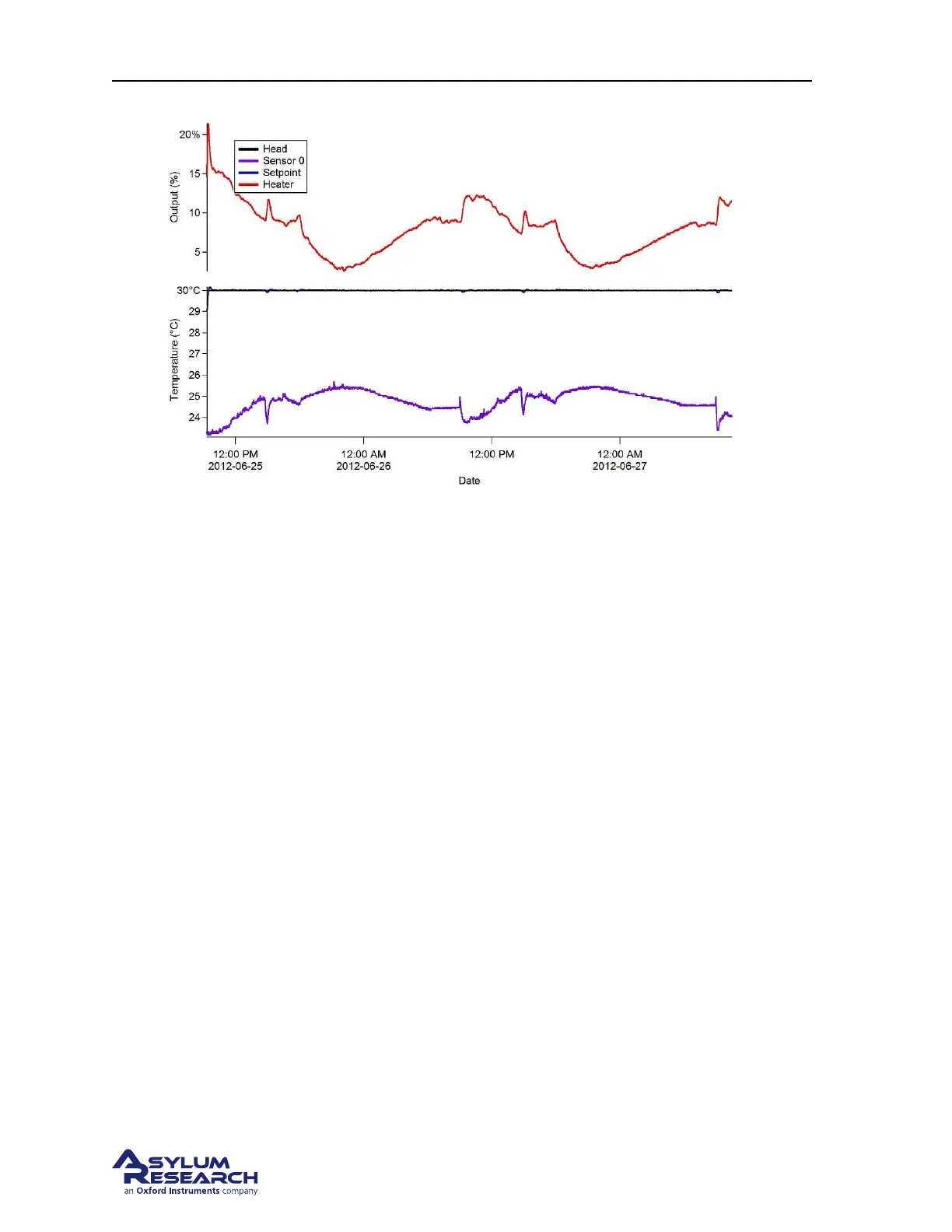

Figure 19.4.: Sample Data Log
This is an example of the ATC running with the Target Temperature set to 30 degrees C.
Notice:
• The head temperature is now equal to the target temperature.
• The heater power is between 2 and 15%. The ATC fan is still at 100% so air flow is constant.
Note This is an example where the Target temperature is set high enough above the room temperature
to allow the head temperature to remain constant.
19.8. Using the Remote Temperature Sensor
19.8.1. Inserting the Sensor Inside the Cypher Enclosure
Step 4 on page 209 already suggested using the remote sensor for measuring room temperature, but
there are other uses.
The Remote Temperature Sensor can be used to monitor the temperature of a particular location inside
the Cypher enclosure and can even be used as a feedback source for the ATC.
1. Turn off the power to the ARC2 controller and the ATC box.
BETA
Page 219
