Ch. 18. Laser Sources Sec. 18.2. Tutorial: Light Tube Exchange
4.

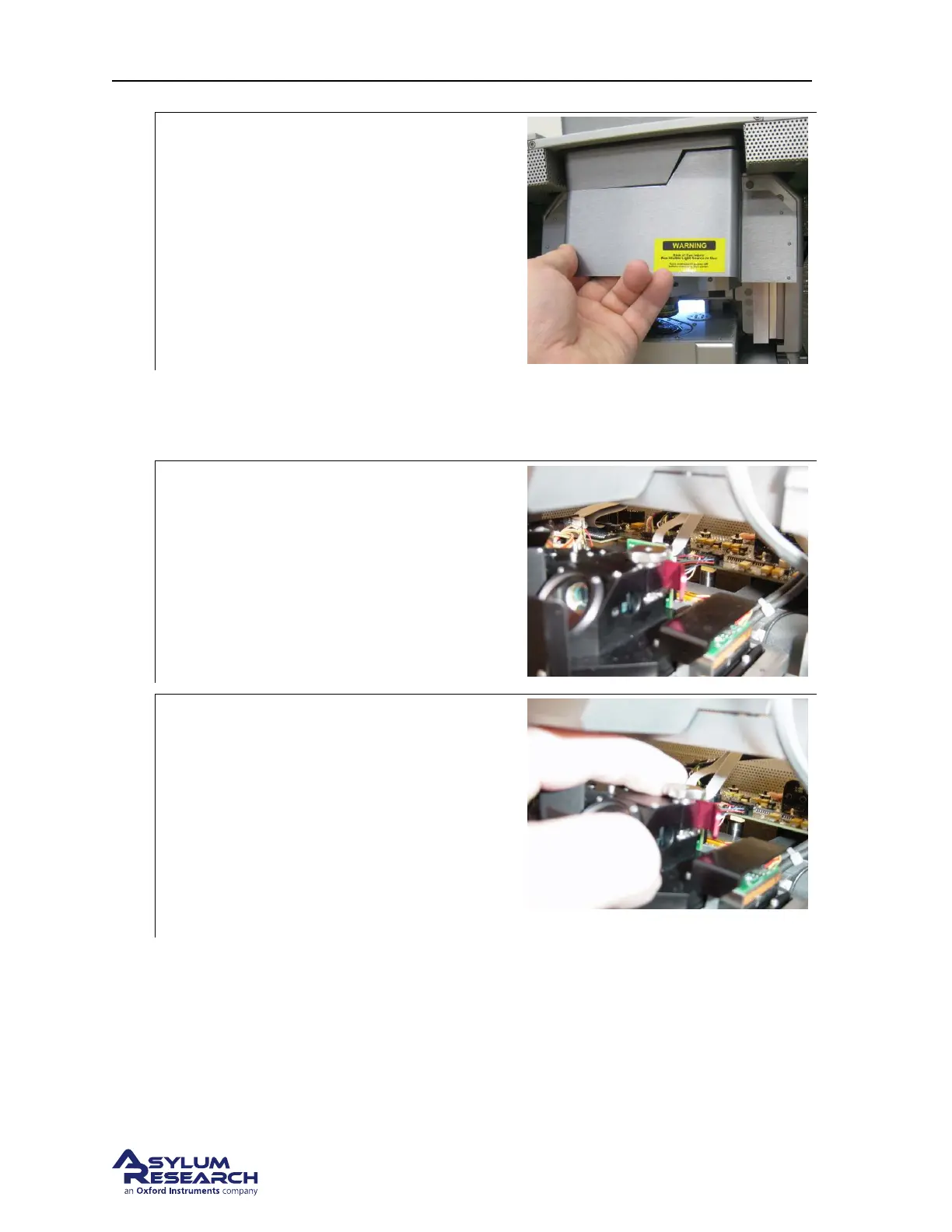

Remove optics cover:
• Grip the cover at its lower edge and
gently pull forward. It is attached
magnetically and will detach of
smoothly.
Note This will expose the head assembly and
allow access to the light tube from the front.
5. Locate the light tube container for the one you are removing now. You will need to store it
properly as soon as it is removed from the SPM.
6. Locate the light tube (hopefully in its container) which you will be installing.
7.
Locate the light tube:
• Look in the area where you just
removed the optics cover.
• The light tube is easily identified by its
red handle.
• Above that note the metallic silver cross
shaped clamping knob.
8.
Loosen the clamp:
• Turn the clamping knob about ½ turn
counter-clockwise or until it feels loose.
Redo photo.
BETA
Page 193
