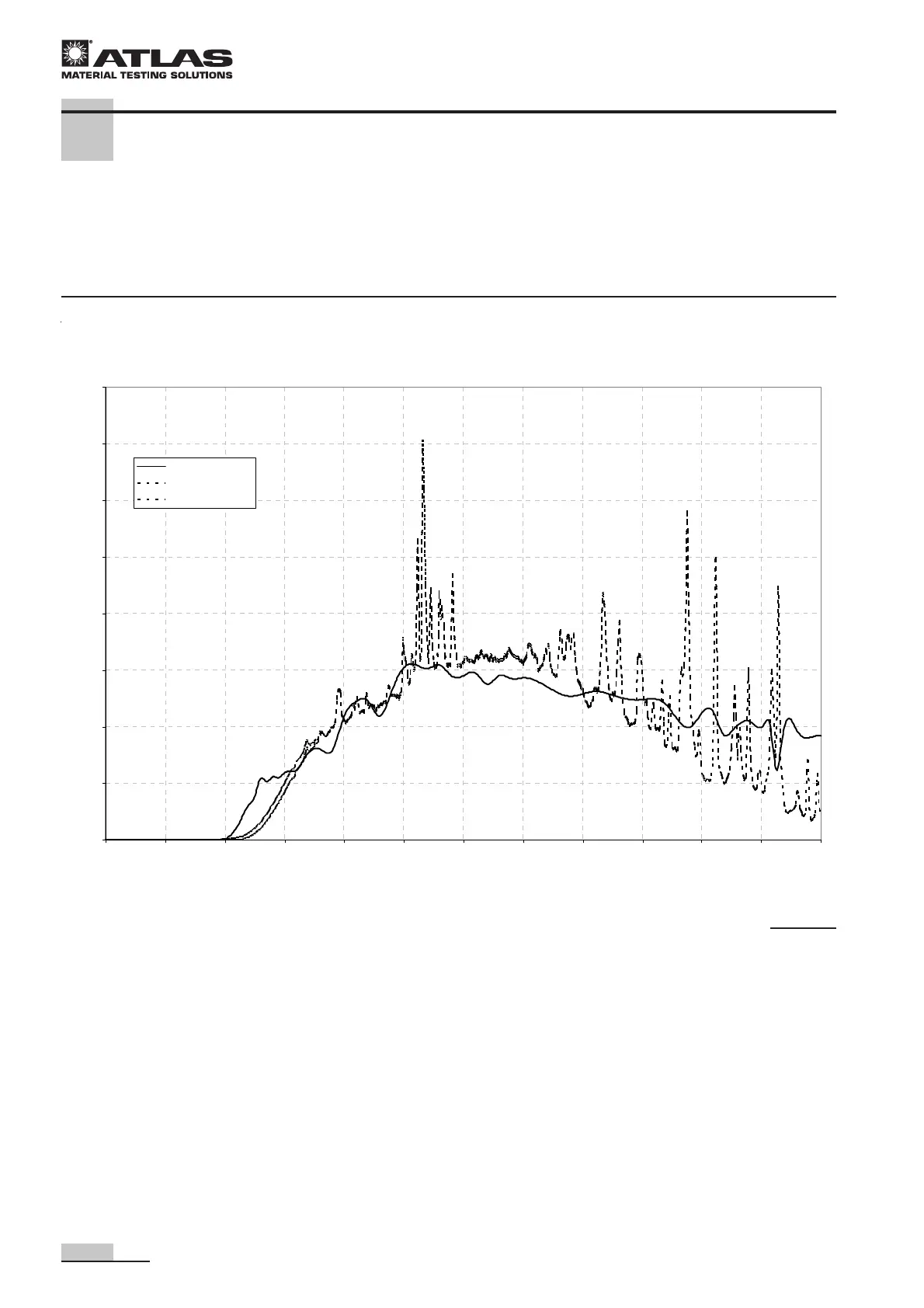

Fig.11: The diagram shows the spectral energy distribution in the wavelength range
of 200 - 800 nm using the combination of absorption filter system with 7 IR filters and
special UV glass exterior cylinder as well as 6 IR/1 UV and UV special glass exterior
cylinder.
Spectral energy distribution in wavelength range of 200-80 nm
0
1
1
2
2
3
3
4
4
200 250 300 350 400 450 500 550 600 650 700 750 800
Wavelength [nm]
Irradiation intensity [W/m²*nm]
CIE85 (Tabelle 4)
6 IR / 1UV
7 IR
5 Functional description
Fig. 11
