Operating Instructions Xenotest
®
150 S+
33
Inserting the IR and UV absorption filters:
The absorption filter system consists of 7 filter plates. For
the insertion of the plates, the IR filter lantern is required.
1. Clean the filter plates with a soft, dry cloth.

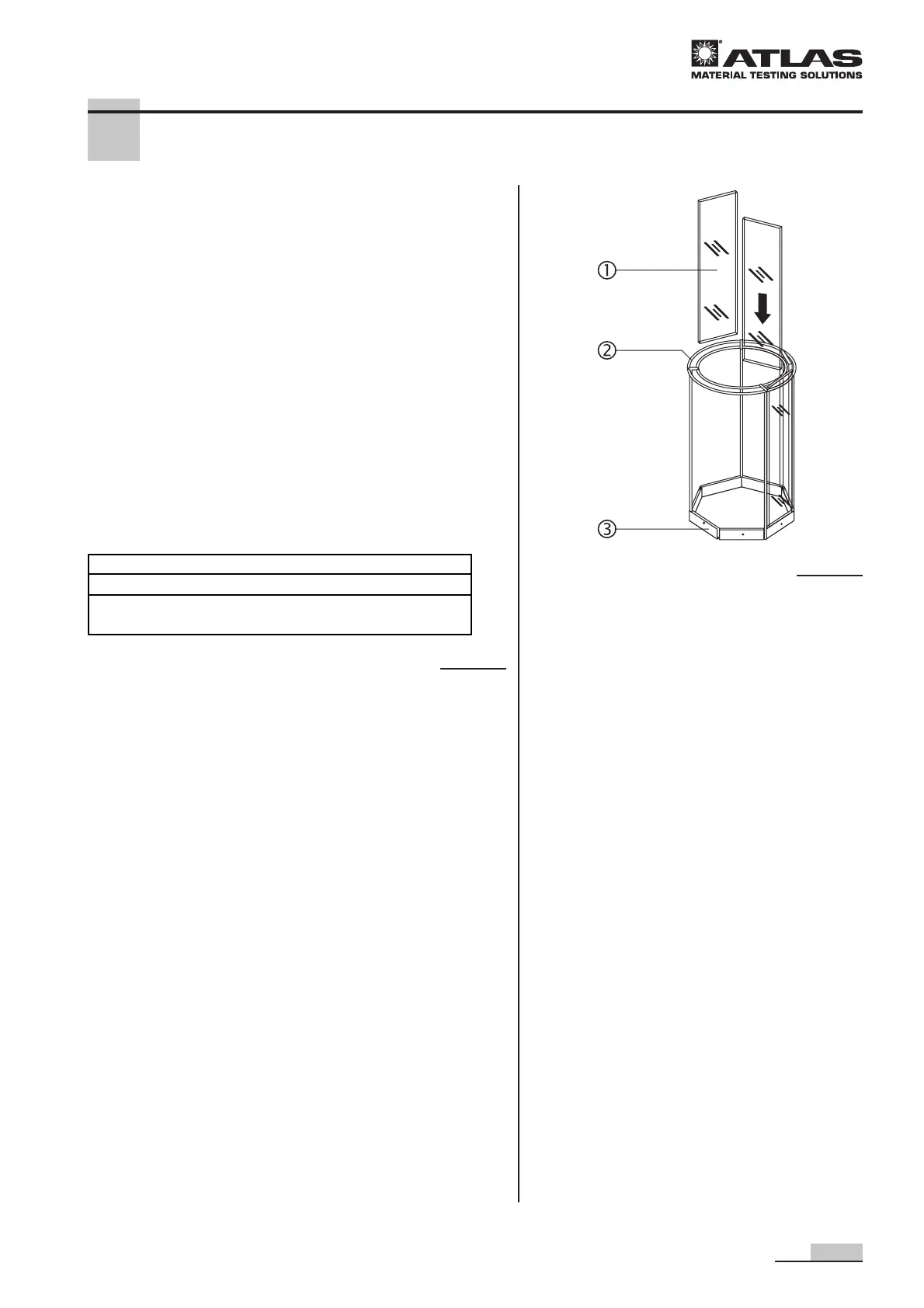

2. Fig. 18: Insert the filter plates 1 from above, through
the ring holder 2 and into the 7 holder rails 3 on the
IR filter lantern.
Filter lantern installation:
1. Carefully place the filter lantern 3 into the exterior
cylinder. Make sure the filter lantern is properly
seated in the base ring.
2. Install the exhaust air components (refer to Section 6.3).
Tab. 04: Overview of the available filter types and of their
confectioning
6 Start-up
Tab. 04
Fig. 18
Absorption filter
IR filter, set of 7 (green cut edge)
IR filter, set of 6 (green cut edge)
Black glass filter, 1 piece (black filter)
