Mediant 1000B Gateway & E-SBC
Hardware Installation Manual 26 Document #: LTRT-41441
3.2.8 Fan Tray Module
The device provides a Fan Tray module, which is inserted in the far-right chassis slot on the
front panel. The module contains six integrated fans which cool the device's internal
components. The Fan Tray module draws in air through a perforated grill on the right side
of the chassis. The incoming air passes through the entire set of modules, cooling each
one, and then exits the device through perforated vents on the left side of the chassis.

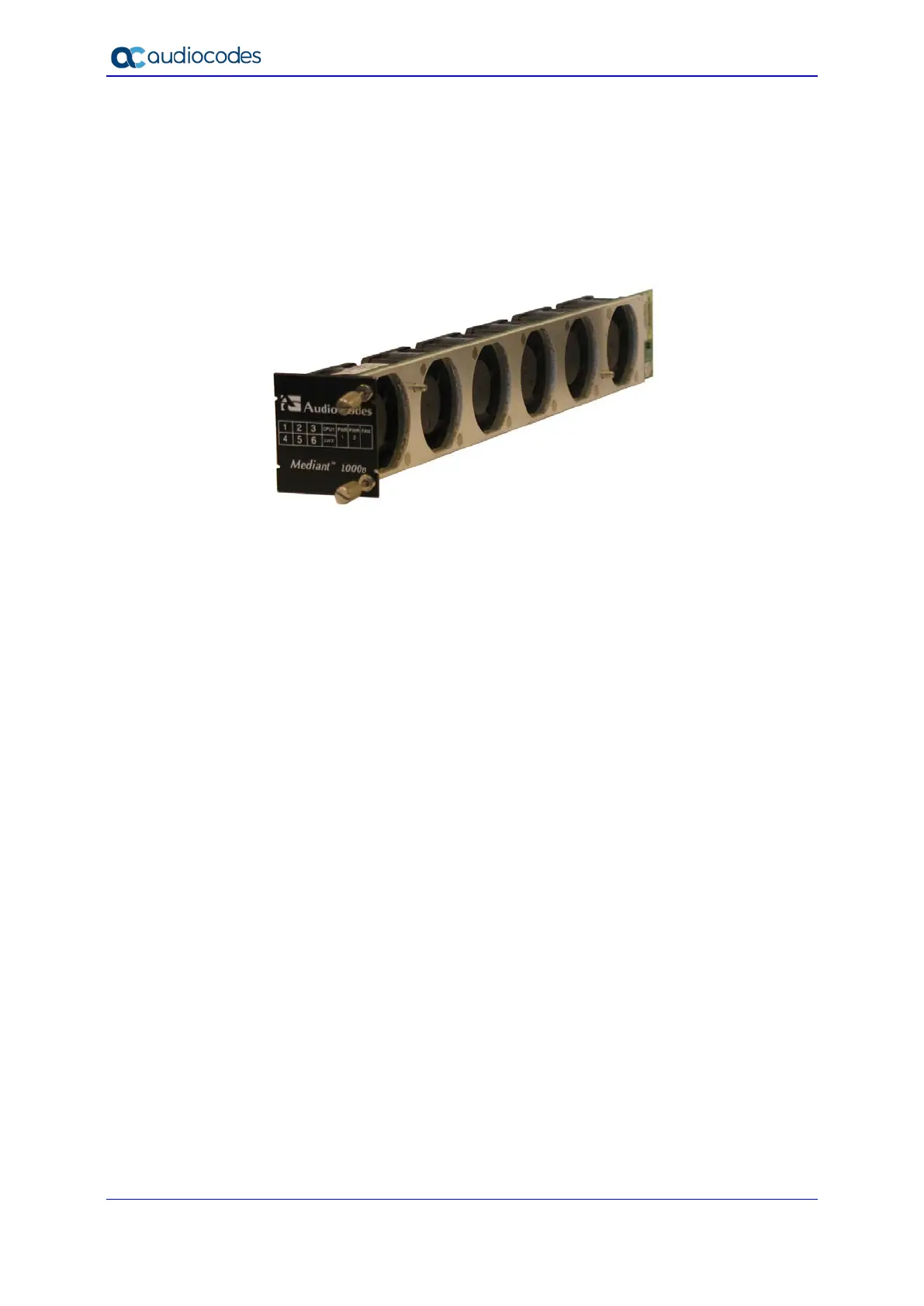

Figure 3-13: Fan Tray Module
For replacing the Fan Tray module, see Section 6.2.3 on page 72.
