A.2.3 HDMX Module
The HDMX module provides the hard-disk drive functionality for the OSN platform,
providing storage capacity. The capacity depends on the OSN platform (see Section A.1 on
page 77).
The HDMX module is housed in Slot #1 on the rear panel.
Notes:
• For additional storage capacity per HDMX module, contact your AudioCodes sales
representative.
• The OSN platform can optionally, be ordered with dual hard-disk drives (two HDMX
modules). This second module is housed in Slot #8 on the rear panel of the chassis.
The HDMX module is shown below and described in the subsequent table.

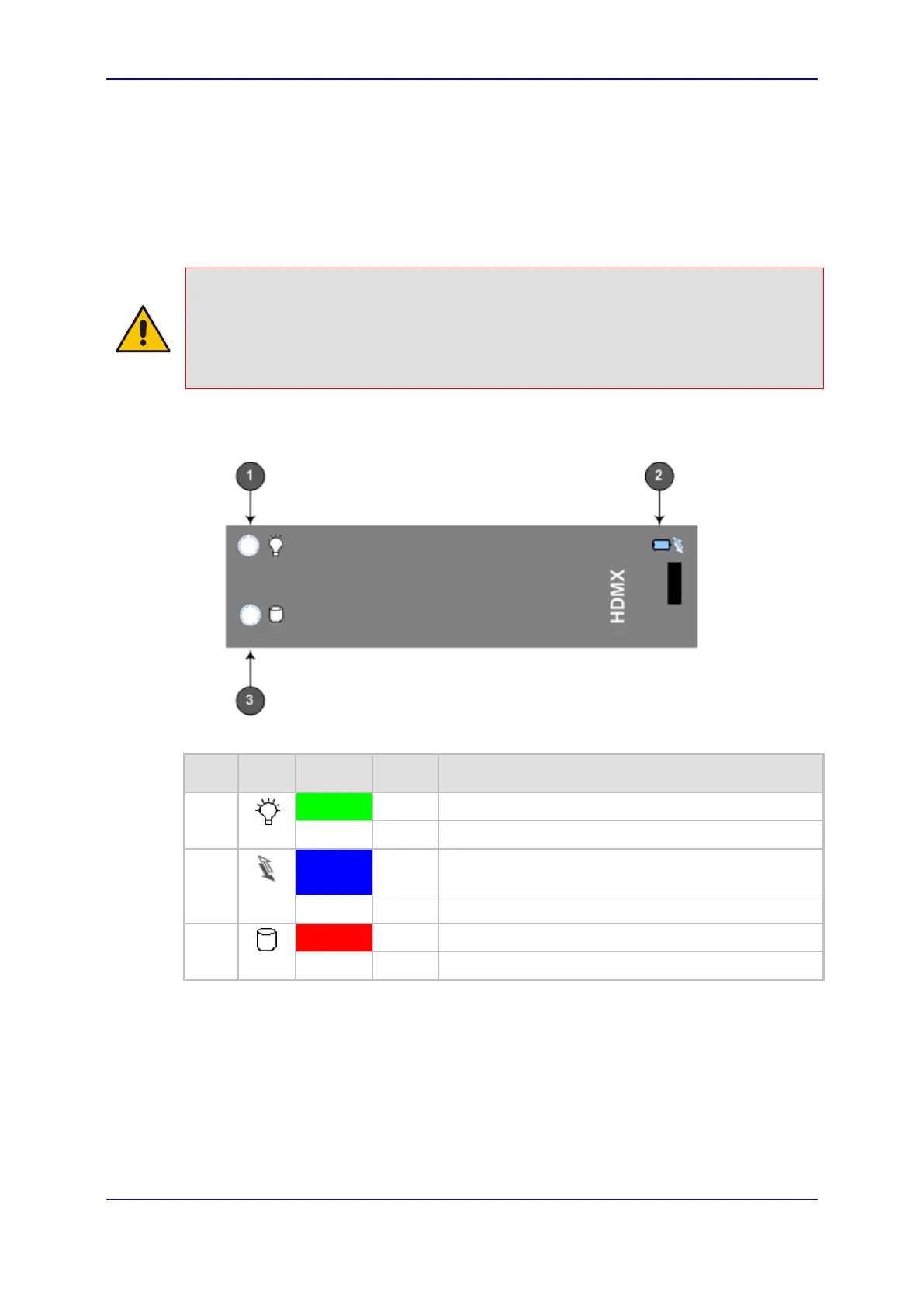

Figure A-6: HDMX Module
Table A-9: HDMX Module LEDs Description
Item # Label Color State Description
1 Green
On Power received by module.
-
Off No power received by module.
2 Blue
On Module can be extracted from chassis slot once
dismounted from the OSN operating system.
Off Module correctly inserted in chassis slot
3 Red
On Hard disk drive in use (active).
-
Off Hard disk drive not in use.
