7. Hold the chassis for support while the second person positions the chassis so that the
front-mounting brackets are flush against the front-rack posts and that the holes of the
front-mounting brackets align with the holes on the front-rack posts.

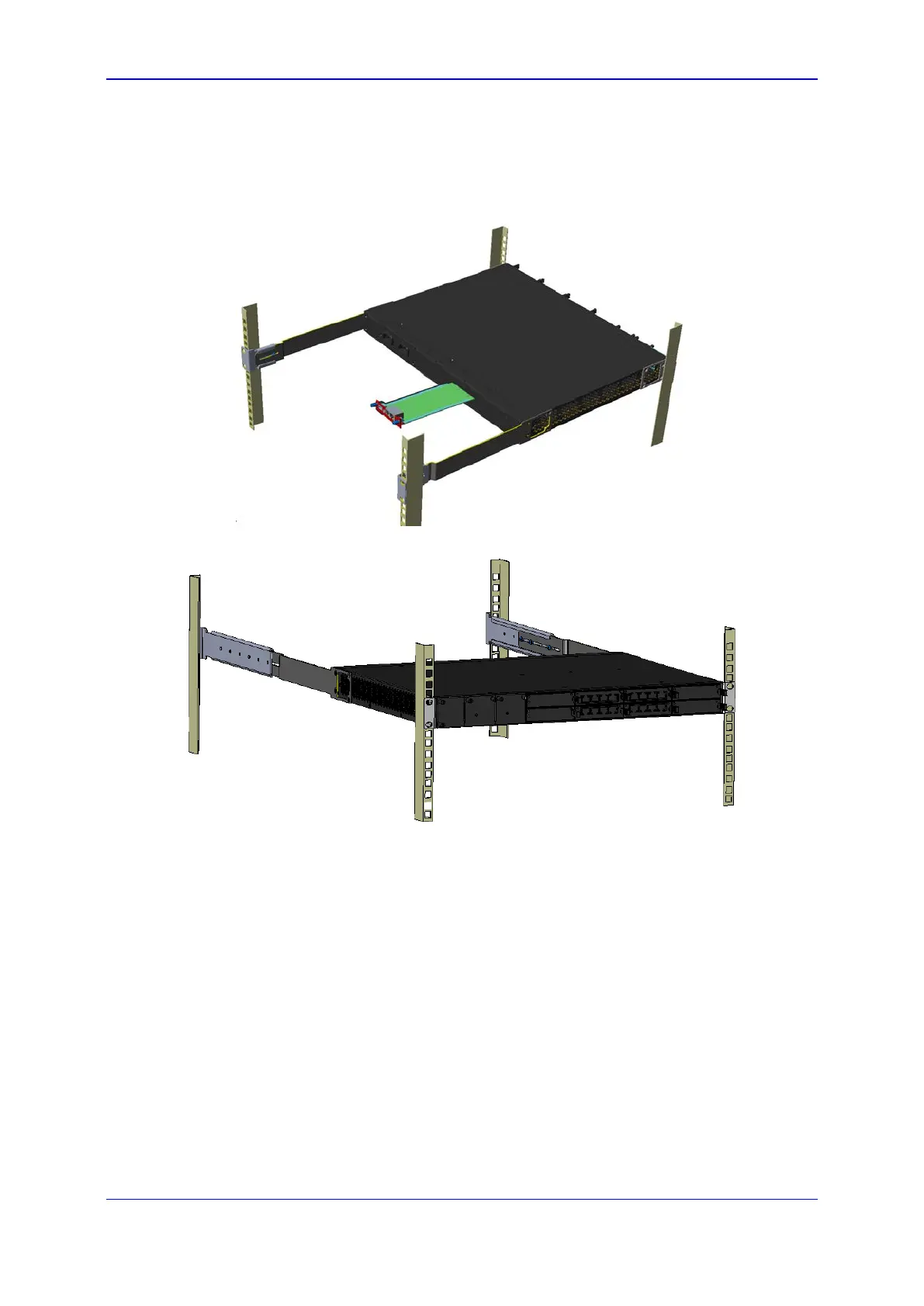

Figure 4-10: Front-Mounting Brackets Flush and Aligned with Front Rack Posts (60 cm)
Figure 4-11: Front-Mounting Brackets Flush and Aligned with Front Rack Posts (80 cm)
8. Hold the chassis in position while the second person secures the two front-mounting
brackets to the front posts, by finger-tightening 19-inch rack bolts (not supplied) to the
rack posts.
