6. Hold the chassis in position while the second person secures the rear-mounting
flanges to the rear-mounting brackets. Insert the supplied screws (6-32 x 5/16 inch)
from the inside of the rack, through the flange's grid and into the screw hole on the
rear-mounting bracket. Finger-tighten the screws but make sure that the screws are
NOT fully tightened and that the flange can freely move on the slide rails of the rear-
mounting bracket.

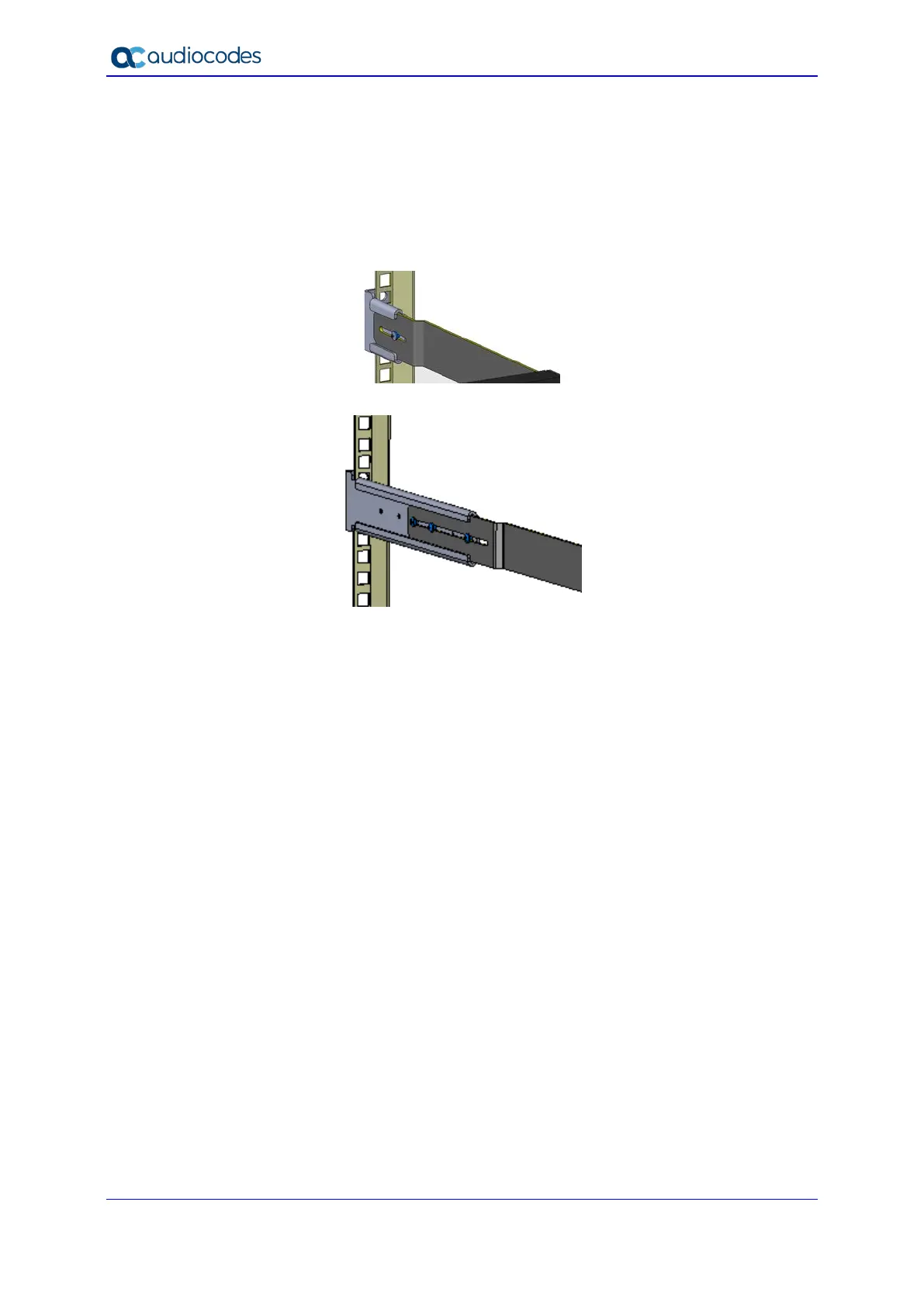

Figure 4-8: Fastening Rear-Mounting Flange to Rear-Mounting Bracket (60 cm)
Figure 4-9: Fastening Rear-Mounting Flange to Rear-Mounting Bracket (80 cm)
