Mediant 1000B Gateway & E-SBC
Hardware Installation Manual 34 Document #: LTRT-41441
3. Attach the rear-mounting flanges to the rear sides of the chassis, using three screws
(supplied) per flange.

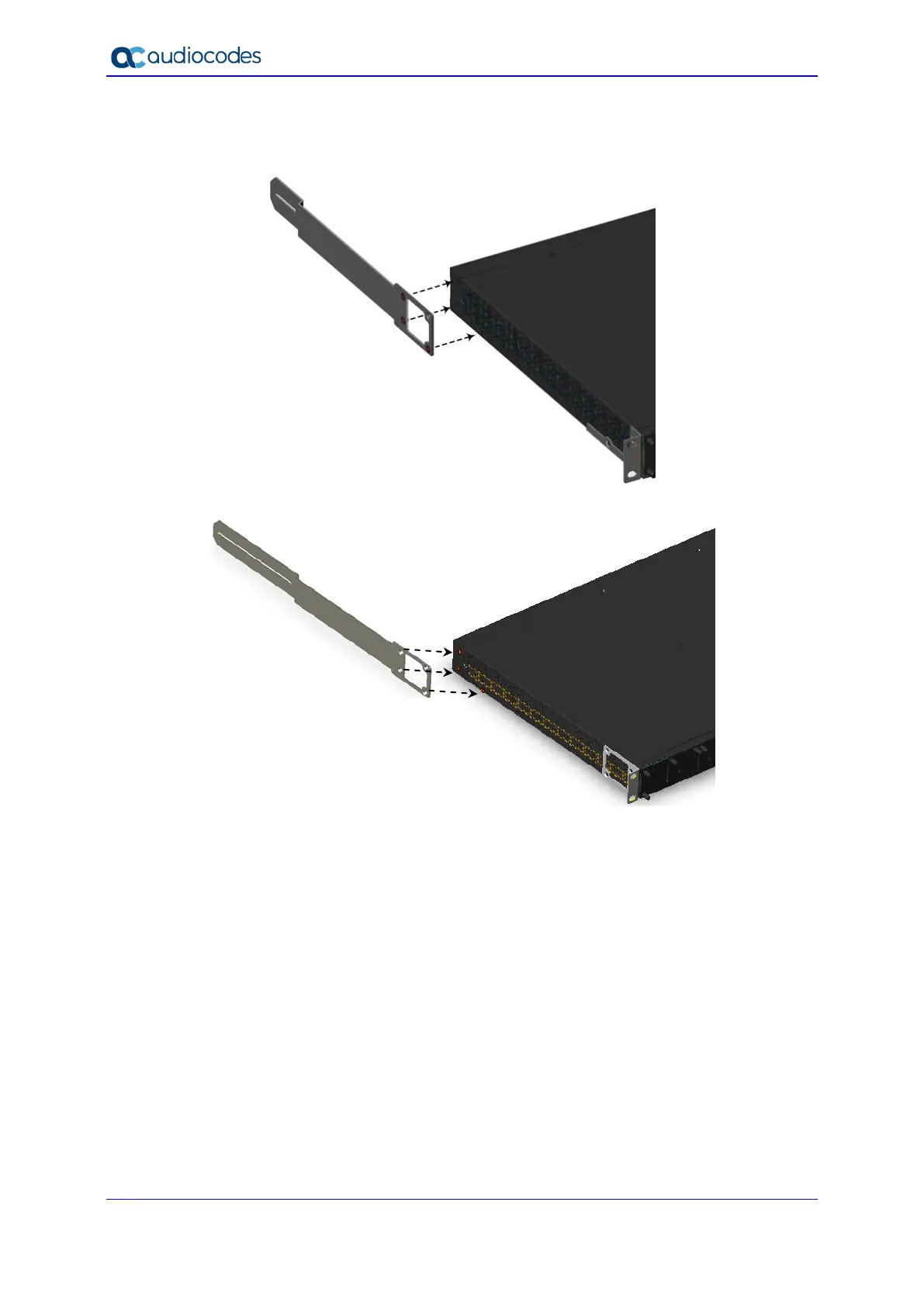

Figure 4-4: Attaching Rear-Mounting Flange to Chassis' Rear-Side Mounting Holes (60 cm)
Figure 4-5: Attaching Rear-Mounting Flange to Chassis' Rear-Side Mounting Holes (80 cm)
4. With two people, lift the chassis into the rack from the front of the rack.
