Hardware Installation Manual A. Open Solution Network Server Platform
Media Gateways & SBCs 87 Mediant 1000B Gateway & E-SBC
Pin Signal
7 TMDS Data1 Shield
8 TMDS Data1-
9 TMDS Data0+
10 TMDS Data0 Shield
11 TMDS Data0-
12 TMDS Clock+
13 TMDS Clock Shield
14 TMDS Clock-
15 CEC
2 Utility/HEAC+
17 SCL
18 SDA
16 DDC/CEC/HEAC Ground
19 +5 V Power
1 Hot Plug Detect/HEAC
A.3.2 Cabling OSN3 for Installing Operating System
To install an operating system on your OSN server, follow the procedure below.
To install operating system on OSN3:
1. Connect the RS-232 interface port (RJ-45), located on the OSN3 module, to a PC,
using the RS-232 cable (supplied).

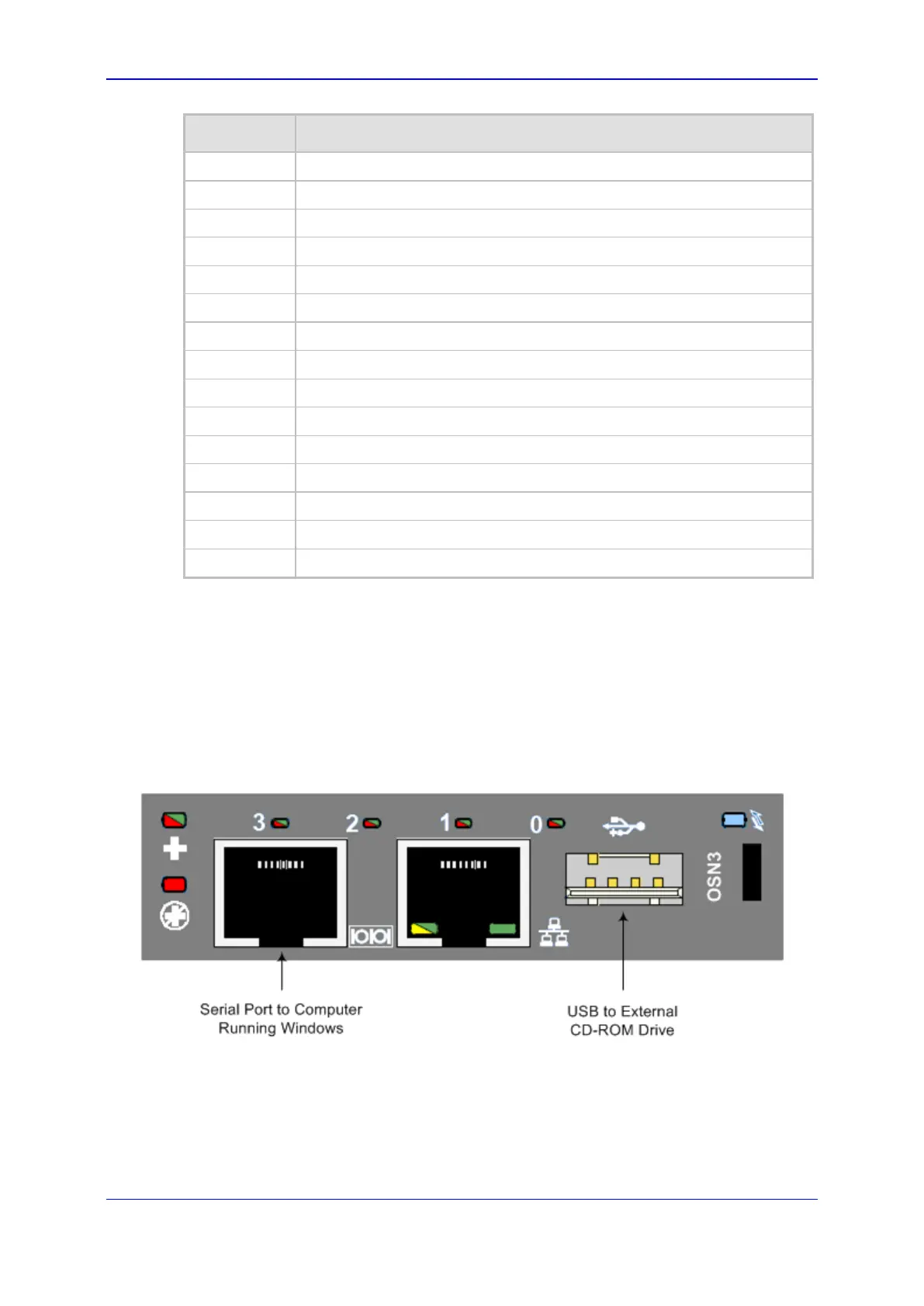

Figure A-7: Cabling OSN3 Module for Installing Operating System
2. Start a terminal application (e.g., HyperTerminal) on your PC and create a new
connection with the following settings:
• Baudrate: 115200 (bits per second)
• Data Bits: 8
• Parity: None
