5.3.1.1 Indoor FXS Cabling
The following procedure describes how to cable FXS ports for indoor routing. Any FXS
module can be used (see Section 3.2.1 on page 17).
Cabling specifications:

Cable: Standard straight-through RJ-11-to-RJ-11 telephone cable

Connector: RJ-11

Connector Pinouts:

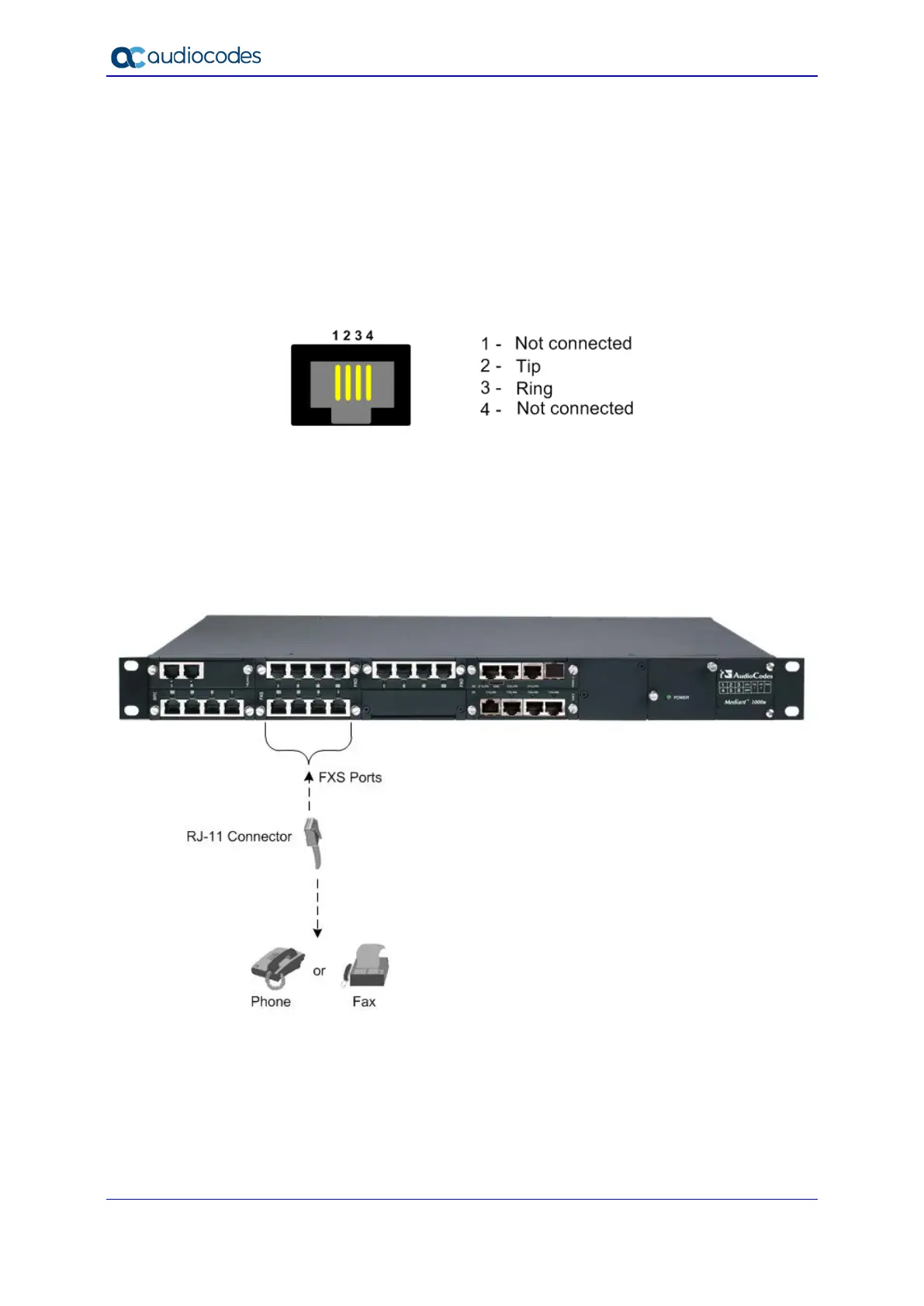

Figure 5-5: RJ-11 Connector Pinouts for FXS
 To connect FXS interfaces for indoor routing:
1. Connect one end of the straight-through RJ-11 cable to the RJ-11 port on the FXS
module.
2. Connect the other end of the cable to the RJ-11 port on the analog equipment (e.g.,
telephone or fax machine).
Figure 5-6: FXS Cabling for Indoor Routing
