A.2.2 OSN3 Module
The OSN3 module is part of the OSN3 server platform. This module provides the port
connector interfaces and is housed in Slot #2 on the rear panel.
A.2.2.1 Port Description
The OSN3 module is shown below and described in the subsequent table.

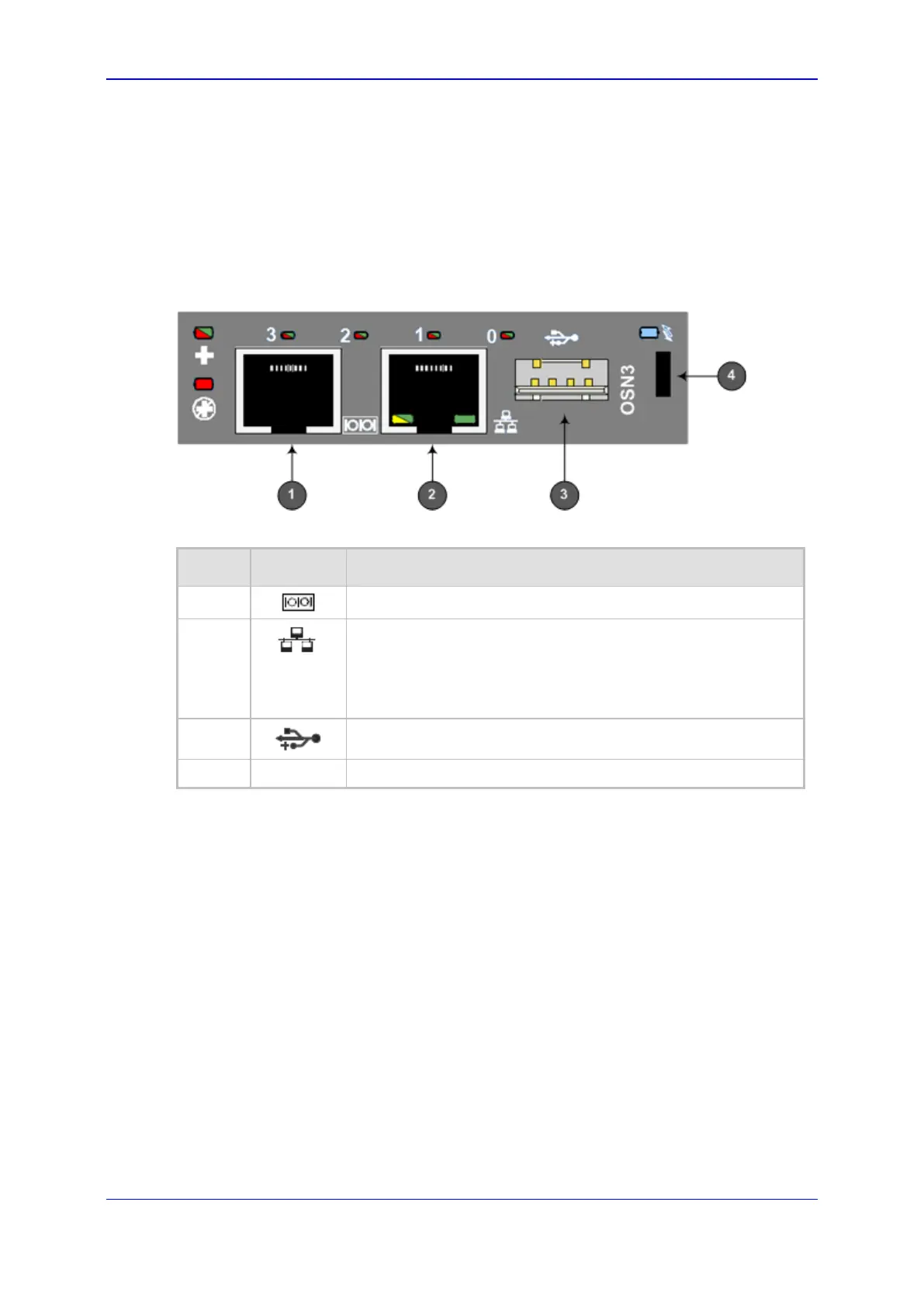

Figure A-3: OSN3 Module Ports
Table A-5: OSN3 Module Port Description
Item # Label Description
1
RJ-45 port for RS-232 serial interface (COM1).
2
RJ-45 port for Gigabit Ethernet. The interface provides
automatic detection and switching between 10Base-T,
100Base-TX and 1000Base-T data transmission (Auto-
Negotiation). Auto-wire switching for crossed cables is also
supported (Auto-MDI/X).
3
USB 2.0 port.
4
- Handle for inserting and extraction module from slot.
