OptiFlex™ BACnet Integrator (part no. G5CE) Automated Logic Proprietary and Confidential A Carrier Company. © 2022 Carrier.
Rev. 6/9/2022 All rights reserved.
4
Device is protected by a replaceable, fast acting, 250 Vac, 2A, 5mm x
20mm glass fuse.
The power and network ports comply with the EMC requirements
EN50491-5-2.
CAUTION To protect against large electrical surges on serial EIA-485
networks, place a PROT485 at each place wire enters or exits the building.
• Tricolor NET LED to show network status
• Tricolor SYS LED to show system status
• A TX (Transmit) and RX (Receive) LED for the following ports:
• Gig-E
• Port S1
• Port S2
• Rnet
See LEDs (page 36).
Environmental operating
range
-40 to 158°F (-40 to 70°C), 10-95% relative humidity, non-condensing
NOTES
• The G5CE is suitable for installation inside or outside the building
envelope.
• Install in a UL Listed enclosure only.
• Do not change the position of the power or End of Net switch at
temperatures below -22°F (-30C) to ensure proper operation and
electrical connectivity.
Fire-retardant plastic ABS, UL94-5VA
Terminal blocks and
connectors
Screw-type terminal blocks.
0.2 in (5.08 mm) pitch connectors
35mm DIN rail mounting or screw mounting

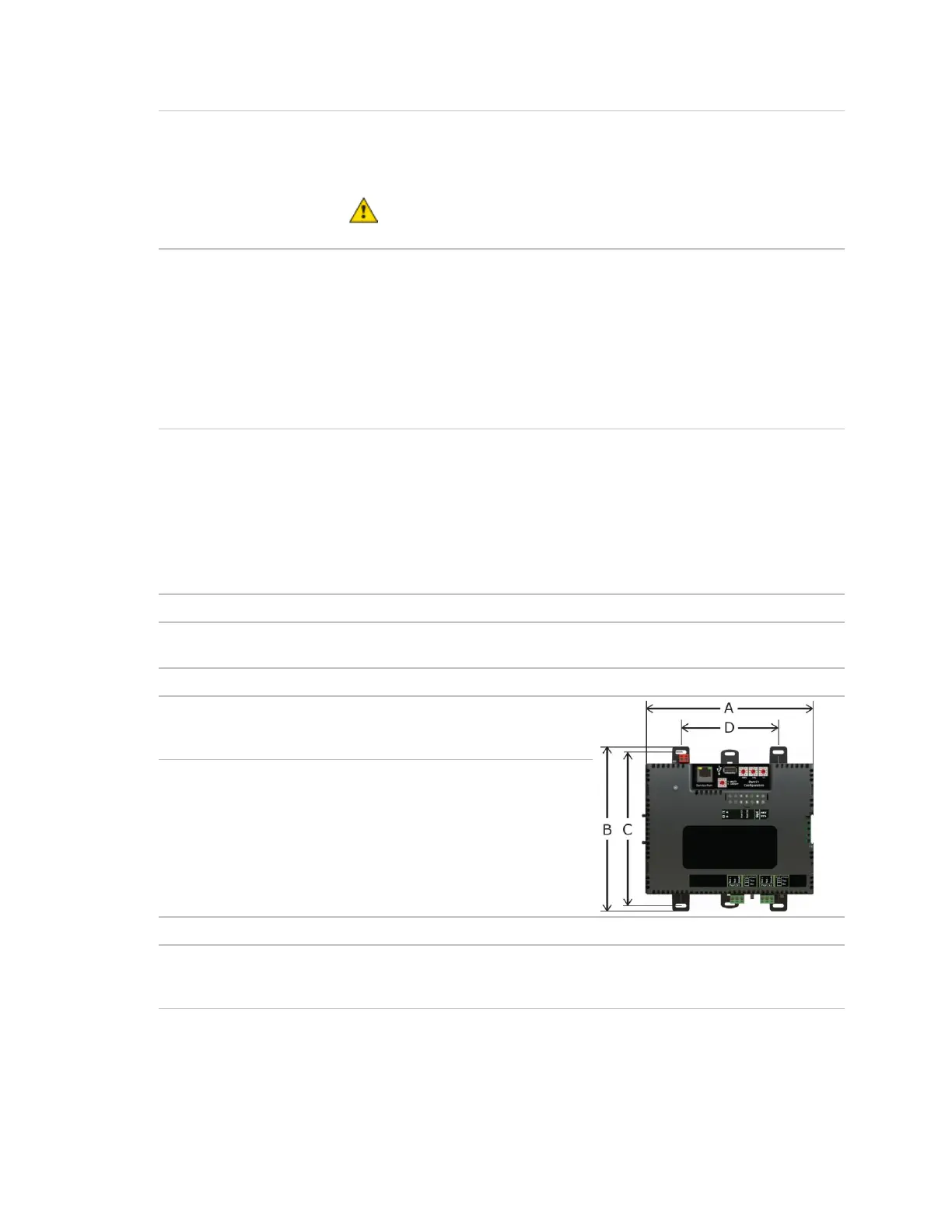

7.1 in. (18.03 cm)
6.95 in. (17.65 cm)
2.09 in. (5.31 cm)
Screw mounting
dimensions
6.45 in (16.38 cm)
4.1 in. (10.4 cm)
Conforms to the BACnet Building Controller (B-BC) Standard Device Profile
as defined in ANSI/ASHRAE Standard 135-2012 (BACnet) Annex L,
Protocol Revision 14
