Cable Connections
Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02,
Autronica Fire and Security AS
Page 31
9.5 Fuses

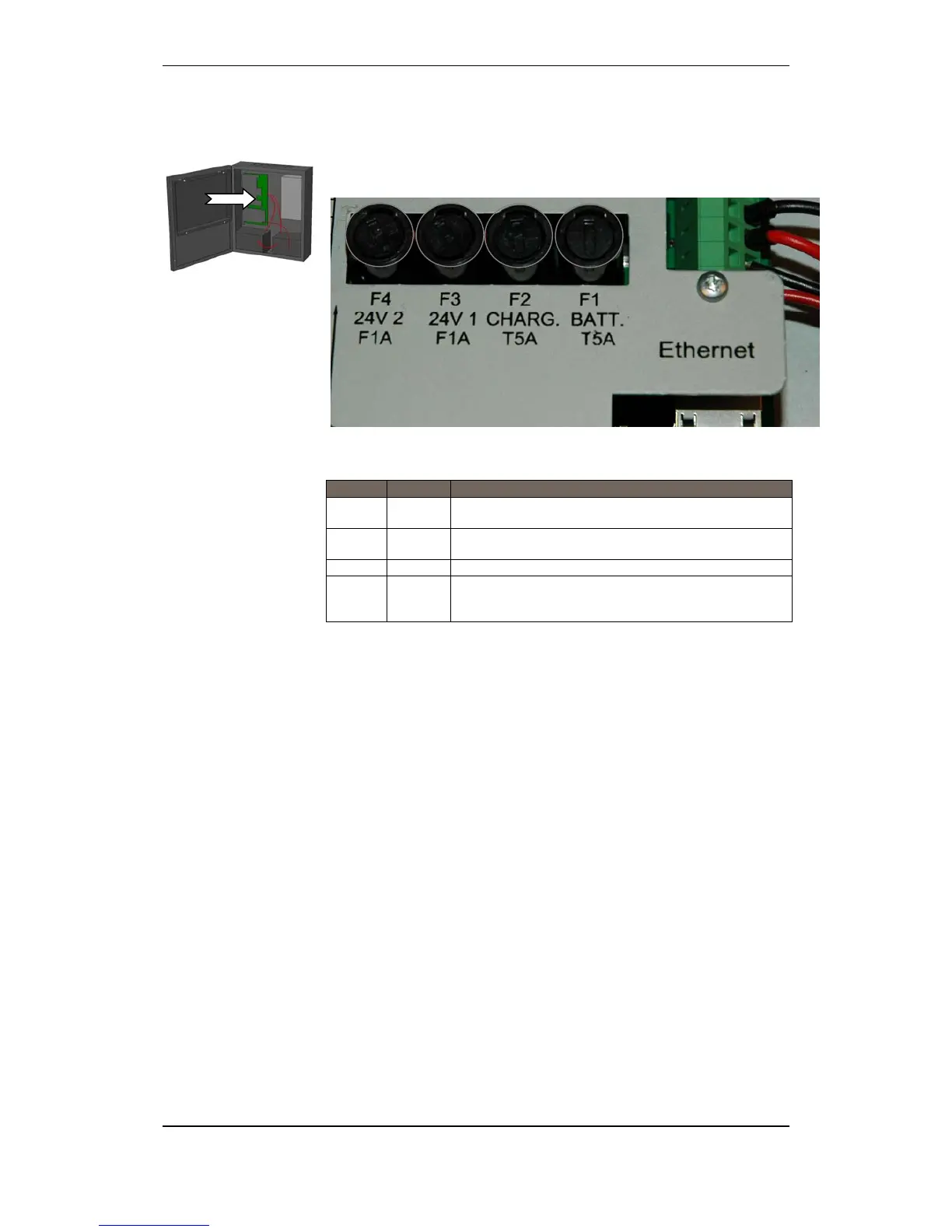

The Fire Alarm Control Panel is provided with 4 fuses, easily
accessible from the main circuit board inside the cabinet.
Fuse Value Description
F4 1A Fast 24V output 2. Used to power external equipment. Typical
application will be to power the panel bus +24V 2
F3 1A Fast 24V output 1. Used to power external equipment. Typical
application will be to power the panel bus +24V 1
F2 5A Slow Battery charger fuse.
F1 5A Slow Battery connection fuse. Used to cut the connection
between the battery and the charger in the event that the
battery shorts out.
