Maritime Installations
Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02,
Autronica Fire and Security AS
Page 54
10.2 Fire Alarm Control Panel BS-200M
The BS-200M is specifically designed for use in maritime
applications. The panel is provided with a filter.

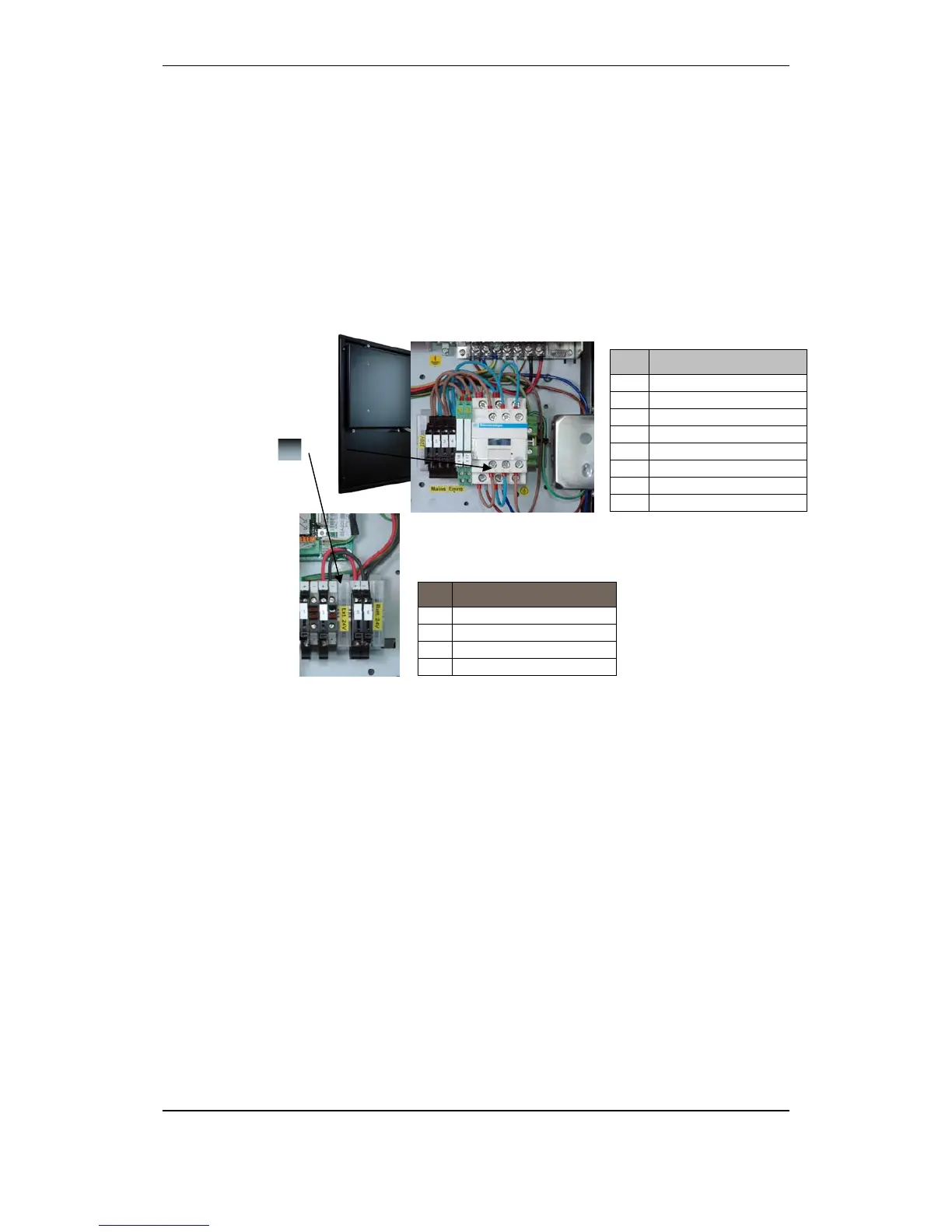

10.2.1 External Connections
116-71211549 (230VAC) and
116-71211550 (110VAC)
X1 Description
1 Mains 110/230 VAC
2 Mains 110/230 VAC
3 Emergency 110/230 VAC
4 Emergency 110/230 VAC
5 Earth
K15 Change-over Relay
K16 Mains Fault
K17 Emergency Fault
X
1
X2
X2 Description
1 External 24V +
2 External 24V -
3 Battery 24V +
4 Battery 24V -
