3. Panels, Brackets and Cabinet
The Autroprime system provides the following panels, brackets
and cabinets:

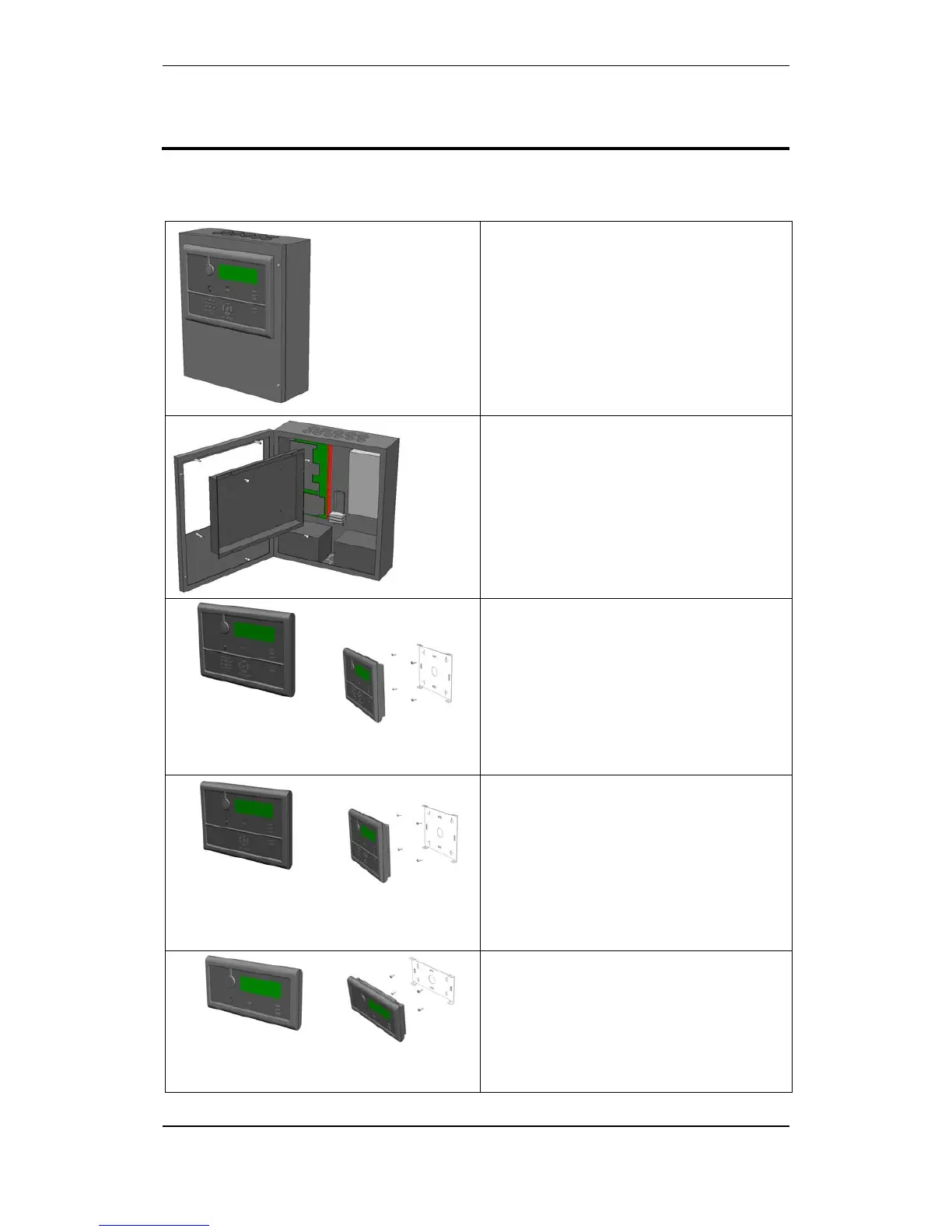

Fire Alarm Control Panel
(BS-200, BS-200L, BS-200M)
BS-200 is an integrated fire-alarm control
panel for small-to-medium-sized
installations. The panel serves as a stand-
alone operating panel, or as a master panel
in a networked system.
Dimensions:
HxWxD (mm): 420x346x140
Cabinet (UE-1747)
If the Operator Panel (BS-210) is mounted
separately outside the cabinet, the door
bracket is to be turned inside out, and
fastened to the cabinet’s door.
Dimensions:
HxWxD (mm): 420x346x140
Operator Panel (BS-210)
The panel is delivered as an integrated part
of the Fire Alarm Control Panel but can also
be mounted separately outside a cabinet
onto a bracket (UD-731).
Dimensions:
HxWxD (mm): 310 x 220 x 45
Repeater Panel (BS-211)
The panel is identical to the the Operator
Panel BS-210, with the exception of the
alphanumeric keypad. Mounted onto a
bracket (UD-731).
Dimensions:
HxWxD (mm): 310 x 220 x 45
Fire Brigade Panel (BU-210)
Mounted onto a bracket (UD-732).
Dimensions (mm):
HxWxD (mm): 310 x 154 x 45
