Cable Connections
Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02,
Autronica Fire and Security AS
Page 37

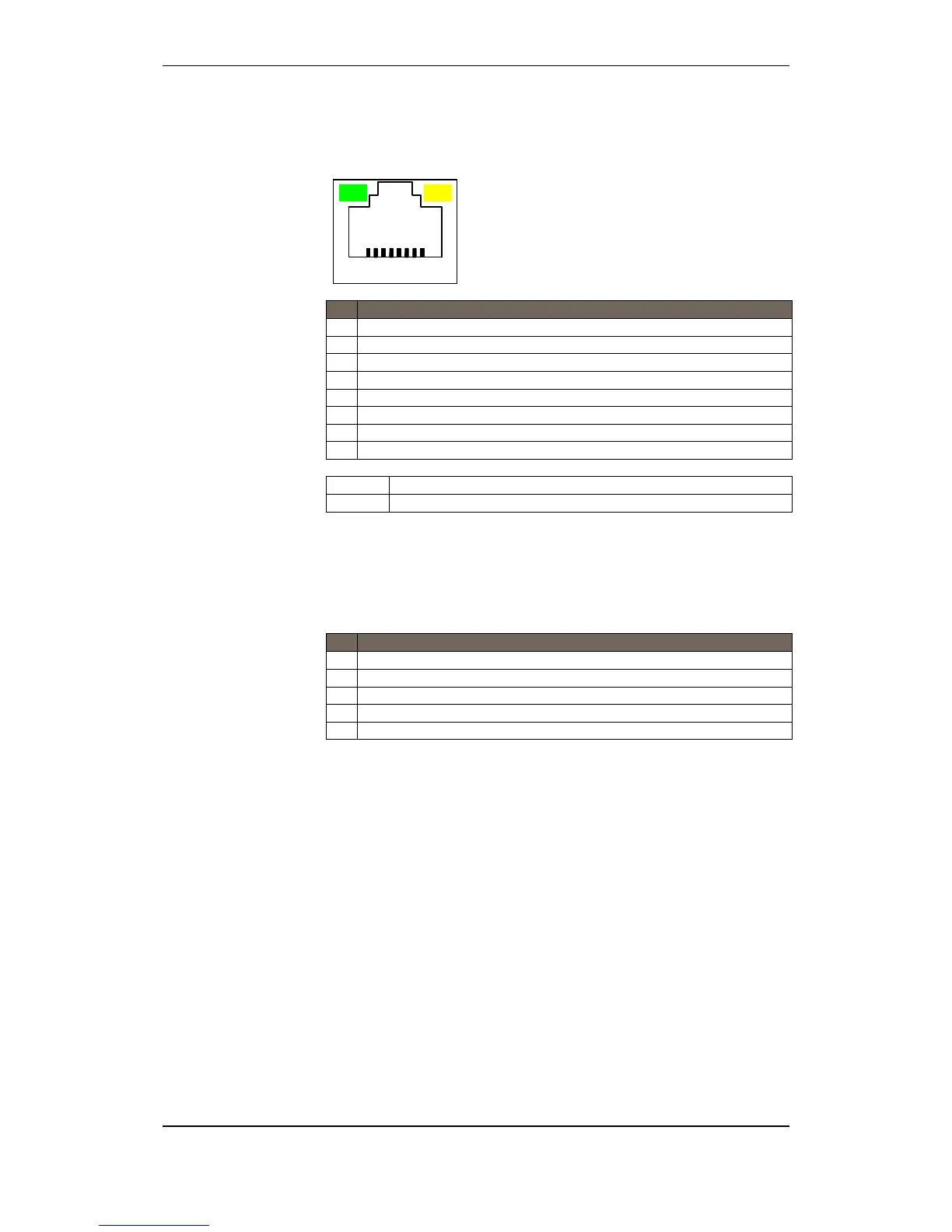

9.8.2 Ethernet RJ45 connector J2
18
12
J2- Description
1 TX+, Transmit Data+
2 TX-, Transmit Data-
3 TX+, Transmit Data+
4 N.C.
5 N.C.
6 TX-, Transmit Data-
7 N.C.
8 N.C.
LED 1 Link/Activity LED
LED 2 If ON, 100MBit/s, if OFF, 10MBit/s
9.8.3 Power Supply Control and Battery Temperature
Measurement J3
J3- Description
1 Vcon 1
2 -V 2
3 PSF 3
4 Thermistor
5 Thermistor
