Cable Connections
Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02,
Autronica Fire and Security AS
Page 30

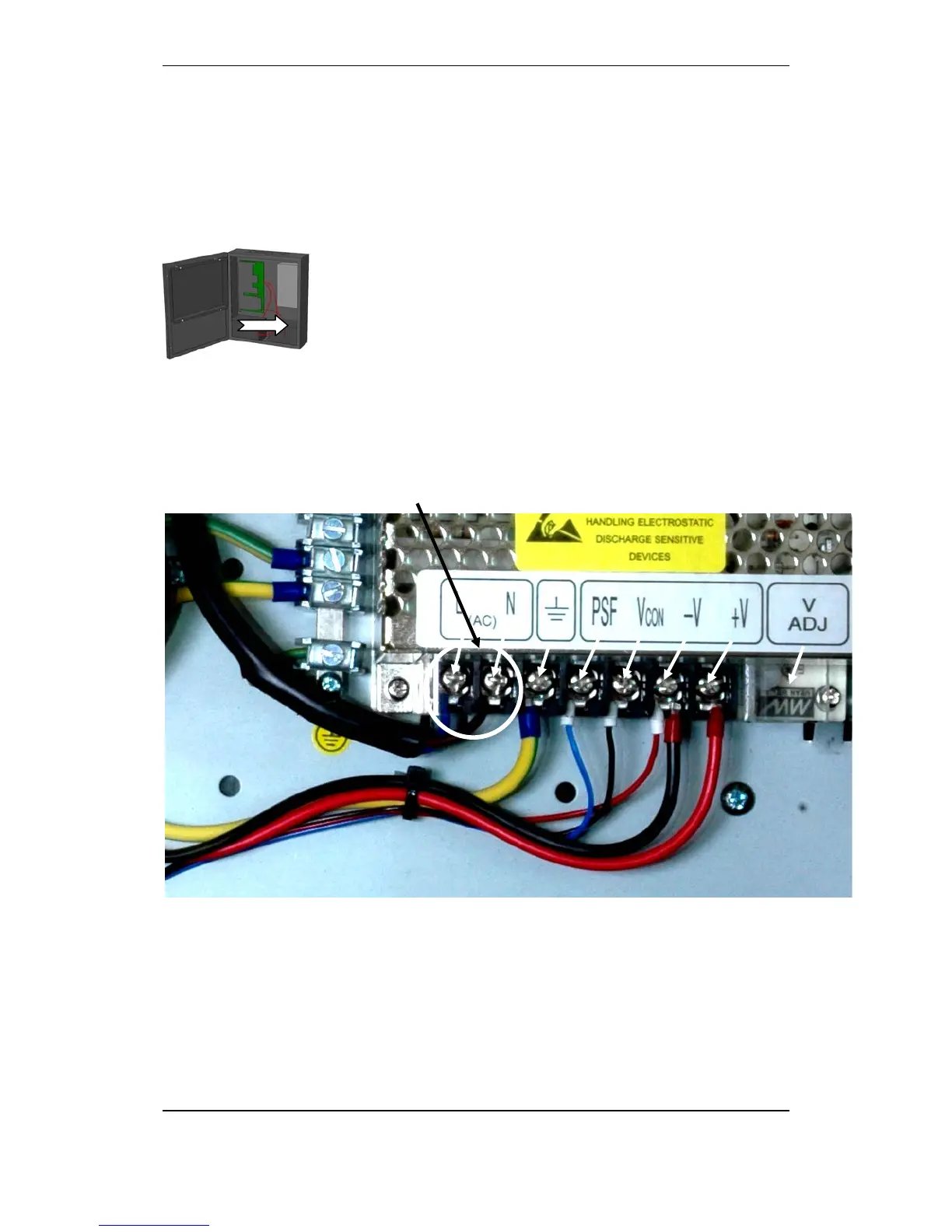

9.4 Connections to Power Supply / Mains Power
Each terminal point is indicated on the power supply’s label
straight above the terminal points. For protection purposes a
plastic cover is placed on top of the terminal points.
Connect the mains power cable to the correct terminal points (L
and N)
Note that the isolation must be kept on the mains cable close up to
the terminal points (L and N).
Caution
Do NOT touch the potensiometer labeled V, ADJ.
Mains Power
Terminal Points
(L and N)
NOTE: For specific information on the
installation and cable connections for maritime
installations, refer to chapter 10.
To Next Page
