12. Switches and Indicators on
the Main Board
12.1 Overview
12.2 Reset Switch (S1)
!
Warning:
The reset switch (S1) on the main board is to be pressed only if
the System Fault indicator on the main board for any reason is
lit.
(A normal system reset – which is a quite different operation - is
done by pressing the green Reset button on the front panel.
Also, if a restart of the panel is required , this is to be done via
the Menu entry in Service mode.)

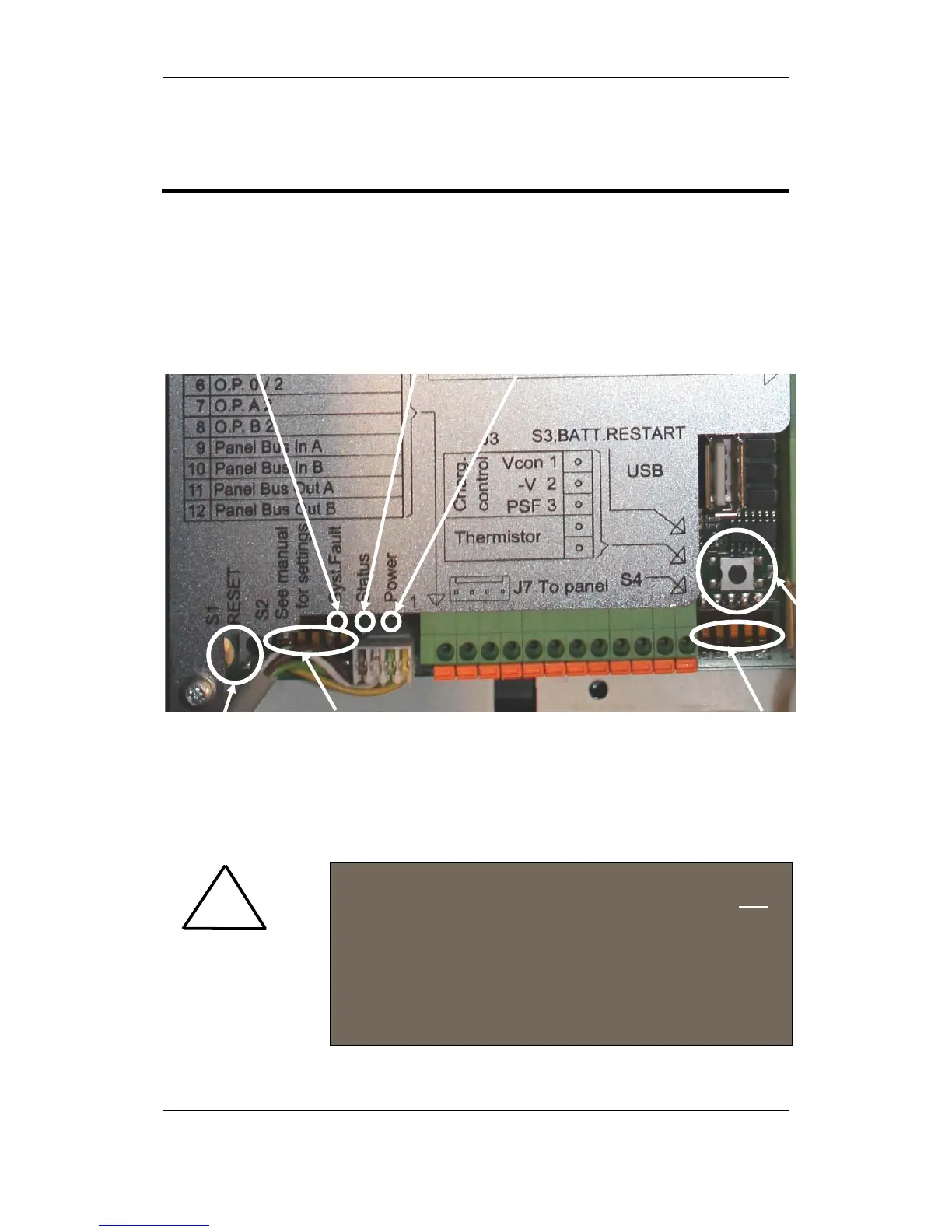

S3: Battery
Restart switch
S1: Reset switch
S2: Dipswitches
for mode settings
System Fault
LED indicator
Status LED
indicator
Power LED
indicator
S4: Dipswitches
for serial port
settings
