9.9 Cable Connections inside the Cabinet (Fire Alarm
Control Panel)
CAUTION

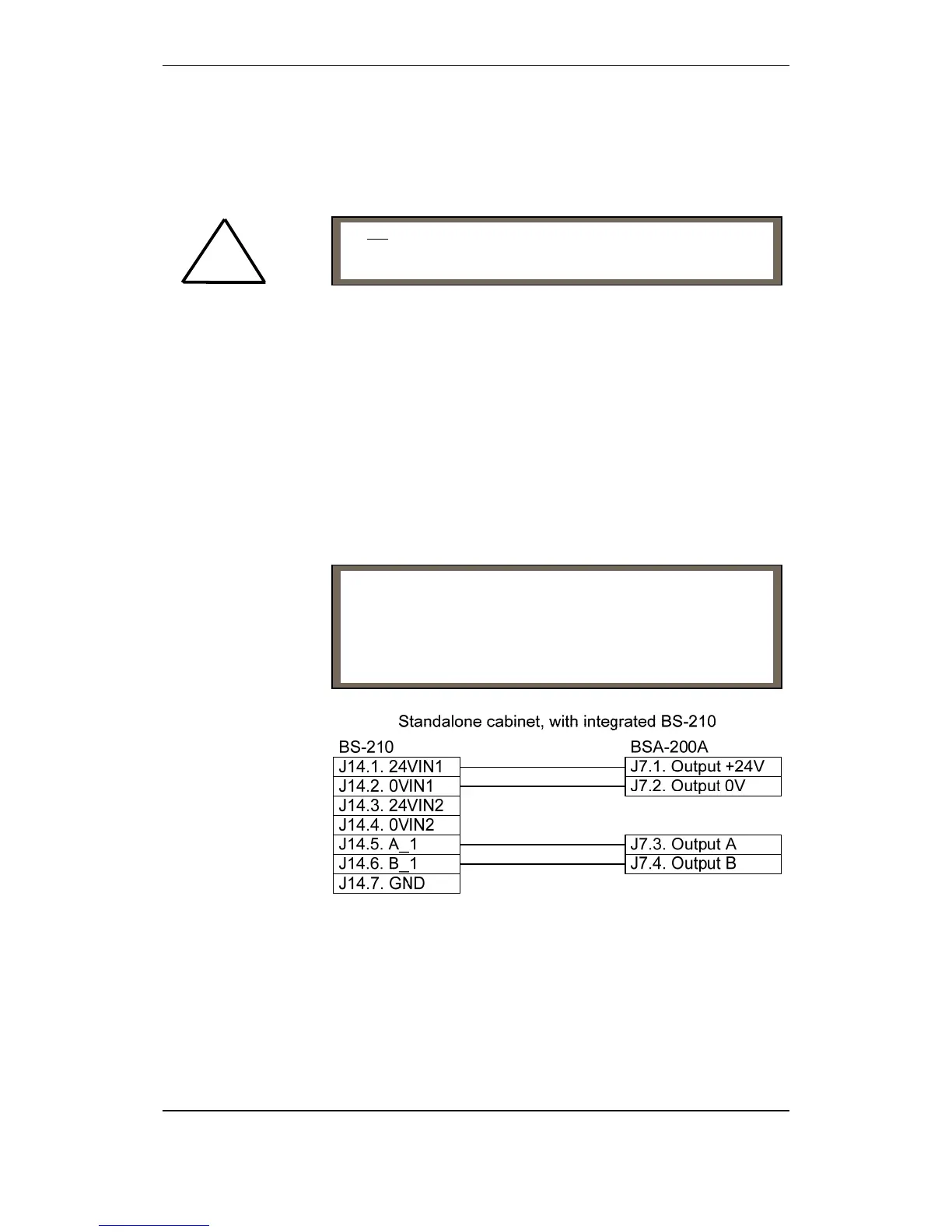

9.9.1 Connections (J7) for a standalone cabinet with integrated
BS-210
Delivered from the factory, the cables from the integrated operator
panel (BS-210) in a standalone cabinet are connected to connector
J7.
As the operator panel BS-210 is integrated in a standalone
cabinet, redundancy is not required.
Do not connect the 24V wire to the terminal points used for
communication (A and B terminals). This will lead to
malfunction of the communication circuits.
!
Note:
From the factory, the default configuration of the panel
connection (Service Menu/System Settings/“Set Operator
Panel connection”) is set to “J7, Operator Panel” (connector
J7), i.e. the configuration is by default prepared for a
standalone cabinet with integrated BS-210.
