Cable Connections
Installation Handbook, Autroprime Interactive Fire Detection System, 116-P-APRIME2-INSTAL/DGB, Rev. C, 2016-29-02,
Autronica Fire and Security AS
Page 47
9.11 Overview Panel Bus
CAUTION
The termination point "GND" is available for termination of the shield
from a shielded cable. In this way, it is possible to establish a through-
connected shielded cable. Note that it is not required to terminate this
point to an Earth connection.

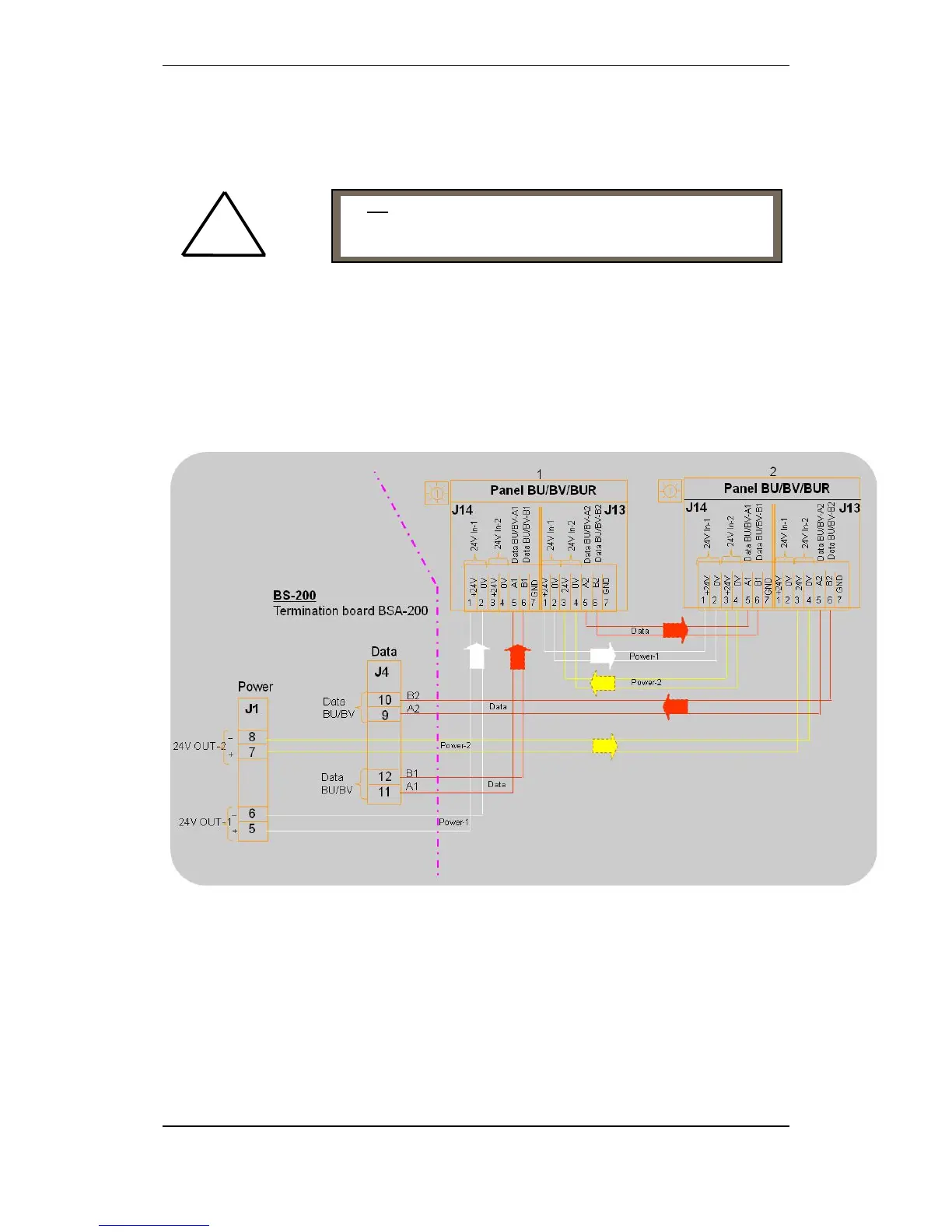

Connection of panels on the Panel Bus
Do not connect the 24V wire to the terminal points used for
communication (A and B terminals). This will lead to
malfunction of the communication circuits.
!
