2-8 System Administrator’s Guide
Setting the Supply Position
This function adjusts the position of the supply relative to the index marks in the feed
direction. Adjust the supply position to compensate for supply variation. The
adjustments are in dots where one dot equals 0.0049 inch.
Note: Adjust the supply position only on initial printer setup. For format adjustments,
change the print position. This option takes effect when you print the next label
or tag. Changing supply position may also affect print position.
Select To
Decrease the setting. Moves the print down.
Increase the setting. Moves the print up.
Note: Press the left function button to change the amount (by 1, 10, or 100).
Setting the Margin Position
This function adjusts where the format prints side to side on the supply. The adjustments
are in dots where one dot equals 0.0049 inch.
The width of the print area depends on the supply size. The maximum width is four
inches. When you move the image to the right or left on the supply, avoid moving the
image too close to either edge, because it may not print.
Note: Changing this setting only affects new formats sent to the printer. Any formats
previously saved into flash memory are not affected.
Select To
Decrease the setting. Moves print to the left.
Increase the setting. Moves print to the right.
Note: Press the left function button to change the amount (by 1, 10, or 100).

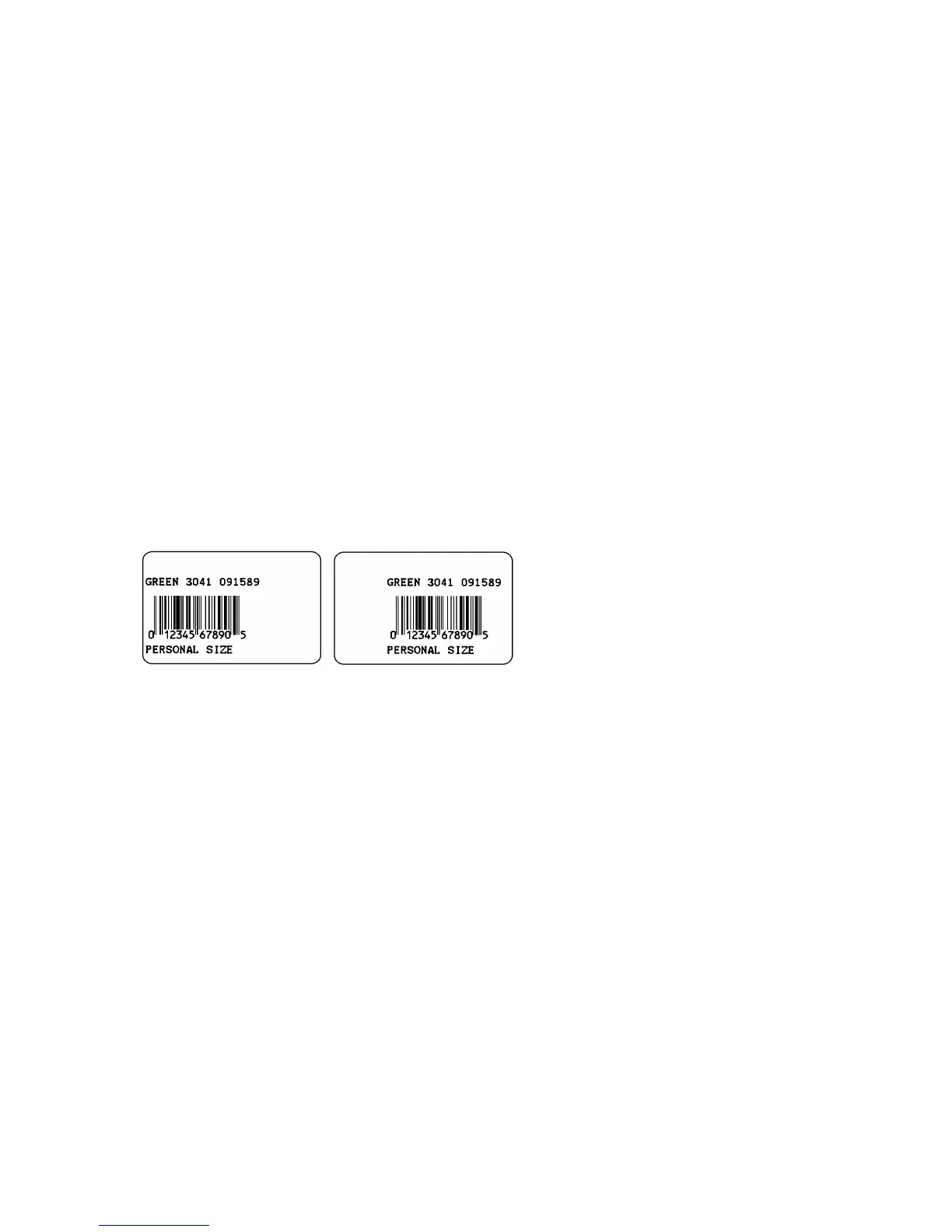

Print too far to the left
Print too far to the right
