Description
03|2022 EN 37
A relay output contact is provided for this. The adapter is inserted
into the BADU OmniTronic housing.
Maximum load: 230 V, 1 A

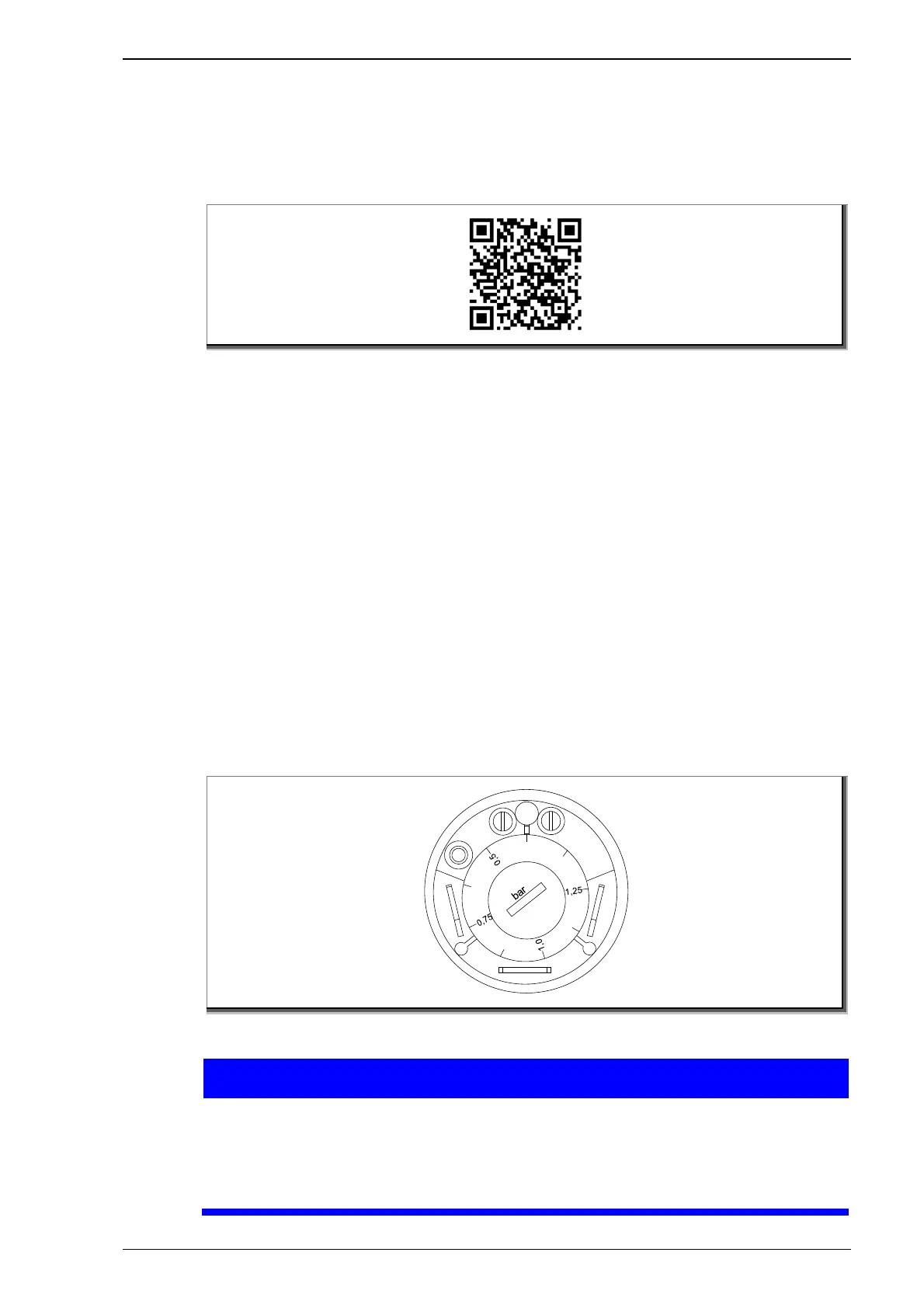

You can watch the installation in a video with the QR code below.
Pos: 36.77 /Tec hnische Dok umentation Sp eck Pumpen/B etriebsanleitung/ Beschreibu ng/BADU Omnitr onic_ BADU Om ni Stellantrie b/Display-Wandmontage @ 10\mod_15083 15842210_370. docx @ 152993 @ 3 @ 1
3.11.5 Display wall assembly
(Article no. 260.6000.001)
This accessory is optionally available i.e. for restricted installation
conditions. The circuit board is placed in a separately prepared
box and connected to the BADU OmniTronic via a special cable
(approx. 2 m). The keypad and display are then easily reached on
the wall.
3.11.6 Pressure switch
(Article no. 2606402087)
The pressure switch must be set to the pressure at which a
backwash cycle should be triggered. This value must be higher
than the filter’s operating pressure.
In doing so, the pressure switch’s terminal points 2 and 3 are
occupied.
Standard range: Pressure transducer +0.5 … +1.5 bar
The pressure converter can be installed directly on the valve
housing. However, if the space between the sand filter and the
BADU OmniTronic is confined, a bracket can be used.
