5.3.8 Connection diagram for a ball valve for solar application via
multifunction relay z7-z8

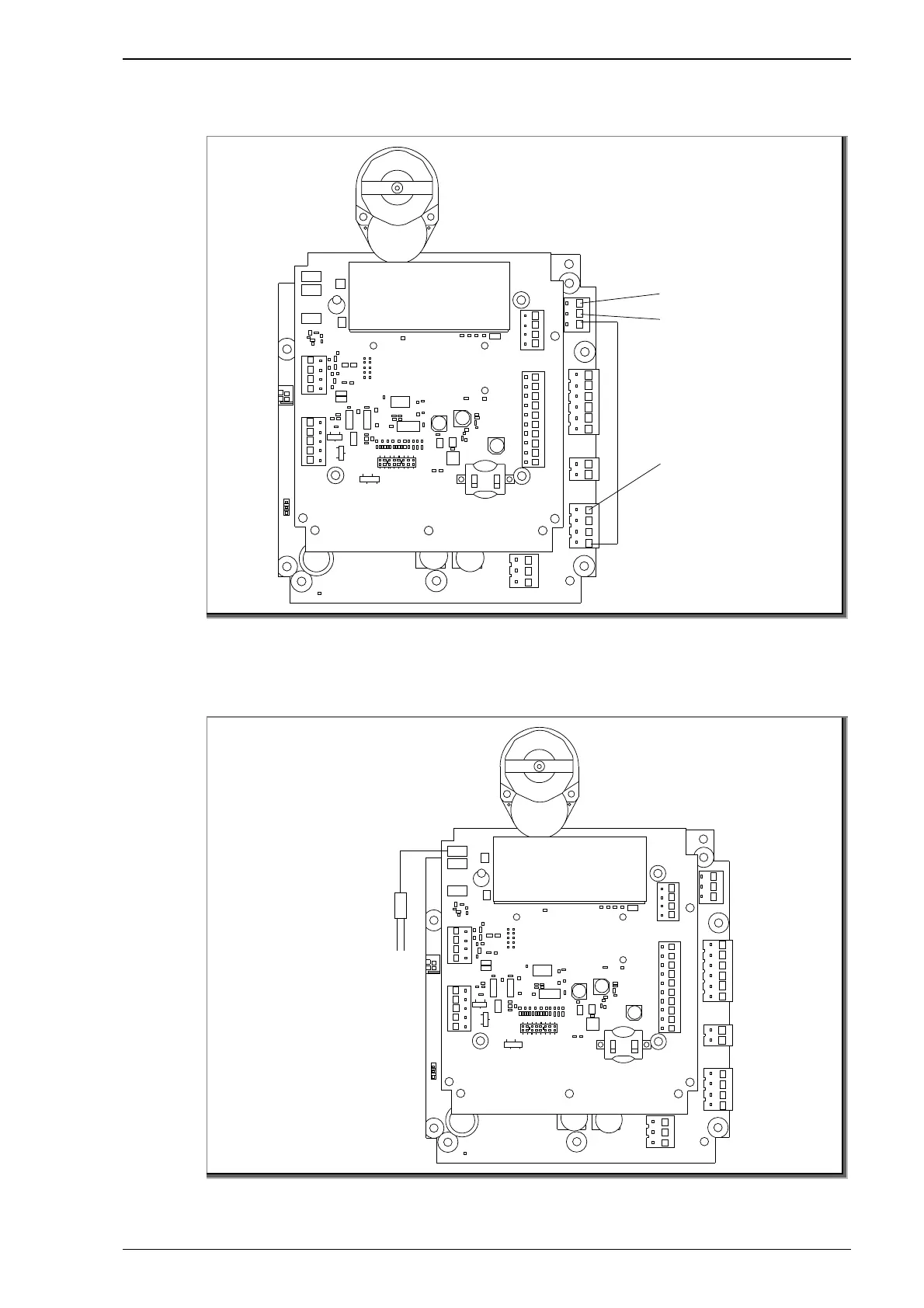

Fig. 12
5.3.9 Connection diagram for an alarm generator in the case of
water on the cellar floor
Fig. 13
WG27.50.179-2-P
3: open
2: close
1: N
230 V ba ll val ve;
article no.:
2500014050 - DN 50
2500014063 - DN 63
WG27.50.180-2-P
water detector
(2716605018)
