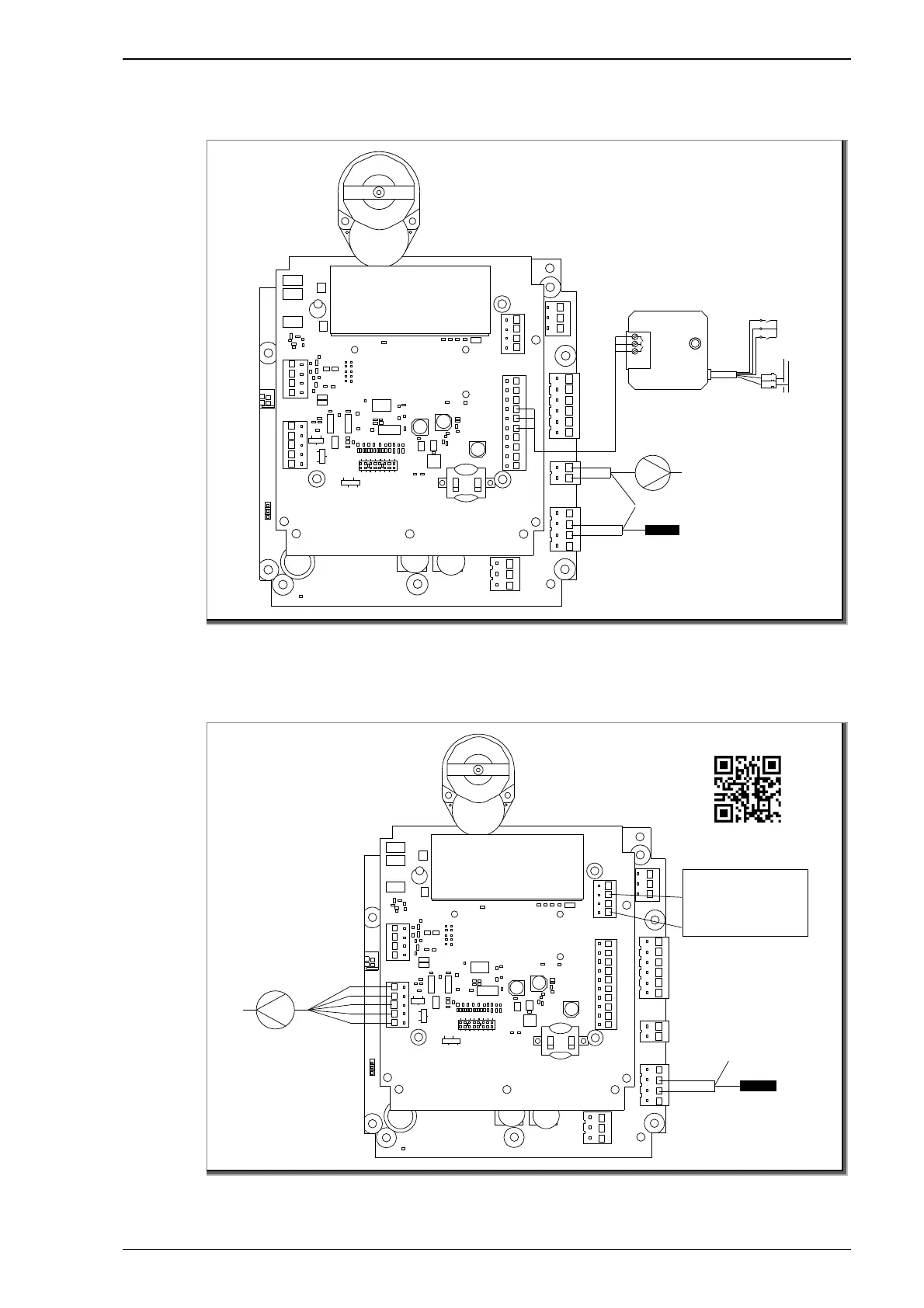

5.3.4 Connection diagram for the BADU Prime pump and KNX
adapter
Fig. 8
5.3.5 Connection diagram for the BADU VS pump and external
filter control
Fig. 9
PE
Bus KNX 30 V DC
Supply (cable with plug
)
WG27.50.11 9 -2-P
S1 S2
KNX+ /RD KNX- /BK IN 1 /GN Com /WH In /YE
S1/S2/Add r.
In 1
Com
In 2
+
-
PE
External filter control (230 V)
L
out
N
out
WG27.50.120-2-P
Supply (cable with plug)
