BADU OmniTronic - Connection Diagram for Float Switch and Magnetic Valve; Connection Diagram in Connection with BADU Eco Drive II; Frequency Converter

Installation
46 EN 03|2022

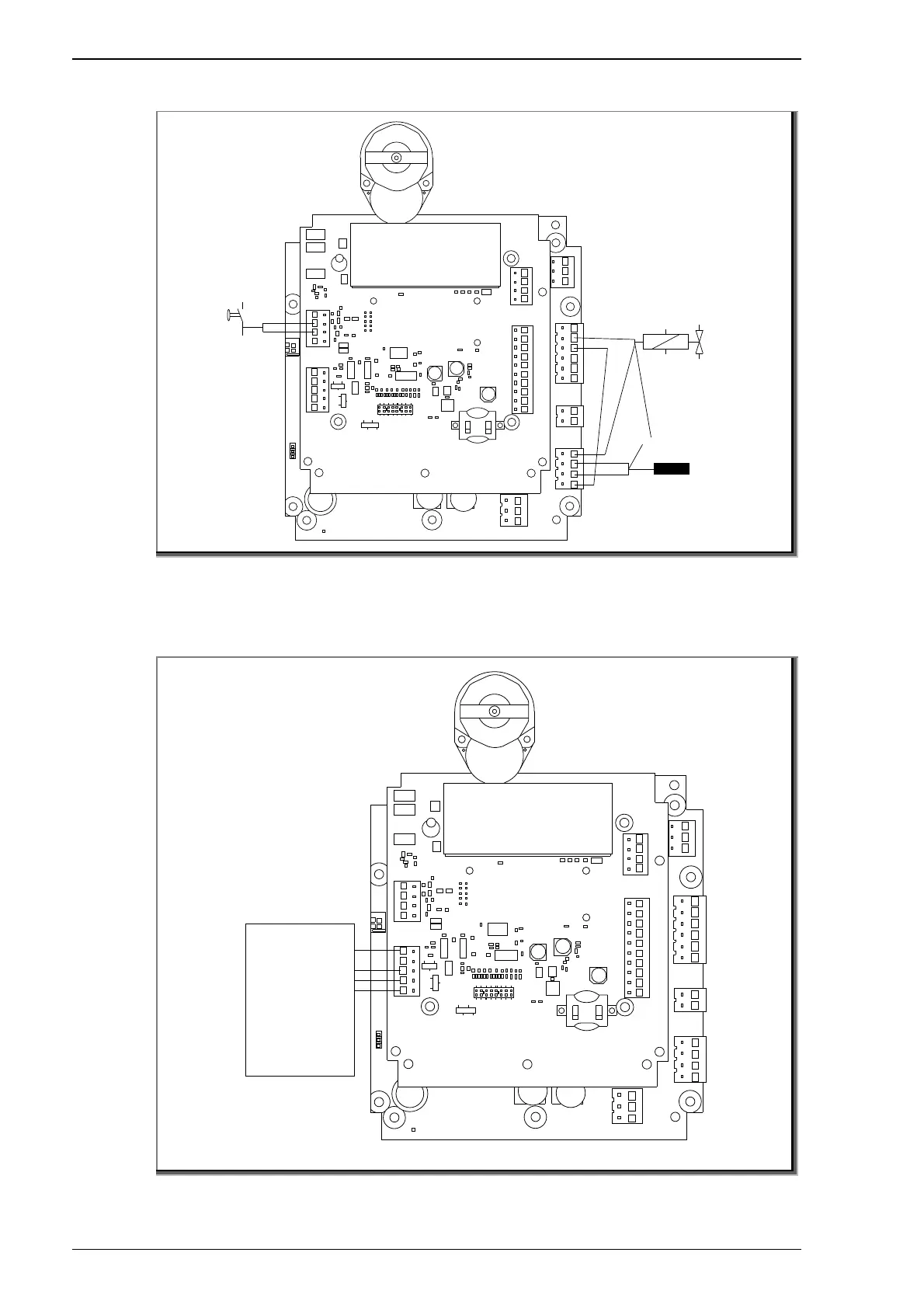

5.3.6 Connection diagram for float switch and magnetic valve
Fig. 10
5.3.7 Connection diagram in connection with BADU Eco Drive II
frequency converter
Fig. 11
G
S1
14
11
N
L
N
L
PE
WG27.50.121-2-P
Supply (cable with plug)
WG27.50.127-2-P
20
29
32
33
BADU Eco Drive II
Parameters
:
Set 5-00 to [1]
NPN & Restart
"Enable" and "Start"
on the Eco Drive must
be connected to 0 V.
