A. Q-12 Base (2 V. P-P)
C. Q-13 Base (1 V. P-P)
1./ \
I I
E. Q-14 Base (13 V. P-P)
u
B. Q-12 Collector (12 V. P-P)
D. Q-13 Collector (25 V. P-P)
F. Sweep Oscillator Voltage at
TP-203, Fig. 12.4 (22 V. P-P)

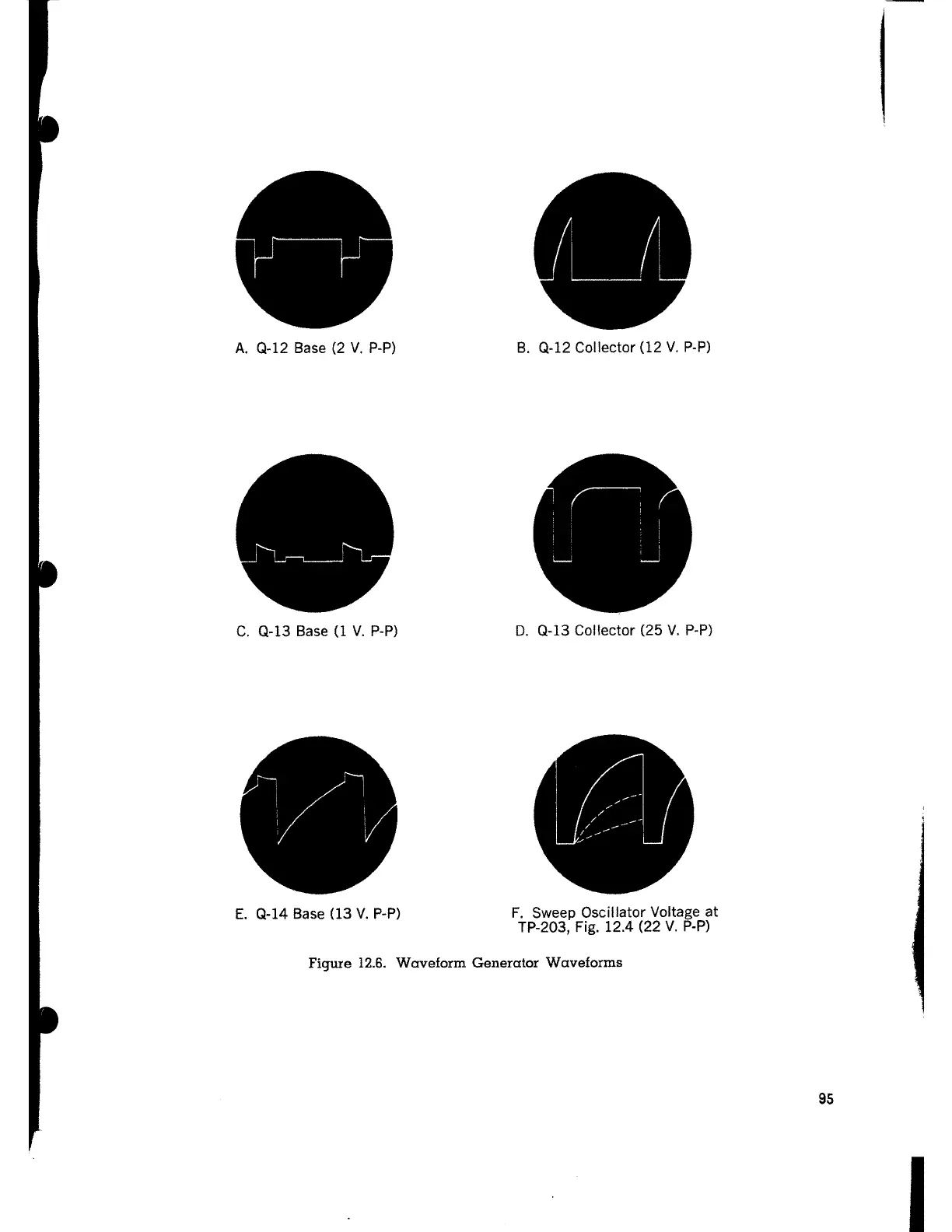

Figure 12.6. Waveform Generator Waveforms
95
