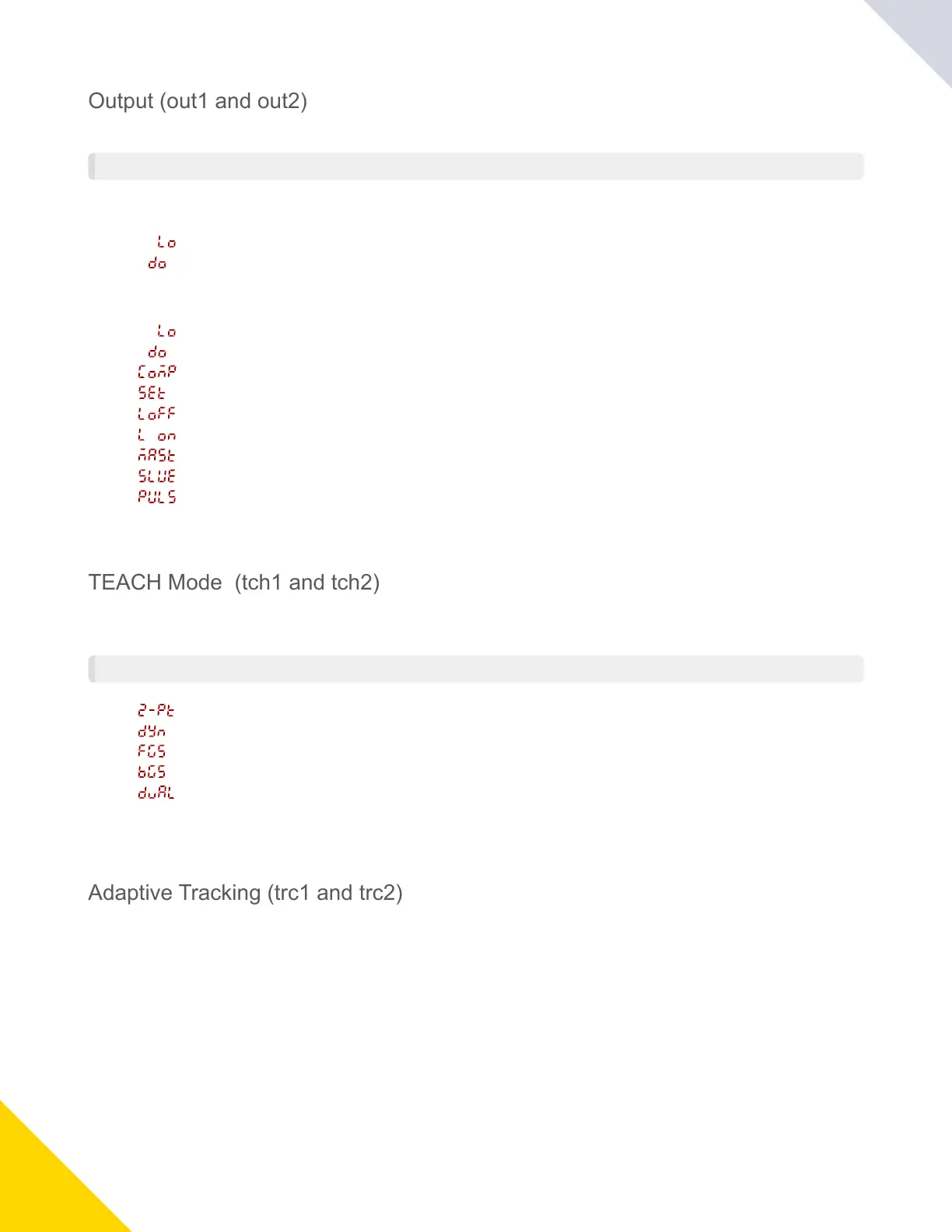

Output (out1 and out2)
TheOutput1andOutput2menusdifferbetweenChannel1andChannel2.
NOTE: Thenumberthatfollowsoutonthedisplayindicateswhichchannelisselected.
The Output 1 menu is available in Channel 1. Use this menu to select light operate (LO) or dark operate (DO). The default
output configuration is light operate. To switch between light operate and dark operate, select the desired menu option.
—Lightoperate
—Darkoperate
The Output 2 menu is available in Channel 2. Use this menu to set the output configuration for Channel 2. The default is light
operate.
—Lightoperate
—Darkoperate
—Complementarytooutput1
—RemoteTEACHinput
—Laseroffwhenpulledhigh
—Laseronwhenpulledhigh
—Mastersynclineoutputfortwosensorcrosstalkavoidance
—Slavesynclineoutputfortwosensorcrosstalkavoidance
—PulseFrequencyModulation(PFM)output(see"PulseFrequencyModulation(PFM)Output(PULS)" on
page 36)
Toconfigurethesensorformasterslaveoperation,see"SyncMaster/Slave" on page 36.
TEACHMode(tch1andtch2)
UsethismenutoselecttheTEACHmode.
ThedefaultistwopointTEACH.For Channel 2, this menu is available when the output is set to light operate or dark operate.
NOTE: Thenumberthatfollowstchonthedisplayindicateswhichchannelisselected.
—Twopointstaticbackgroundsuppression
—Dynamicbackgroundsuppression
—Onepointwindow(foregroundsuppression)
—Onepointbackgroundsuppression
—Dual(intensity+distance)window
AftertheTEACHmodeisselected,fromRunmode,pressandholdTEACHforlongerthan2secondstostarttheTEACH
modeandprogramthesensor.See"TEACHProcedures" on page 29foradditionalinformationandremoteinputTEACHin
structions.
Adaptive Tracking (trc1 and trc2)
In adaptive tracking mode, the laser intensity changes to compensate for a loss in excess gain - normally caused by a dirty
lens.
When operating in dual mode, the Adaptive Tracking Algorithm adjusts the switching thresholds (distance and intensity)
aroundataughtreferencesurface.Adaptivetrackingadjustsforsmallvariationsinthereferencesurfacetomaintainacon
sistent 100P (100%) on the display and to ensure reliable detection. The Adaptive Tracking menu is only available when
TeachCh1issettoDualMode.
Adjustment of the thresholds only occurs when the reference surface is visible to the senor (that is, no target is present). The
Adaptive Tracking Algorithm can reduce or eliminate the need to periodically re-teach the sensor as environmental conditions
changearoundthesensor.
Enable or disable the Adaptive Tracking Algorithm from the sensor menu. The appropriate speed depends on the application.
Thismenuisavailableonlyifdual(intensity+distance)modeisselected.ForChannel2,theoutputmustbesettolightoper
ate or dark operate.
