Q5X With Dual Discrete Outputs And IO-Link Instruction Manual


9
Chapter Contents
Sensor Orientation for the Triangulation Models................................................................................................................................................. 9
Mount the Device .............................................................................................................................................................................................. 10
Wiring Diagram.................................................................................................................................................................................................. 10
CleaningandMaintenance................................................................................................................................................................................ 11
ConnectingtoRSD1.......................................................................................................................................................................................... 11
Button Map from RSD1 to Sensor..................................................................................................................................................................... 13


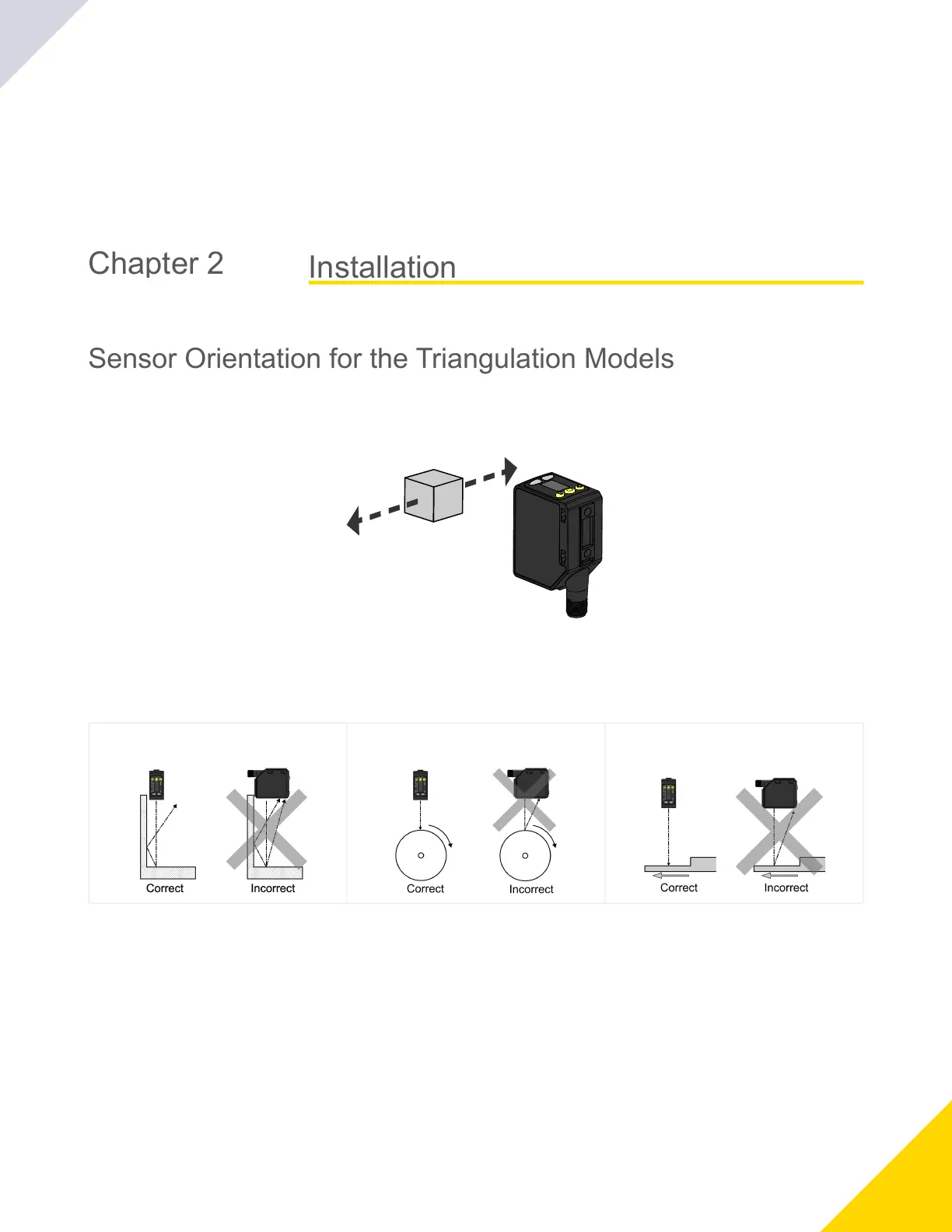

Sensor Orientation for the Triangulation Models
Optimizedetectionreliabilityandminimumobjectseparationperformancewithcorrectsensortotargetorientation.
Toensurereliabledetection,orientthesensorasshowninrelationtothetargettobedetected.
OptimalOrientationofTargettoSensor
See the following figures for examples of correct and incorrect sensor-to-target orientation as certain placements may pose
problemsforsensingsometargets.TheQ5Xcanbeusedinthelesspreferredorientationandatsteepanglesofincidence
andstillprovidereliabledetectionperformanceduetoitshighexcessgain.Fortheminimumobjectseparationdistancere
quiredforeachcase,referto"Q5X Dual Discrete with IO-Link Performance Curves" on page 43.
Orientationbyawall Orientation for a moving object Orientation for a height difference
Continued on page 10
Installation
Chapter 2
© Banner Engineering Corp.
