The size of the black level area is calculated automatically from the blend zones. This is done by using the
start position and size of each edge of the blend and adding an additional size of 8 pixels to reduce the effect
known as "sea of mirrors".
You can also specify the offsets manually by turning off the automatic calculation. The black level value is
adjusted in a 16–bit resolution from 0 to 65535.
The following figure shows how this occurs in a side by side configuration without any correction of the black
level.

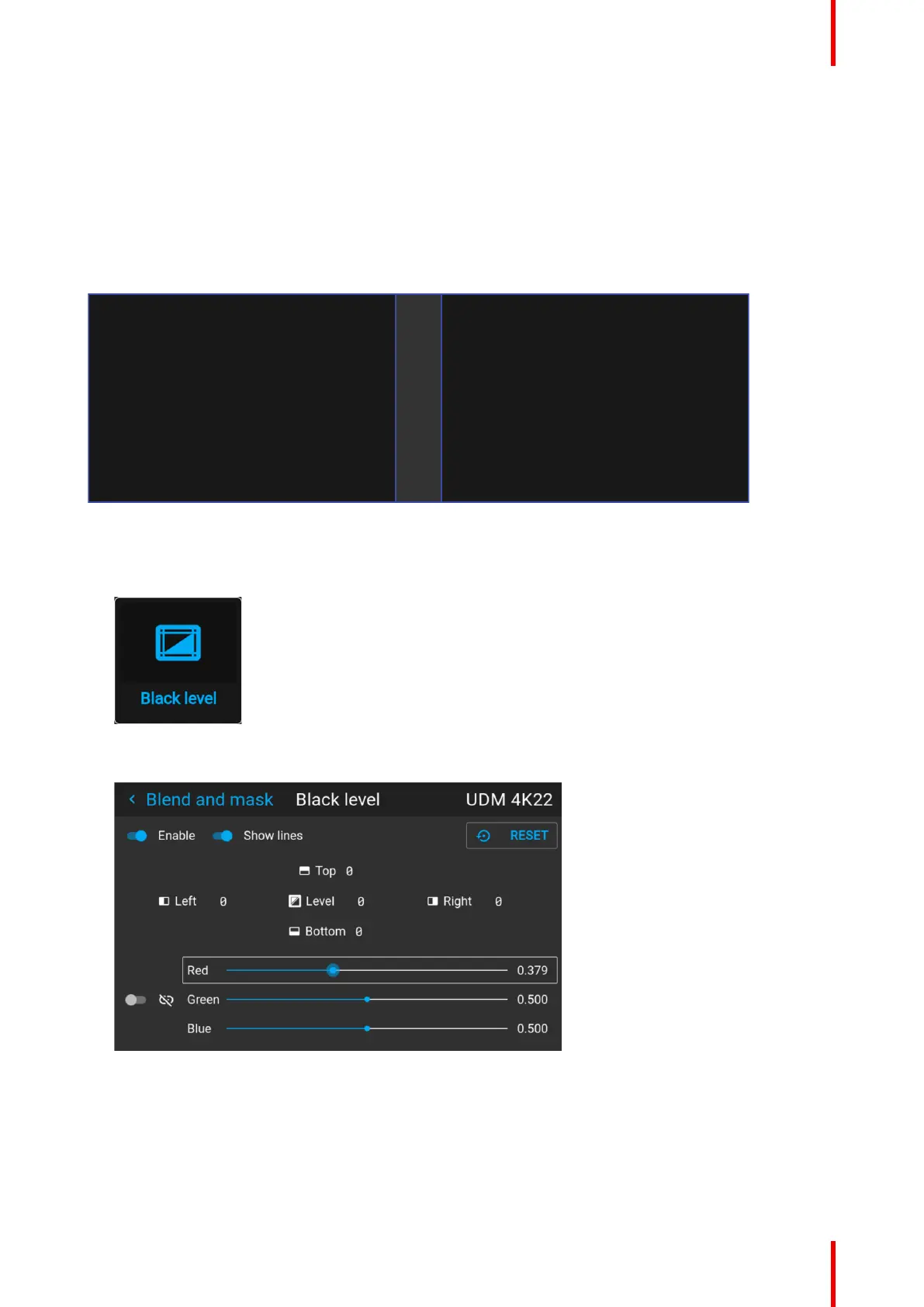

Picture Left Picture RightBlend Zone
Image 8–67
How to adjust the black level manually
1. In the main menu, select Installation → Blend and Mask → Black Level.
Image 8–68 Blend and Mask menu, Black level
The Basic black level menu is displayed.
Image 8–69 Example of the default black level menu
2. Enable the Black level slider. If you want a visual aid, enable the Show lines slider as well.
3. Move the cursor to the side where the overlapped area occurs (Top, Left, Right or Bottom) and press
enter.
4. Adjust the level with the arrow keys and press enter when the desired black level zone is reached.
or
GUI – Installation
To Next Page
