143R5906852 /09 F80
Multiple selections are possible.
3. Select RESET SELECTED and confirm with OK to reset all selected settings.
10.15 Lens Calibration
How to calibrate
1. In the main menu, Settings → Maintenance → Lens Calibration.

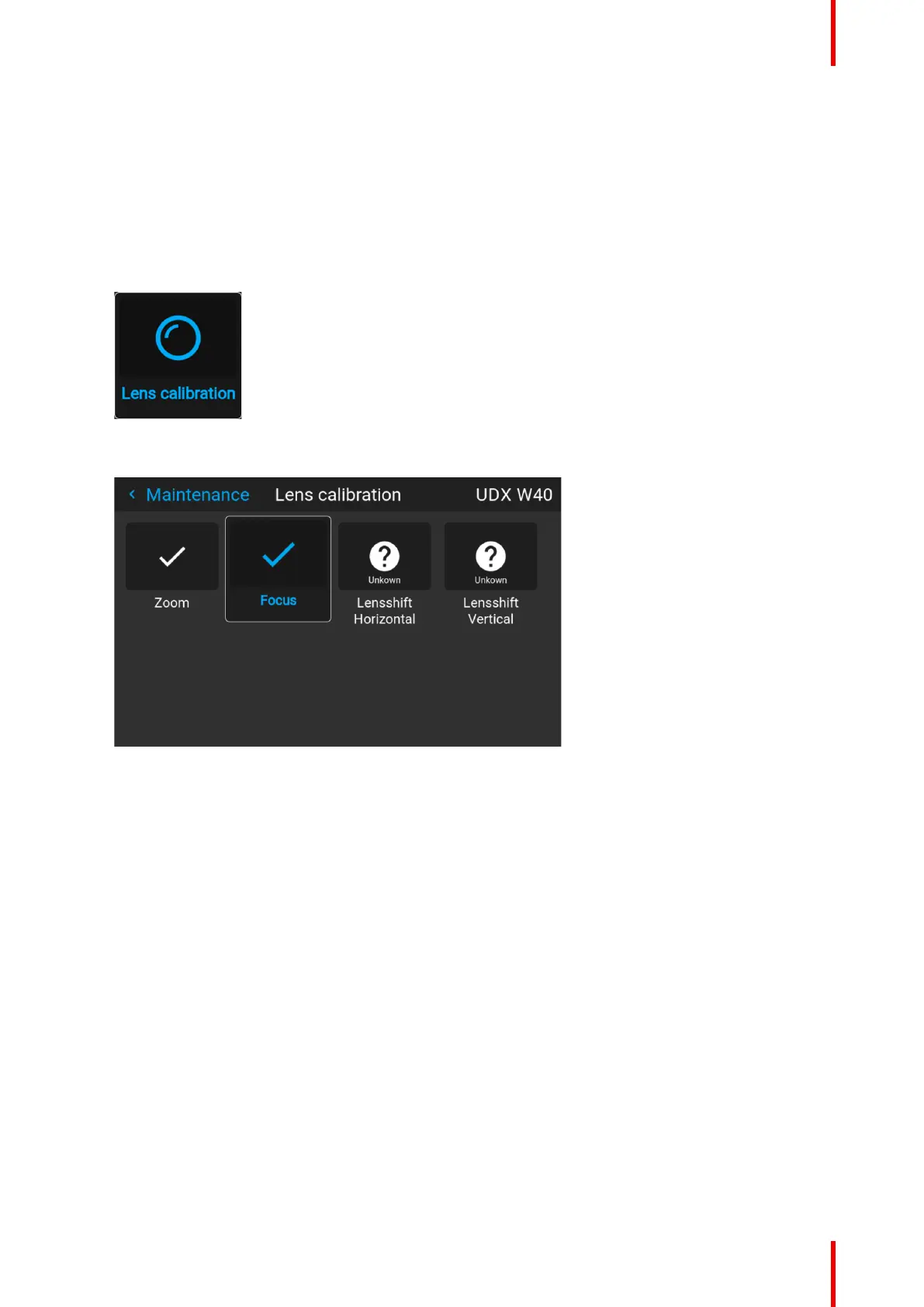

Image 10–45 Maintenance menu, lens calibration
The Lens Calibration menu is displayed, alongside the status of each
Image 10–46 Example of the lens calibration menu
2. In the Lens Calibration menu, select the desired calibration action and click OK.
You can select one of the following functions, depending on the type of mounted lens:
• Horizontal lens shift
• Vertical lens shift
• Focus
• Zoom
The text Calibrating will be displayed in the icon of the selected function until the calibration is completed.
GUI – System Settings
