R5906852 /09 F80174

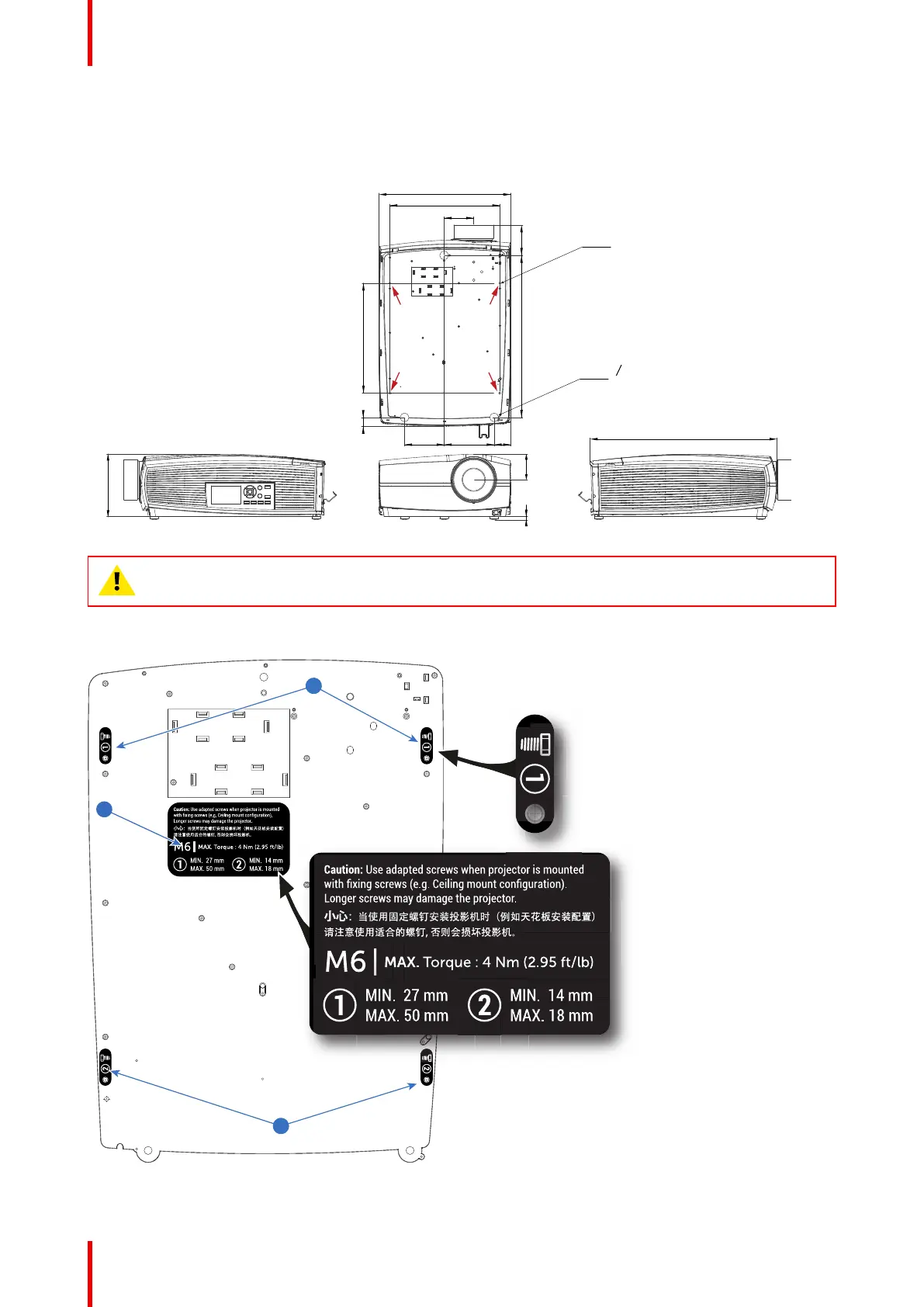

A.7 Dimensions of a F80
Overview
680
227
93
12
589
32
110,5
144 182 60
400
107,5
400
480
4x M6 (Fixation Points
on 400 X 400 Rectangle)
3x M8 (O32 Feet screwed in hole)
Image A–1 Dimensions, in mm
CAUTION: Take care to not exceed the maximum recommended tightening torque on the fixing
screws. Use a torque of 4 Nm for the M8 screws and the M6 screws.
Fixation points
2
3
1
Image A–2
