131R5906852 /09 F80

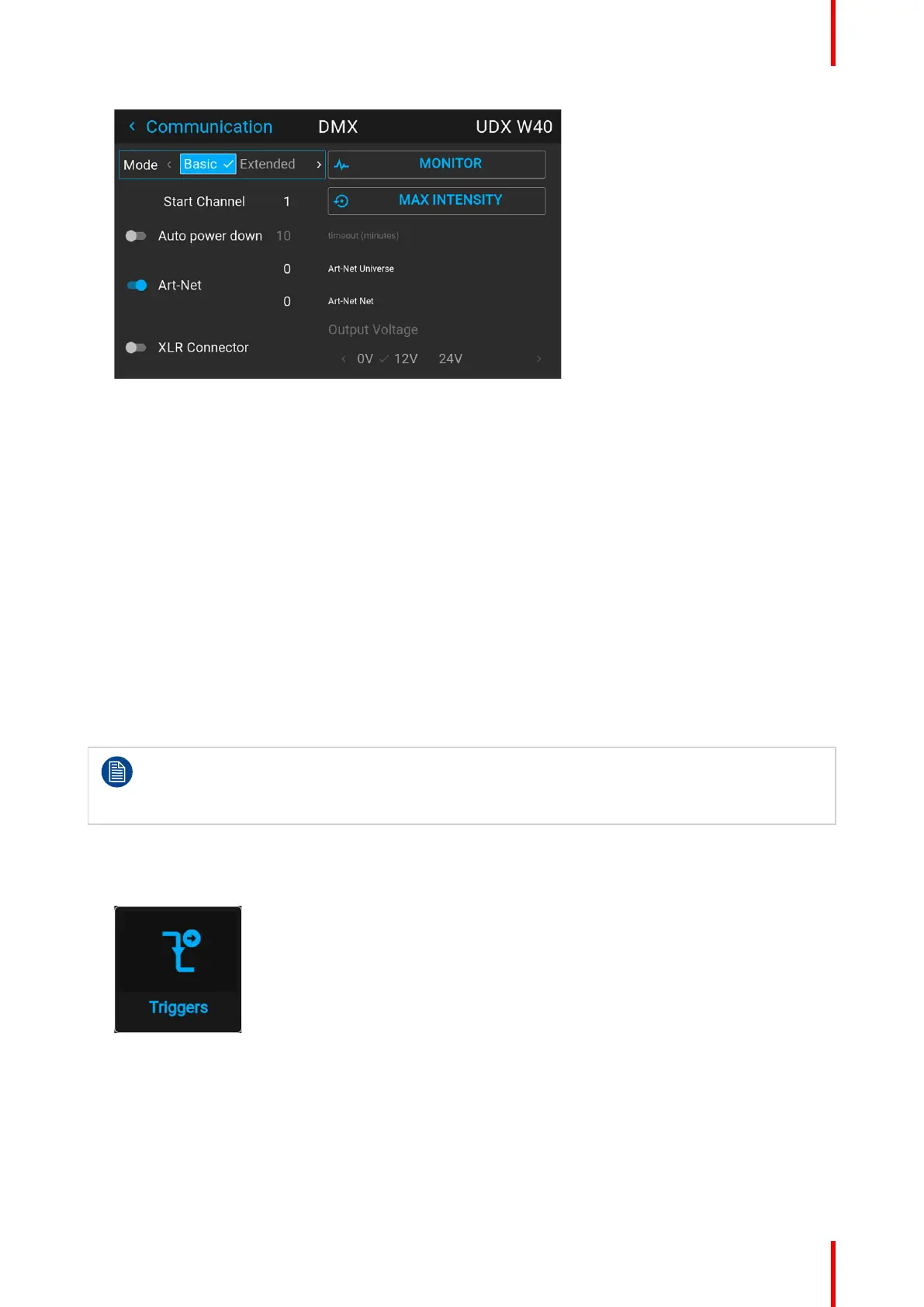

Image 10–20 Example of the DMX menu
2. Choose the desired DMX mode.
3. Choose the desired starting channel.
4. Choose whether or not you want the Auto power-down feature to be enabled. If enabled, determine the
time-out.
5. If required, enable Art-Net. If enabled, determine the desired Art-Net Universe and Art-Net channel.
6. If a front XLR connector is available on your projector, you can enable the output voltage on this
connector.
10.5 Trigger outputs control
About the trigger outputs
There are two triggers on the projector, located on the connection panel of the projector. These outputs can be
used for controlling external equipment, like motorized screens, curtains, etc.
The trigger outputs can be individually set to active low or active high.
Regarding the Trigger Output: If these outputs are loaded too heavy, there is a risk that the projector
will go in reset mode, and restart. This causes no damage to the projector, but is an undesirable
response. This will also happen if the startup current for the external equipment is too high, even
though the nominal power consumption is less than 0,5A.
How to enable or disable
1. In the main menu, select System Settings → Communication → Triggers.
Image 10–21 Communication menu, Triggers
The Triggers menu is displayed.
GUI – System Settings
