Default after (re)placing batteries, is “ON”.
1
Image 3–8
3.9 Using the RCU

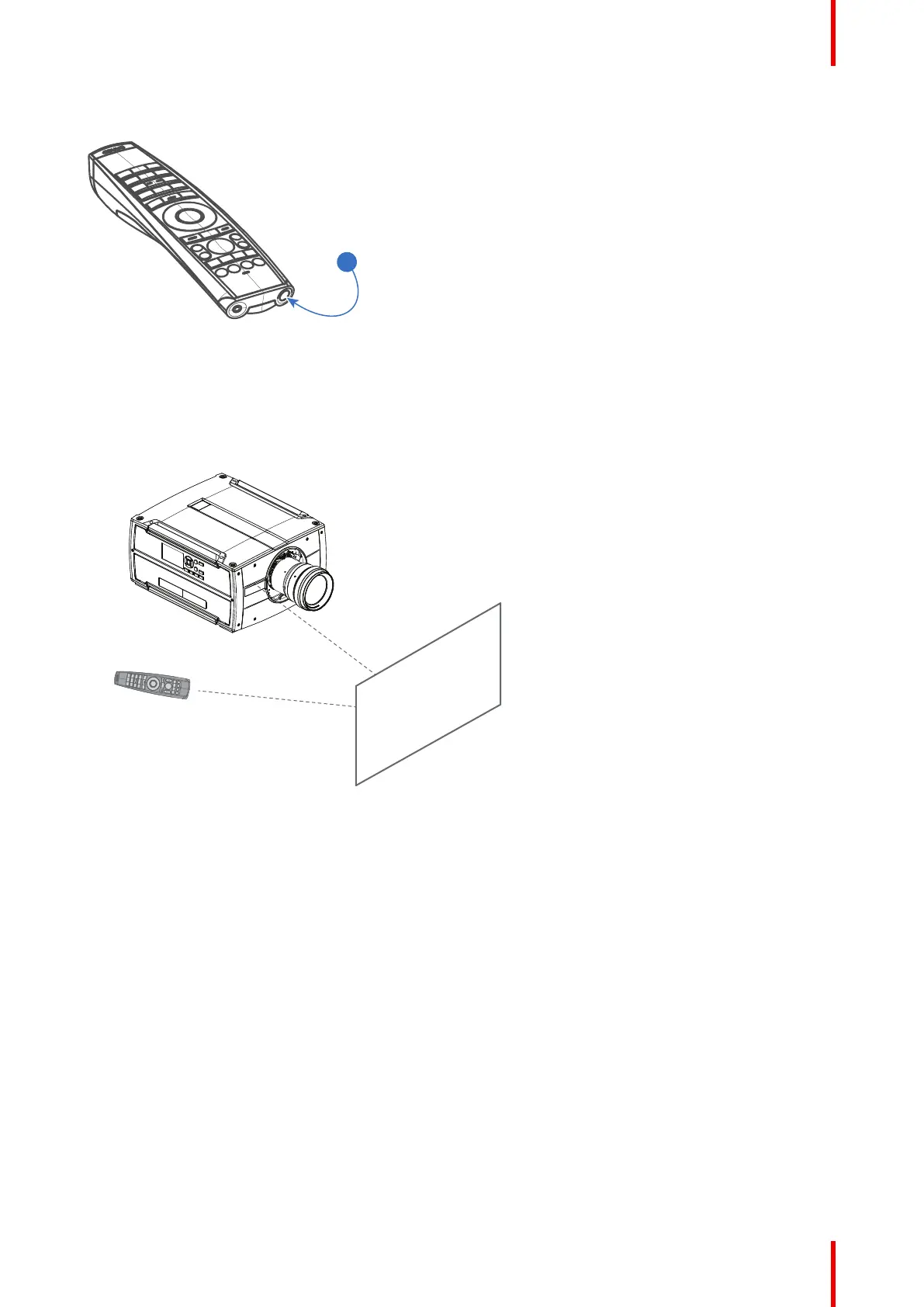

Pointing to the reflective screen
1. Point the front of the RCU to the reflective screen surface.
Image 3–9
Hardwired to the mini jack input
1. Plug one end of the remote cable in the connector on the front side (3,5mm mini jack) of the RCU.
2. Plug the other end in the connector on the communication interface of the projector, labelled ‘Remote
CTRL’(reference 1, Image 3–10).
Remote Control Unit
