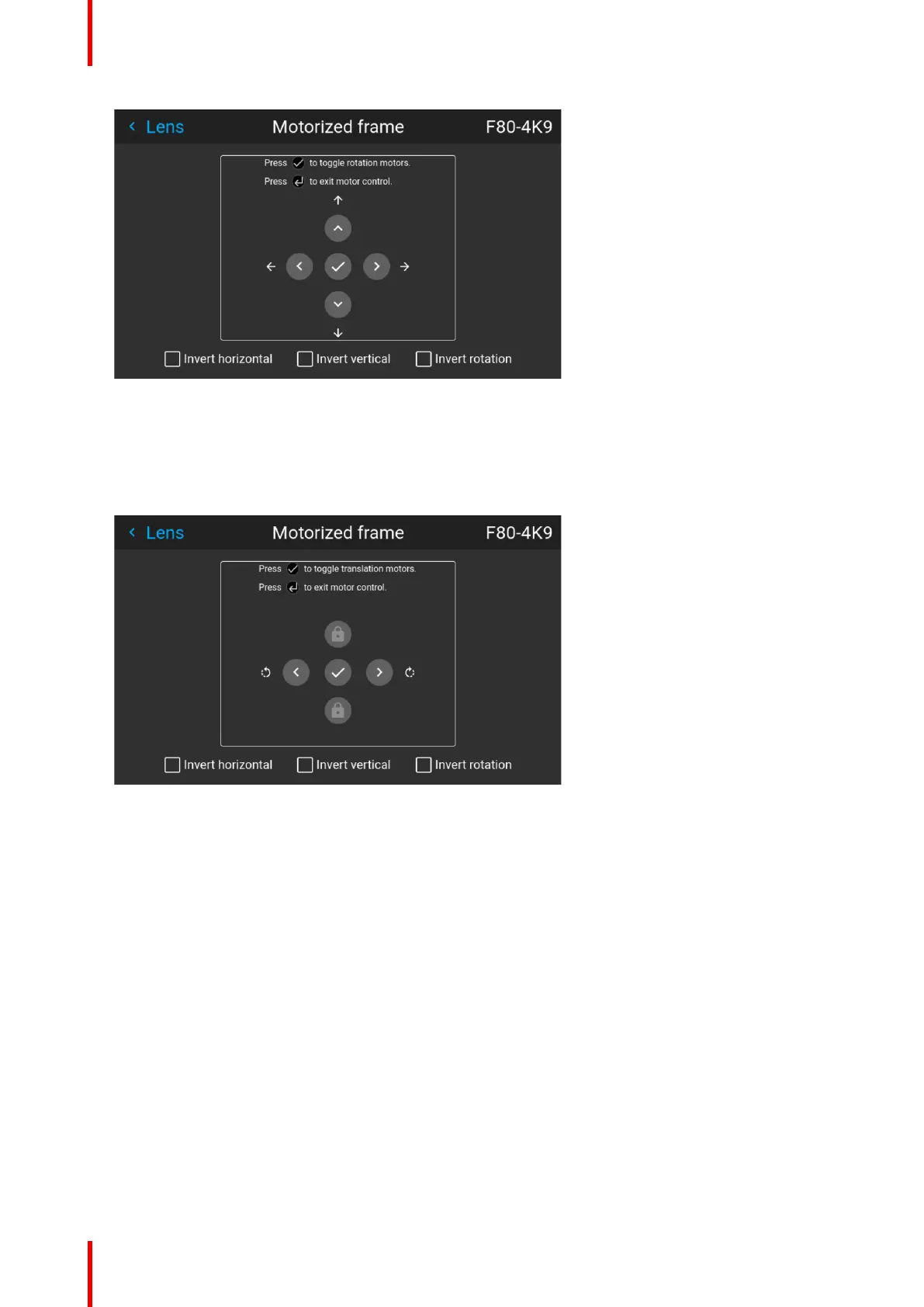

Image 8–11 Example of horizontal and vertical frame shift
3. Use the ▲ or ▼ button to shift the rigging frame (image) in vertical direction.
Use the ◄ or ► button to shift the rigging frame (image) in horizontal direction.
4. Confirm with the OK button.
The frame rotation menu is displayed.
Image 8–12 Example of frame rotation
5. Use the ◄ or ► button to rotate the rigging frame (image) either clockwise or counterclockwise.
6. Confirm with the OK button to return to the frame shift menu, or use the Menu back button to return to the
Lens menu.
8.6 Manipulating the rigging frame, center position
What can be done?
The motorized frame can be forced back to the center position by selecting Center motorized frame.
How to reset the motorized frame?
1. In the main menu, select Installation → Lens → Center motorized frame.
GUI – Installation
To Next Page
