129R5906852 /09 F80
The HDBaseT
TM
menu is displayed.

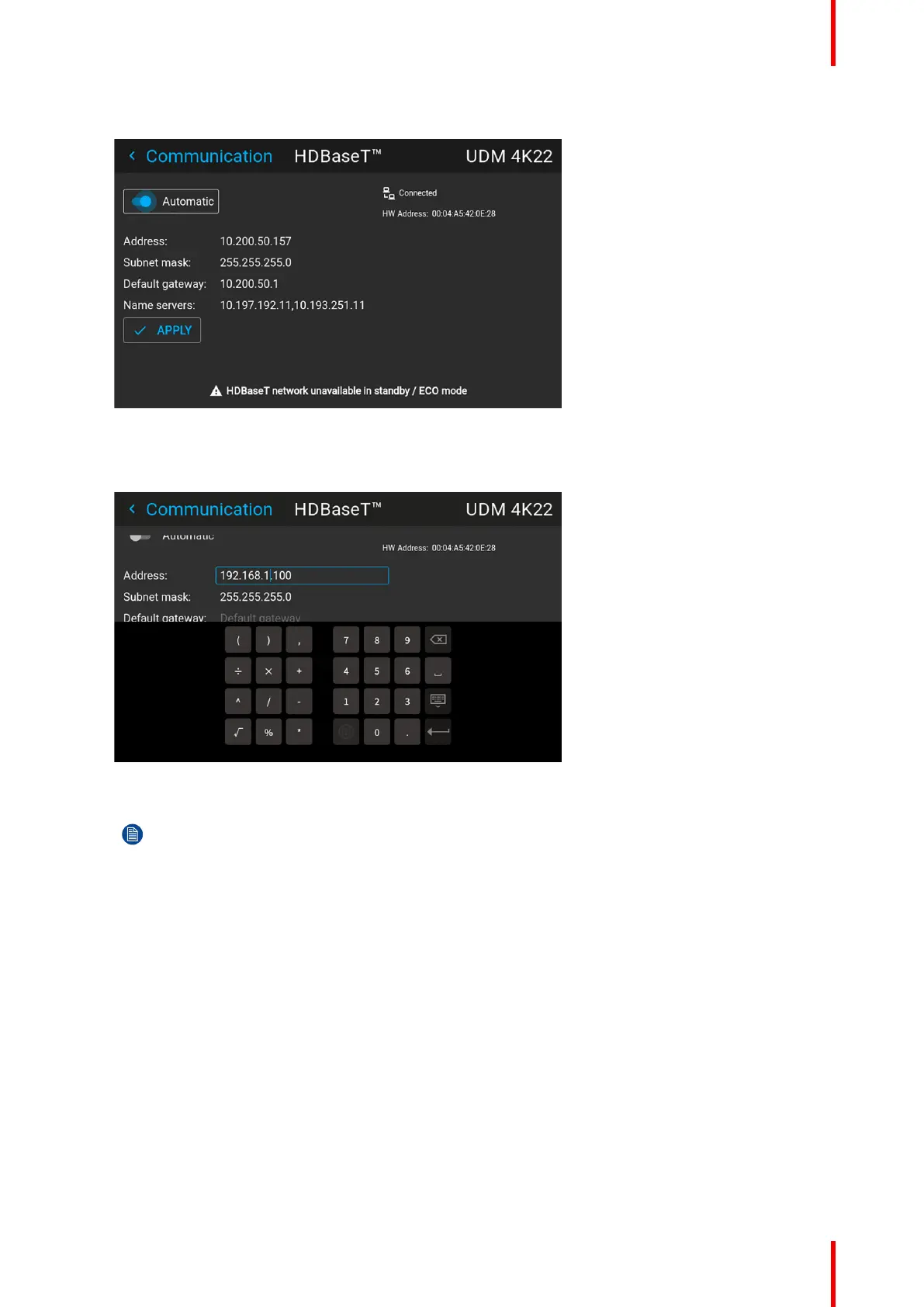

Image 10–17 Example of the HDBaseT
TM
menu
2. Disable the Automatic slider. The slider becomes gray.
3. Use the arrow keys to select Address and press OK button to activate the input box.
Image 10–18 Example of entering the IP address
4. Use the arrow keys and enter key to enter in the IP address.
Note: Digits can be entered with the digit keys on the remote control or the local keypad. When a
digit is entered in that way, the next character will be selected automatically.
5. Once filled in, select the Enter symbol and confirm.
6. Repeat steps 4 and 5 for the Subnet mask and Default Gateway.
7. Select APPLY and click OK to confirm all changes.
When the connection is established, it is indicated with the connection symbol and the indication
Connected.
10.4 DMX
About the ways to control the projector via DMX
DMX signals can be connected to the DMX In port on the communicator interface when using a standard DMX
cable equipped with XLR connector. The DMX out can be used to create a chain of DMX devices. One
universe can control up to 512 channels.
