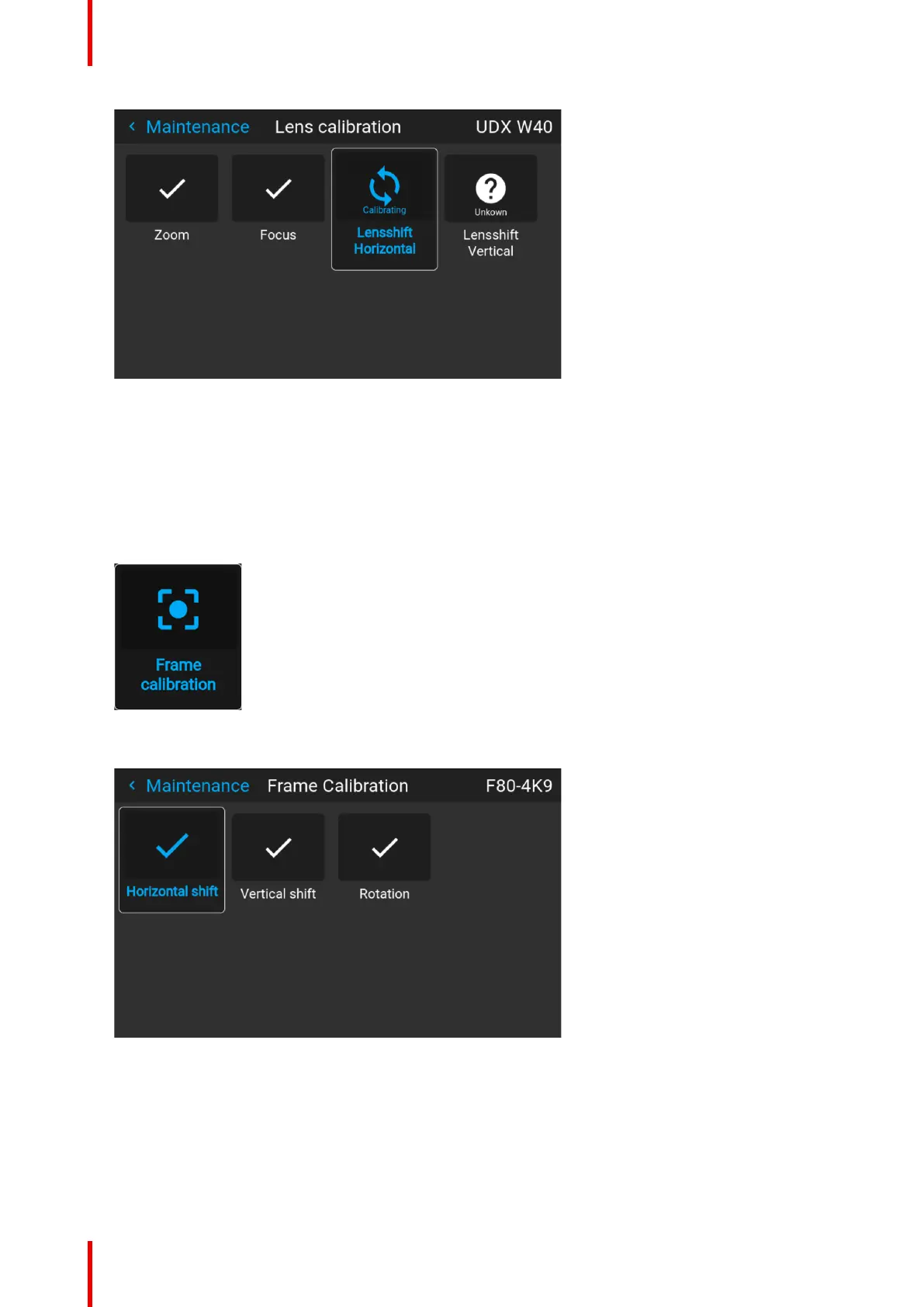

Image 10–47 example of calibration in progress
When an error is detected, the message Calibration Error is displayed next to function.
10.16 Rigging frame Calibration
How to calibrate the motorized rigging frame
1. In the main menu, select Settings → Maintenance → Frame Calibration.
Image 10–48 Maintenance menu, Frame calibration
The Frame calibration menu is displayed.
Image 10–49 Example of the Frame calibration menu
2. In the Frame Calibration menu, select the desired calibration action and click OK.
You can select one of the following functions:
• Horizontal shift
• Vertical shift
• Rotation
GUI – System Settings
