25R5906852 /09 F80

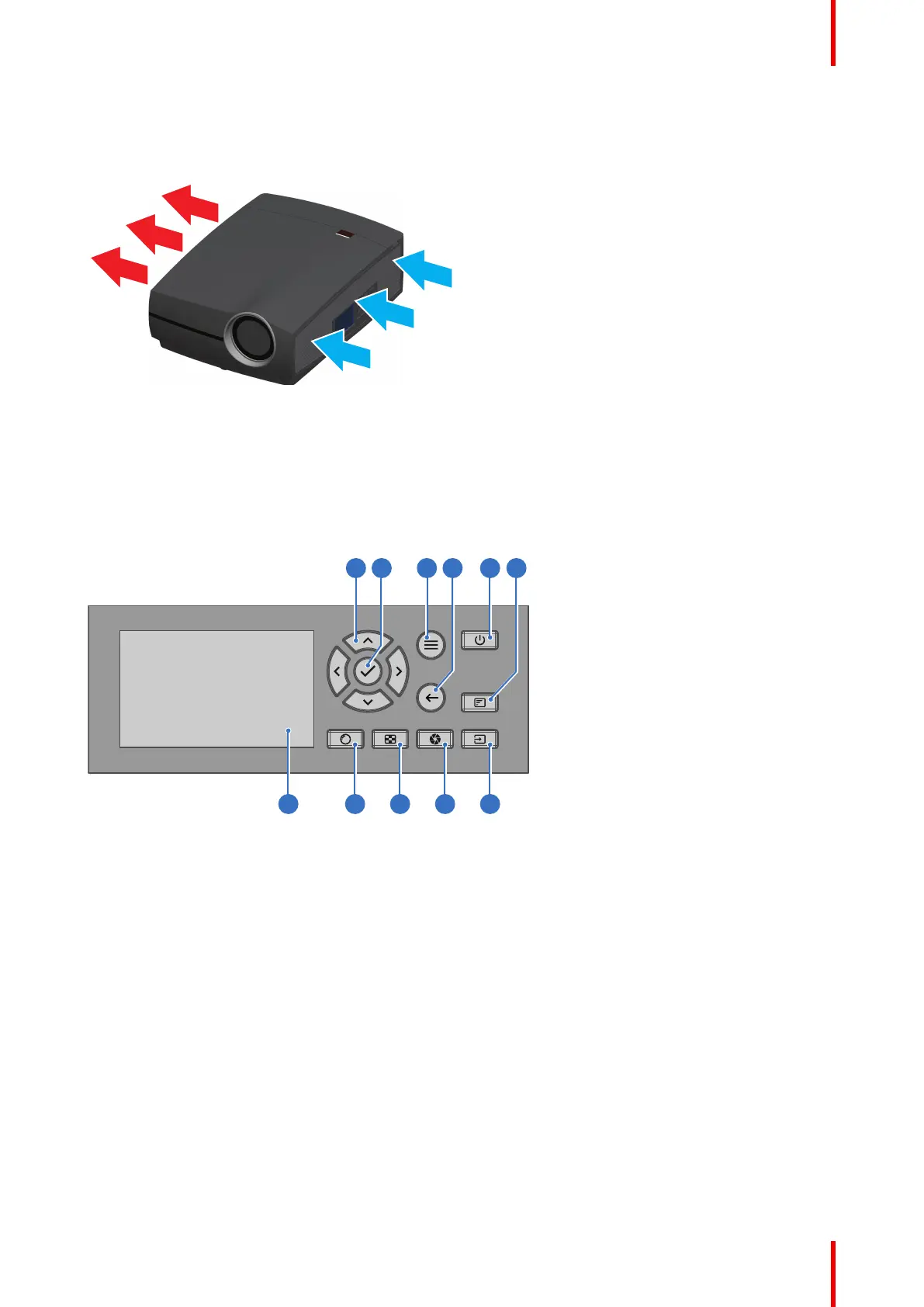

2.2 Projector air inlets and outlets
Air inlets and outlets
Image 2–3
The F80 has 1 air inlet channel and 1 air outlet. The air outlet is located at the right side of the projector. The
air inlet is located at the left side of the projector.
2.3 Local Keypad and LCD panel
Overview
Image 2–4
1 Menu navigation
2 Menu confirmation, OK button
3 Menu open / close
4 Menu back
5 Power on / off
6 Project OSD on / off
7 Input selection
8 Shutter open / close
9 Test patterns
10 Lens adjustment
11 LCD panel
Local Keypad
The Keypad gives direct access to several functions, in addition to access to the menu system.
The keypad has a backlight that can be switched on and off manually. By default the light turns off after 5
minutes.
The Power button and Shutter buttons are equipped with white, blue and red backlit LEDs. The other keys are
only equipped with white and blue backlit LEDs. The LEDs are controlled according to the features available.
LCD panel
The LCD panel has two main functions:
1. Showing the menus, the adjustment information and also a mirror of the OSD, (On Screen Display)
described in User Interface when this is enabled.
