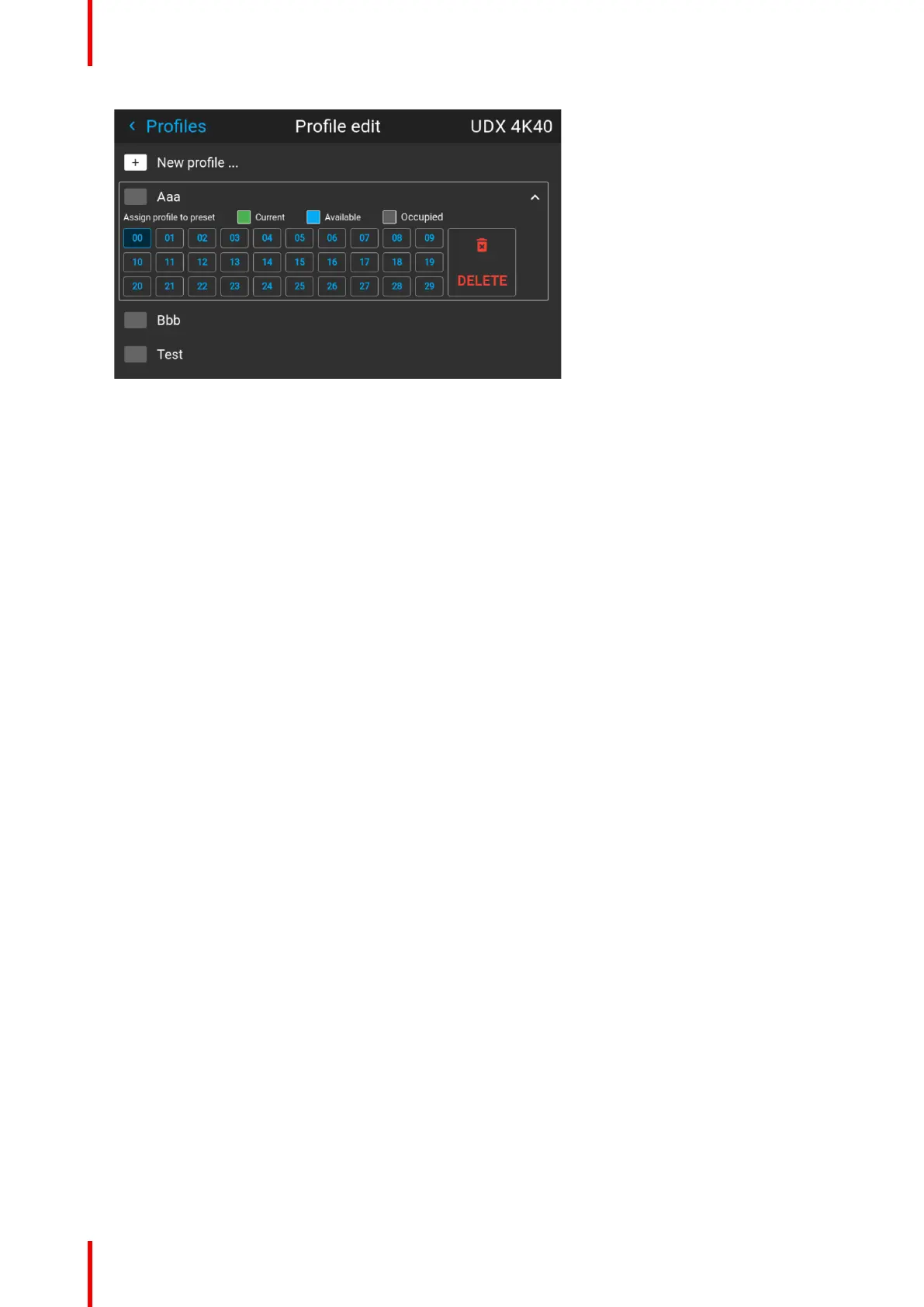

Image 9–10 Example of a projector profile with available preset slots

3. Use the arrow keys to select Delete and confirm. confirm the delete action.
