127R5906852 /09 F80

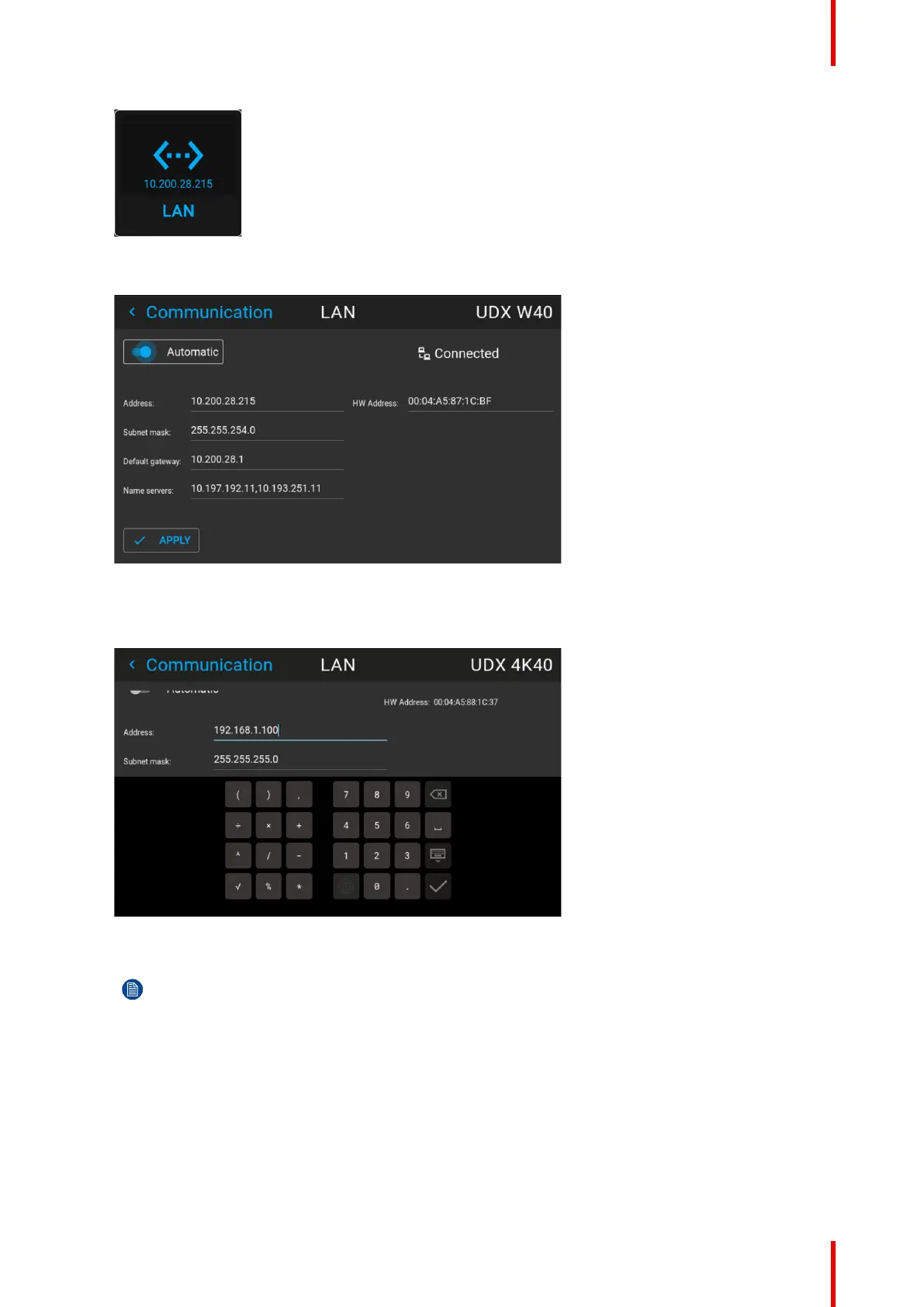

Image 10–11 Communication menu, LAN
The LAN menu is displayed
Image 10–12 Example of the LAN menu
2. Disable the Automatic slider. The slider becomes gray.
3. Use the arrow keys to select Address and press OK button to activate the input box.
Image 10–13 Example of entering the IP address
4. Use the arrow keys and enter key to enter in the IP address.
Note: Digits can be entered with the digit keys on the remote control or the local keypad. When a
digit is entered in that way, the next character will be selected automatically.
5. Once filled in, select the ✓ symbol and confirm.
6. Repeat steps 4 and 5 for the Subnet mask and Default Gateway.
7. Select APPLY and click OK to confirm all changes.
When the connection is established, it is indicated with the connection symbol and the indication
Connected.
GUI – System Settings
