59R5906852 /09 F80
The table below describes the different Stitch Layouts and scan directions.
Type of layout Description
Available connectors Mode
: Single
A single source is displayed in
full screen
• SDI
• HDBaseT
• DisplayPort (x2)
• Dual link DVI-D (x2)
• HDMI
Mono / Active
stereo
: Dual 1 x 2
Two inputs are required. The
sources are displayed next to
each other.
• 2x DisplayPort
• 2x dual link DVI-D
Mono / Active
stereo
: 2 x single
Two inputs are required. The
sources are displayed one
above the other.
• 2 x DisplayPort
• 2x dual link DVI-D,
Passive stereo

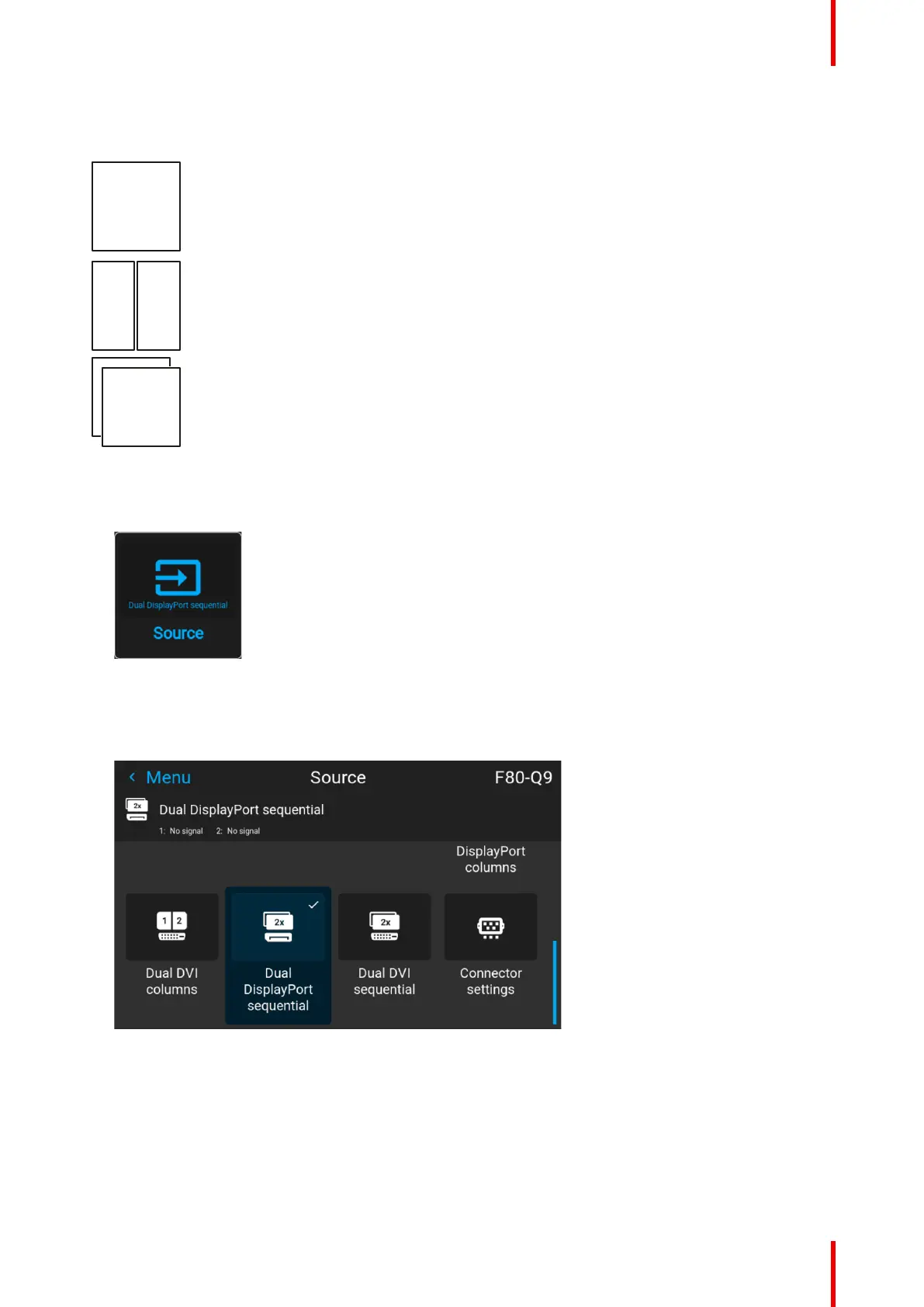

How to select a stitched layout
1. Press Menu to activate the menus and select Source.
Image 6–3 Select source
2. Press OK.
The Select Source menu is displayed with the actual available sources filled out, including all available
stitched layout options.
Image 6–4 Input selection menu, the stitched options
3. Select the desired stitched input.
GUI – Source
