R5906852 /09 F8070

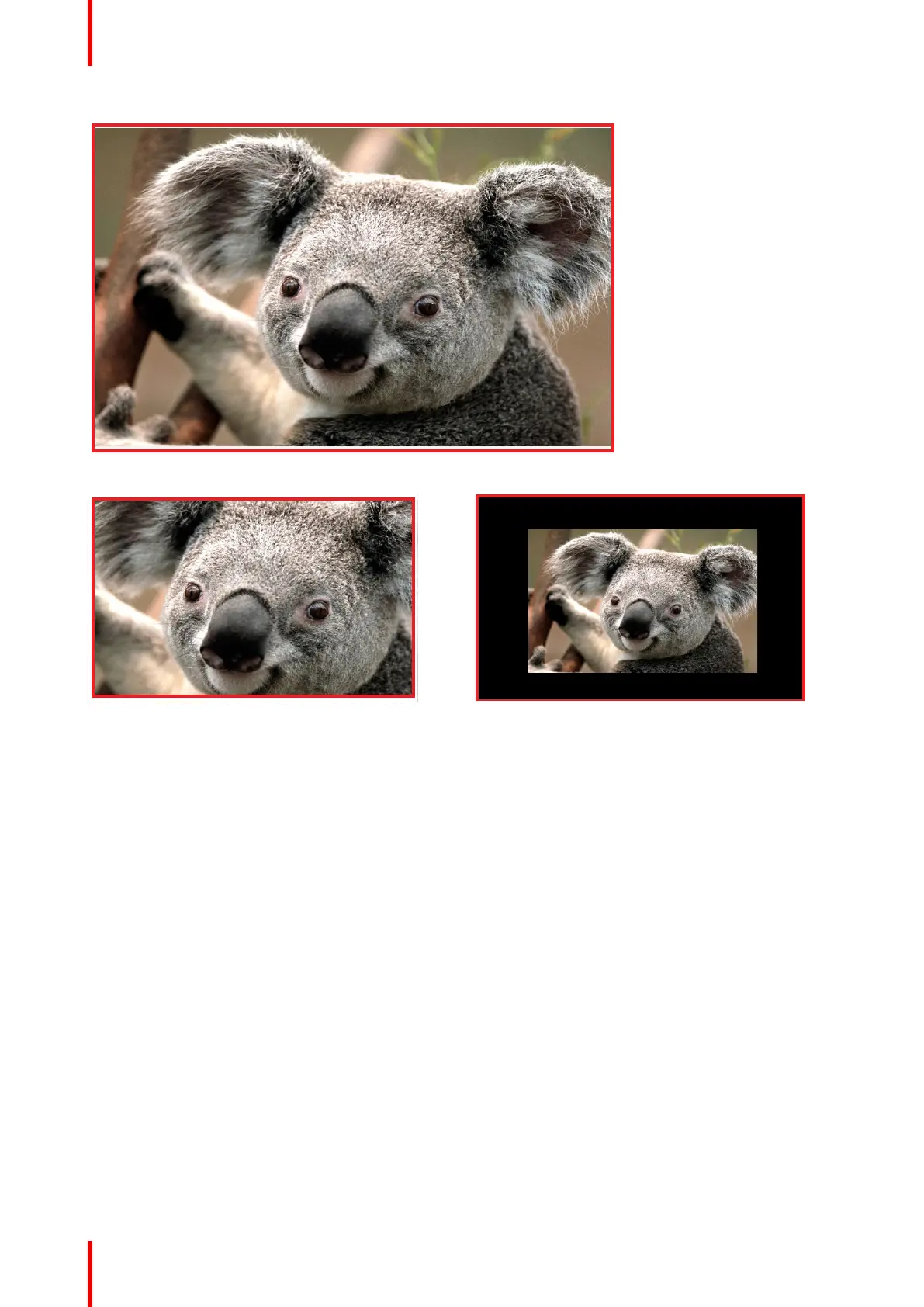

Image 7–16 Originally picture, not digitally zoomed
Image 7–17 Picture digitally zoomed in Image 7–18 Picture digitally zoomed out
The effect of digital shift
This function will shift the picture digitally, meaning that the picture will be moved in any direction. As a result,
some parts of the picture might be shifted outside the DMD range.
For an example, see the following pictures. The red lines in the figures represent the DMD outline
GUI – Image
