R5906852 /09 F8072

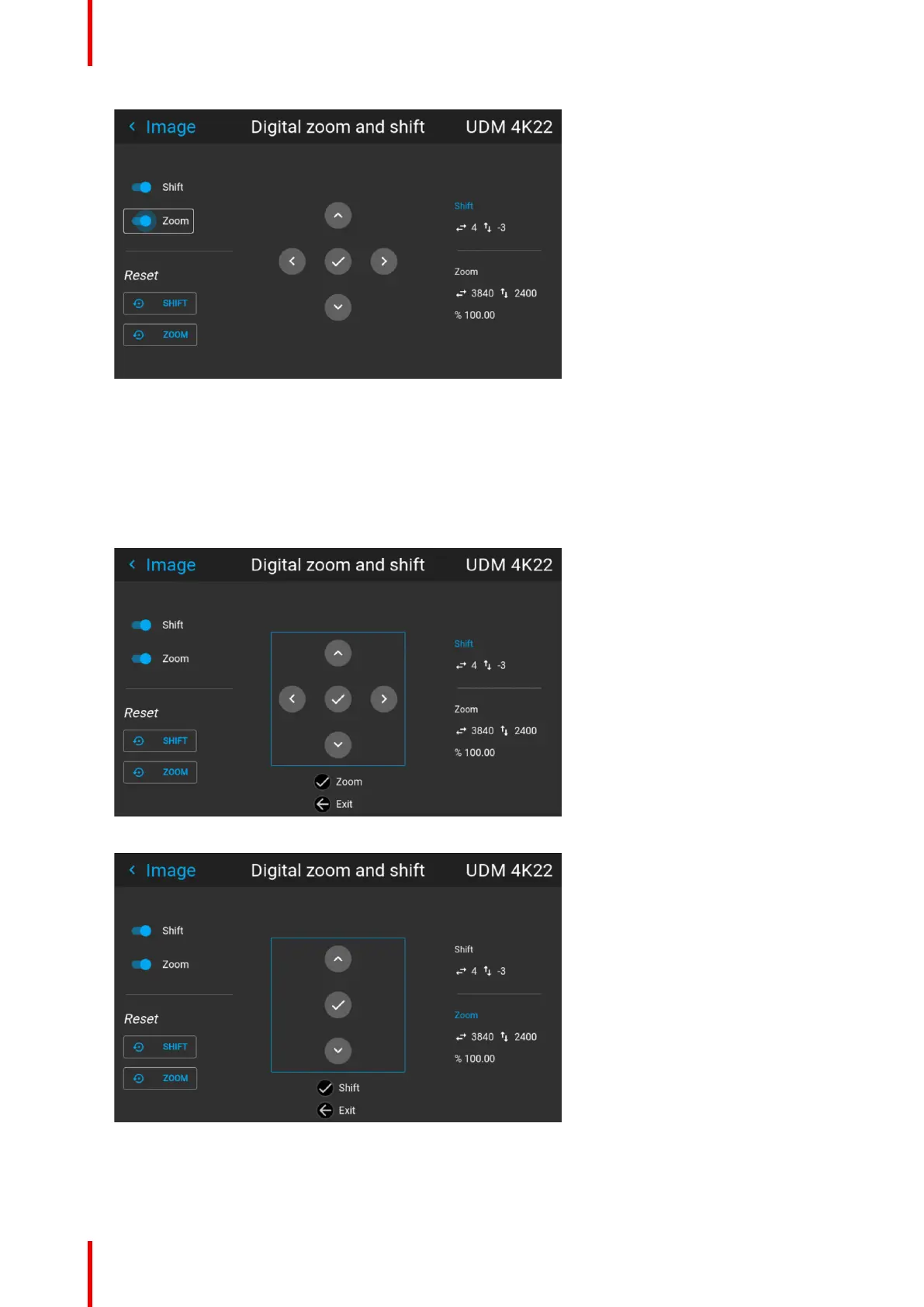

Image 7–23 Example of the digital zoom and shift menu
2. In order to optimize the digital zoom, enable the Zoom slider. In order to optimize the digital shift, enable
the Shift slider.
3. When one or both of the modes are enabled, use the arrow keys to select the mini-keypad in this menu.
Use the enter key to activate this mini-keypad.
If digital shift is enabled, the keypad will transform into the keypad for digital shift. If only digital zoom is
active, it will automatically transform in they keypad for digital zoom.
Image 7–24 Example of the enabled digital shift mode
Image 7–25 Example of the enabled digital zoom mode
4. If digital shift is enabled, you can now do the following:
Use the or key to shift the lens (image) in horizontal direction.
