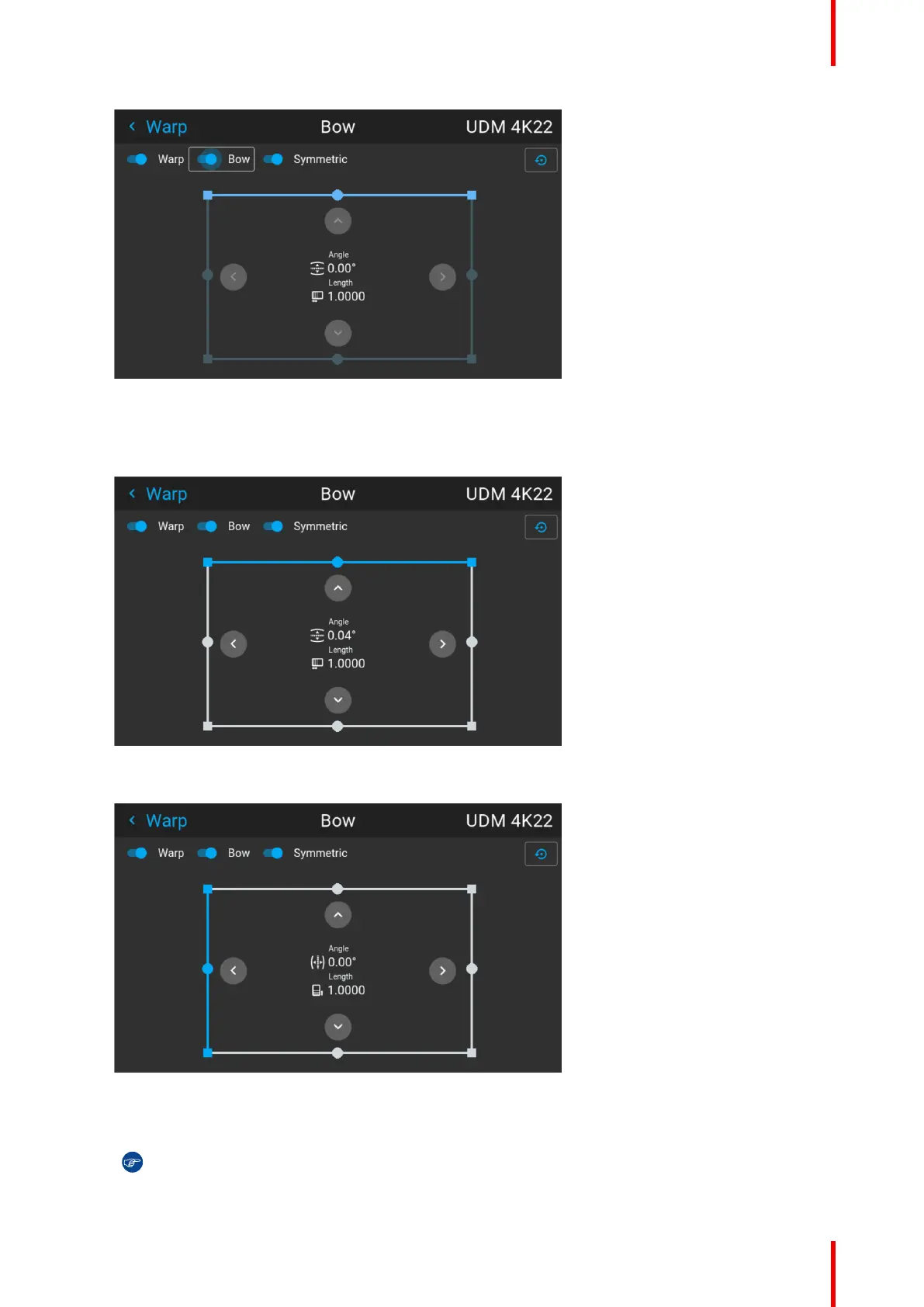

Image 8–39 Both the Bow and Symmetric sliders are set to on
4. Use the arrow keys to select the helping lines that represent the picture and confirm.
The helping lines that represent the projected picture are now colored blue, while the others are colored
white.
Image 8–40 The upper line is colored blue, the other sides are colored white
5. Use the arrow keys to select the side of the picture that needs a correction and confirm.
Image 8–41 Symmetric bow correction
6. Use the arrow keys to adjust the angle and linearity (length) of the vectors. Press enter to confirm and
switch between angle and length.
Tip: The angle is adjusted by using the up and down arrow keys. The linearity is adjusted by using
the left and right arrow keys.
